Mag Layers USA Balance Filter - Manual (Page 2)

Low Temperature
Cofired Ceramics Series
CUTTUNG-EDGE TECHNOLOGY OF RF SOLUTION
MAG.LAYERS
BBF Series
2
Balance Band-Pass Filter 平衡式带通滤波器 平衡式带通滤波器 平衡式带通滤波器 平衡式带通滤波器
■ Application 用途
WLAN, Bluetooth, Home RF, etc.

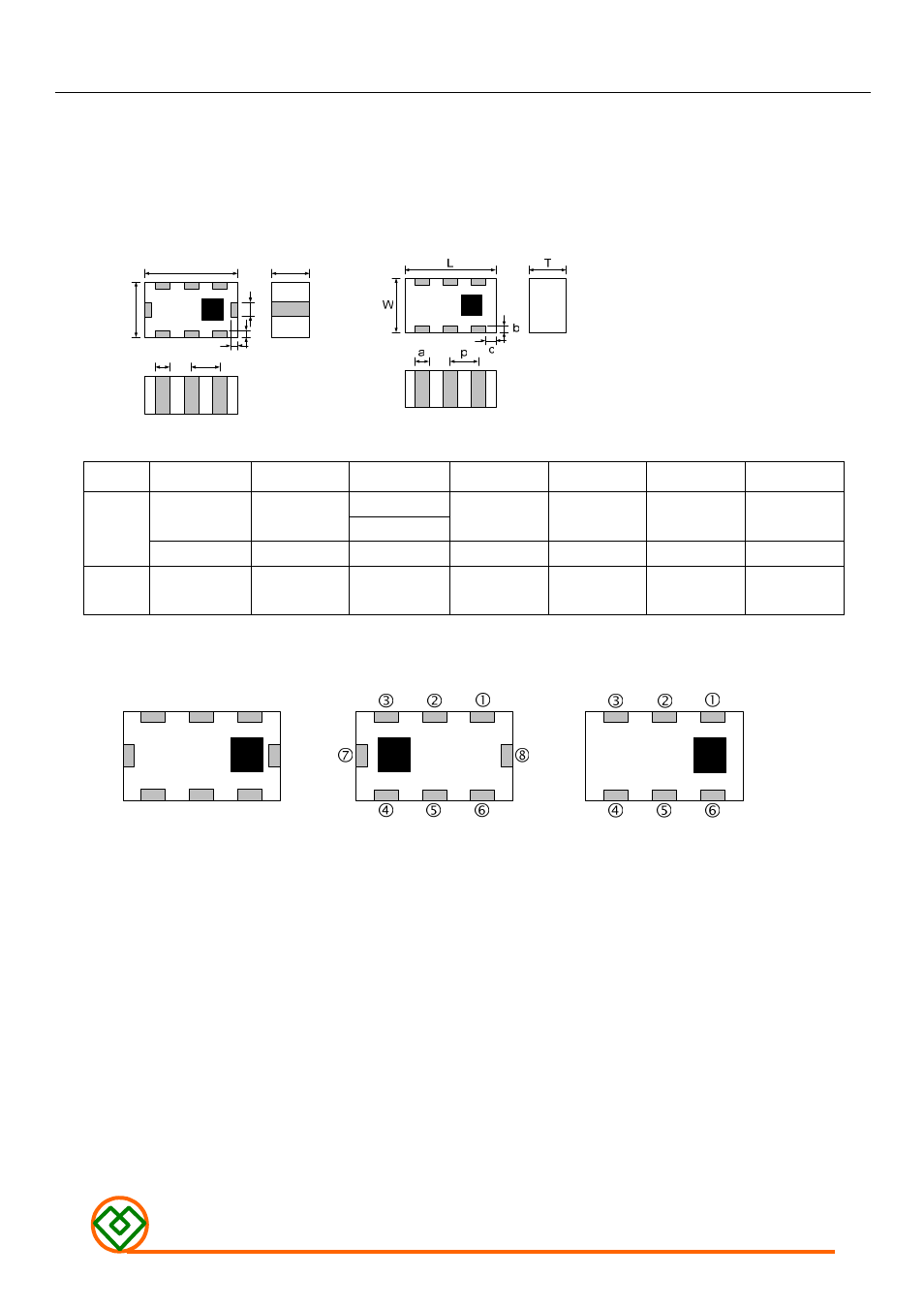

■ Figure and Dimension 外观尺寸
Figure A
L T
W
c
a p
b
c
Figure B
Unit: mm
Figure L W T a b c p
1.00±0.10
2.00±0.20 1.25±0.20
0.70±0.10
0.30+0.10
-0.15
0.30+0.10
-0.15
0.20±0.15 0.65±0.15
A
1.6.0±0.10 0.8±0.10 0.6±0.10 0.30±0.10 0.2±0.1 0.15±0.1 0.55±0.05
B 1.6 ± 0.15 0.80 ± 0.10 0.60 ± 0.10 0.3 ±0.10
0.3+0.10
-0.20
0.1 ± 0.10 0.55±0.10
■ Termination Configuration 脚位图
Figure A1 Figure A2 Figure B
Unbalance Port
DC
NC
Balance Port
GND
Balance Port
7 GND 8 GND
Unbalance Port
DC
NC
Balance Port
GND
Balance Port
7 GND 8 GND
Unbalanced Port
GND
Balance Port
Balance Port
5 GND
6 GND
