Introduction, 2 introduction, 1 rs485 details – Lenze Tmd Series Drives Modbus Communications User Manual

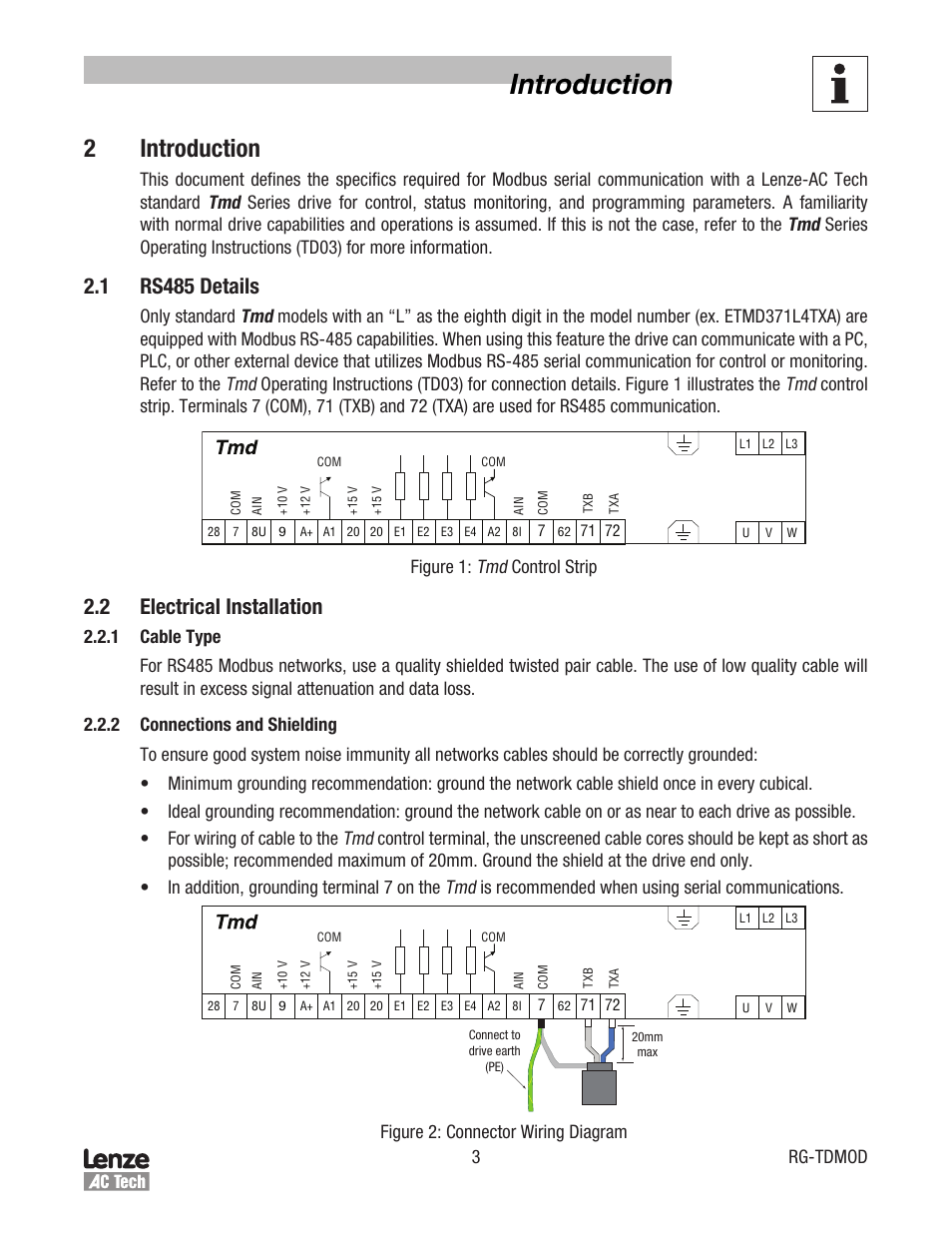

Page 7: 2 electrical installation, 3 rg-tdmod, Figure 1: tmd control strip, Figure 2: connector wiring diagram

Introduction, 2 introduction, 1 rs485 details | 2 electrical installation, 3 rg-tdmod, Figure 1: tmd control strip, Figure 2: connector wiring diagram | Lenze Tmd Series Drives Modbus Communications User Manual | Page 7 / 34 Introduction, 2 introduction, 1 rs485 details | 2 electrical installation, 3 rg-tdmod, Figure 1: tmd control strip, Figure 2: connector wiring diagram | Lenze Tmd Series Drives Modbus Communications User Manual | Page 7 / 34
