Mechanical installation
Attaching operating unit
3
61 EDBPM-H515 DE/EN/FR 2.0
3 Mechanical installation

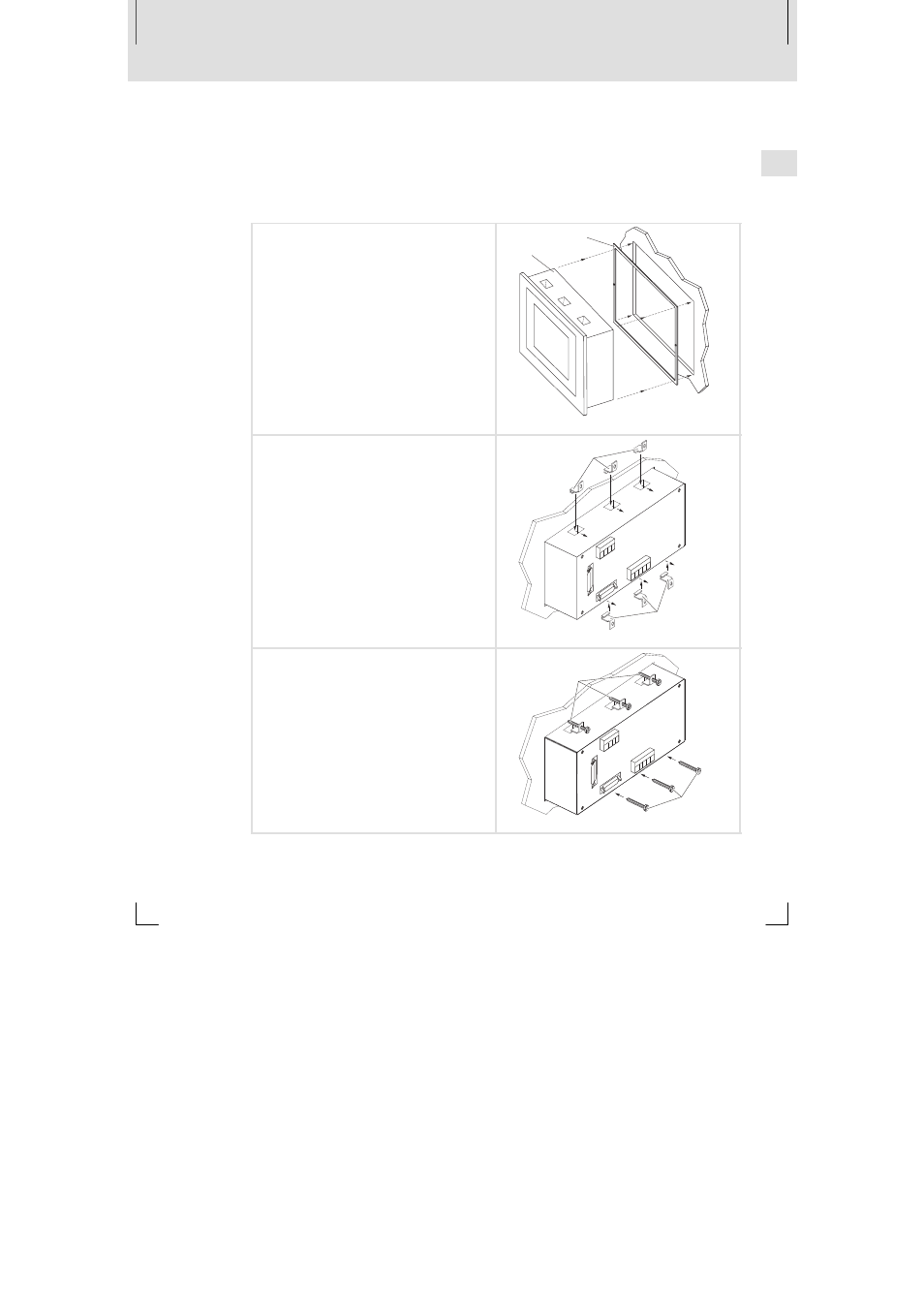

3.1 Attaching operating unit
The dimensions for the mounting cutout can be found in the ”Technical data”
(Q 60).
1. Insert operating unit with gasket into the
mounting cutout.
1
0
H515_005
2. Insert mounting clamps into the slots at the
operating unit.
Input
Vo ltage
18-32
VDC
15 W
FUSE
1,25
A
N.C. CAN+ Shield CAN- V-
1 2 3 4 5
1 2 3 4
2
2
h515_006
3. Tighten the screws against the mounting
board.
Inpu
t V olta ge 18 -32
VD C 1 5 W
FU SE 1,2 5 A
N.C. CAN+ Shield CAN- V-
1 2 3 4 5
1 2 3 4
3
3
h515_007
