Mechanical installation
Mounting with thermal separation (push−through technique)
Mounting steps
4
l
99 EDKCSDX064 DE/EN/FR 3.0
4.2.2 Mounting steps
How to mount the axis module:
1. Prepare the fixing holes for the wire clamps on the mounting area.
For this purpose, apply a drilling jig.
2. Prepare the mounting cutout.
The edges of the mounting cutout and the fixing holes for the wire clamps
have to be slightly arched inwardly (to the axis module).
3. Apply liquid thread sealant to the threads of the screws for the wire
clamps.
4. Fix the wire clamps together with the functional earth conductor supplied
(Fig. 4−3).
The functional earth conductor is part of the scope of supply of the ECSDx...
axis module
5. Push the axis module into the mounting cutout.
6. Engage axis module in the wire clamp at the top and the bottom.
7. Connect the functional earth conductor to the axis module (Fig. 4−3).
)
Note!
Fixing the functional earth conductor to the ECSDx... axis module is
required for a better electromagnetic compatibility (EMC).
ECSXA081

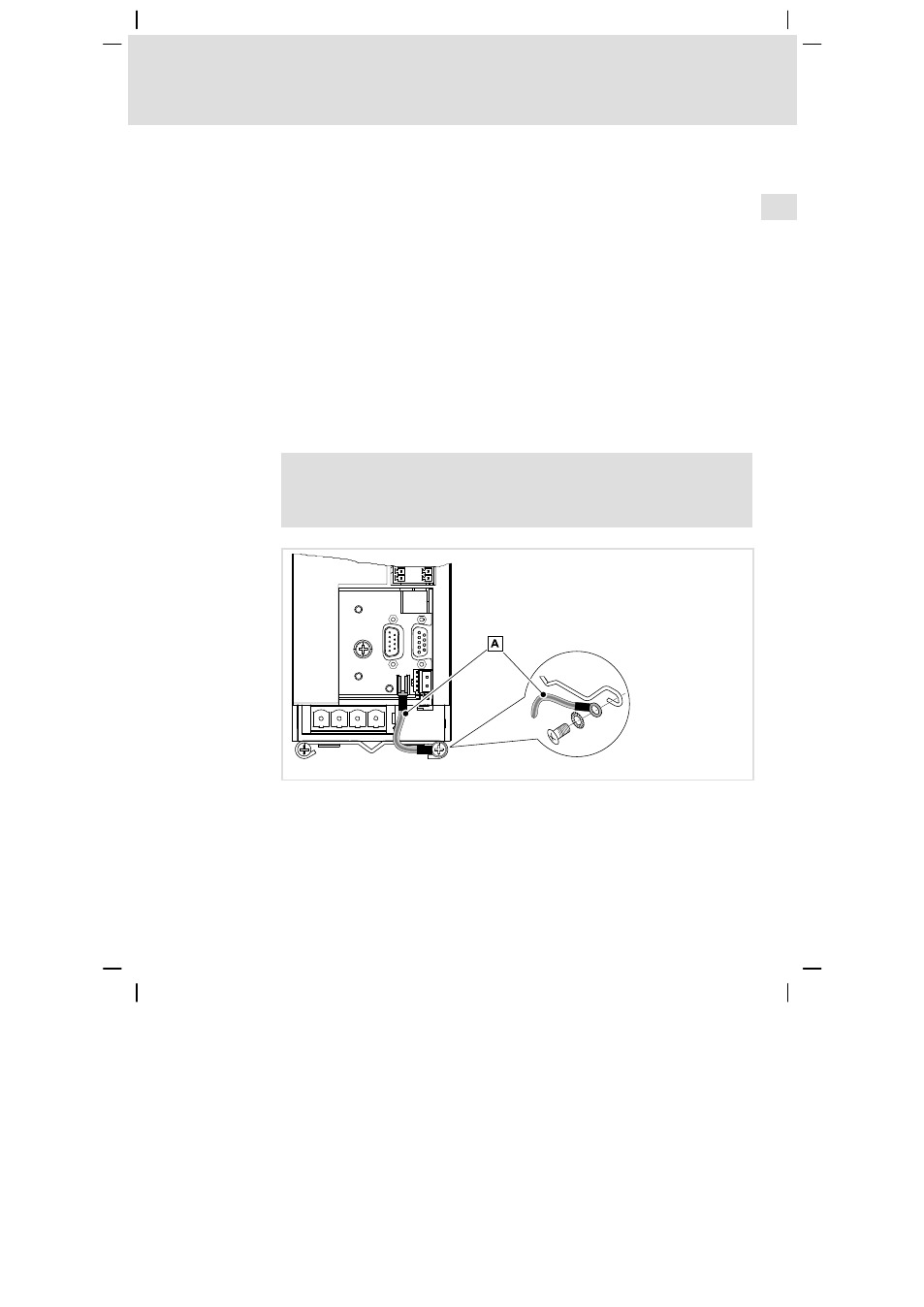

Fig. 4−3 Functional earth conductor at the ECSDx... axis module
0 Functional earth conductor
