Mechanical installation
Mounting with thermal separation (push−through technique)
Dimensions
4
l
97 EDKCSDX064 DE/EN/FR 3.0
4.2.1 Dimensions
)
Note!
Mounting with ECSZS000X0B shield mounting kit:
ƒ Mounting clearance below the module > 195 mm
Z
c1 c1
h h
a1
e e1 a
g
g
g
d b
g
a
d b
b1 b1
³
65
mm
³
65
mm
a1
Z
0 1
ECSXA007

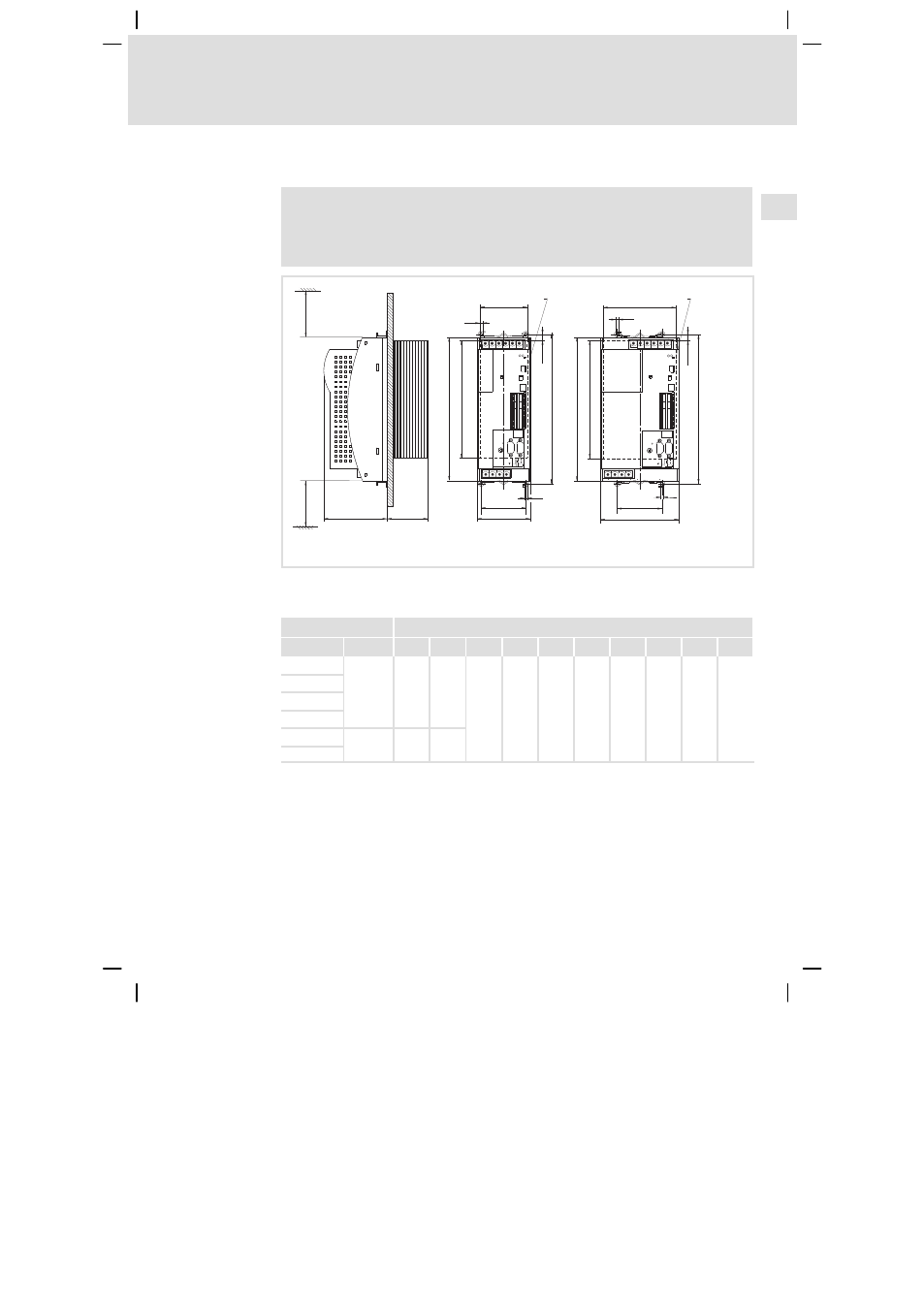

Fig. 4−1 Dimensions for "push−through design"
Z Mounting cutout (a1 x b1), ^ 98
Axis module Dimensions [mm]
Type Size a a1 b b1 c1 d e e1 g h
ECSD L004
0 88.5 78.5
240 197 75 250
109
145 1)
67 M5 10.5
ECSD L008
ECSD L016
ECSD L032
ECSD L048
1 131 121.5
ECSD L064
1) Max. 145 mm, depending on the plugged−on communication module
L Application software: S = Speed & Torque P = Posi & Shaft
M = Motion A = Application
