73 EDKCSDX064 DE/EN/FR 3.0
Status displays
LED Operating state Check
Red Green
Off On Controller enabled, no fault
Off Blinking Controller inhibited (CINH), switch−on inhibit Code C0183
Blinking Off Fault/error (TRIP) active Code C0168/1
Blinking On Warning/FAIL−QSP active Code C0168/1

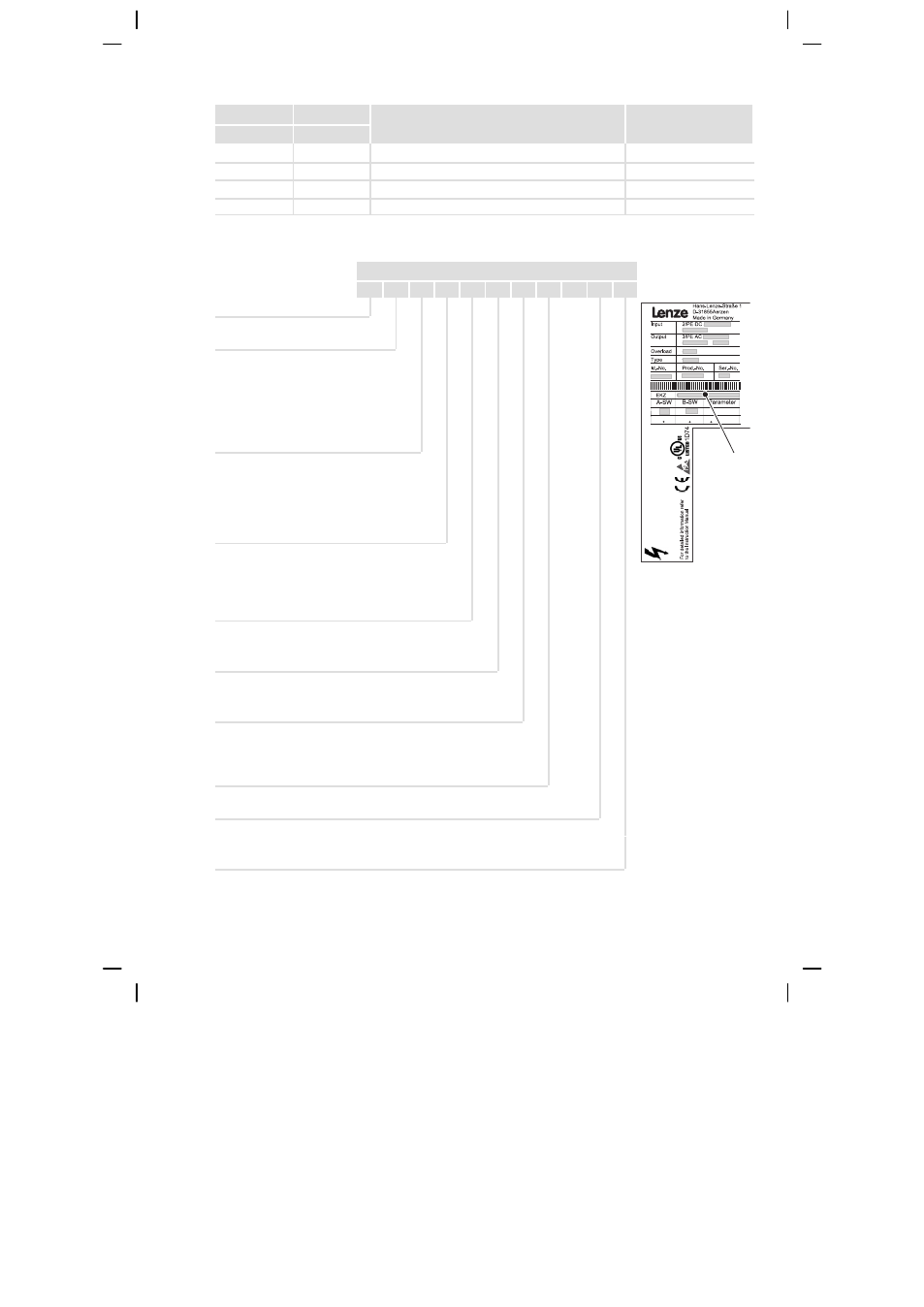

Identification

ECS D x xxx C 4 x xxx XX xx xx
Device type
ATTENTION
L ´appareil est sous tension pendant 180s après la coupure de la tension réseau
W
ARNING
Device is live up to 180s after removing mains voltage

Design
E = standard panel−mounted unit,
IP20
D = push−through technique
(thermally separated)
C = cold−plate technique
Application
S = "Speed and Torque"
P = "Posi and Shaft"
M = "Motion"
A = "Application"
Peak current
004 = 4 A
008 = 8 A
016 = 16 A 032 = 32 A
048 = 48 A
064 = 64 A
Fieldbus interface
C = system bus CAN
Voltage class
4 = 400 V/500 V
Technical version
B = standard
V = coated I = for IT systems, uncoated
K= for IT systems, coated
Variant
Hardware version
1A or higher
Operating software version (B−SW)
