Electrical installation
Control terminals
Digital inputs and outputs
l
117
EDKCSDX064 DE/EN/FR 3.0
5.3.1
Digital inputs and outputs
(
Stop!
If an inductive load is connected to X6/DO1, a spark suppressor with
a limiting function to max. 50 V
± 0 % must be provided.
DI1 DI2 DI3 DI4
47k
GNDext
3k3
3k3
3k3
3k3
GND
DO1
X6
1.5
A
1k
+
_
24 VDC =
+24
"
"
ECSXA014

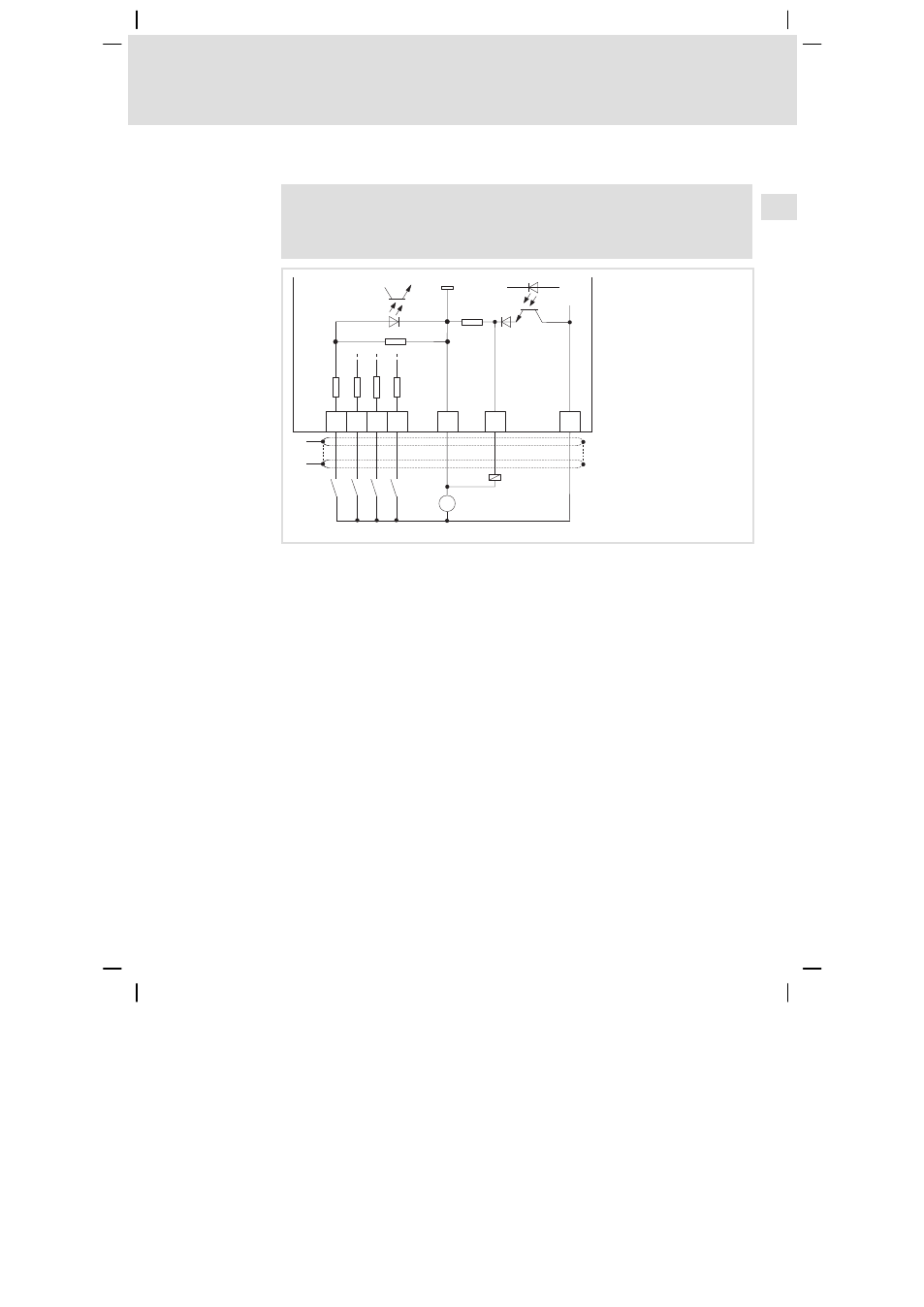

Fig. 5−7
Digital inputs and outputs at X6
"
HF−shield termination by large−surface connection to functional earth (see
Mounting Instructions for ECSZS000X0B shield mounting kit)
