Electrical installation
Controller mains connection for a mains voltage of 400 V
Final works
5
l
86 EDKVF9383 DE/EN/FR 4.0
5.3 Controller mains connection for a mains voltage of 400 V
(
Stop!
The user is responsible for sufficient strain relief!
ƒ Both, the master and the slave must be supplied!
BR2 BR2 BR1 BR1
PE PE
U U V V W W L1 L1 L2 L2 L3 L3
PE PE
L1, L2,
L3
L1, L2,
L3
25-30 Nm 25-30 Nm
M8 M8
221-264 lb-in 221-264 lb-in
PE PE 15-20 Nm 15-20 Nm
M6 M6
133-176 lb-in 133-176 lb-in
40 mm 40 mm
0 1
9300VEC013

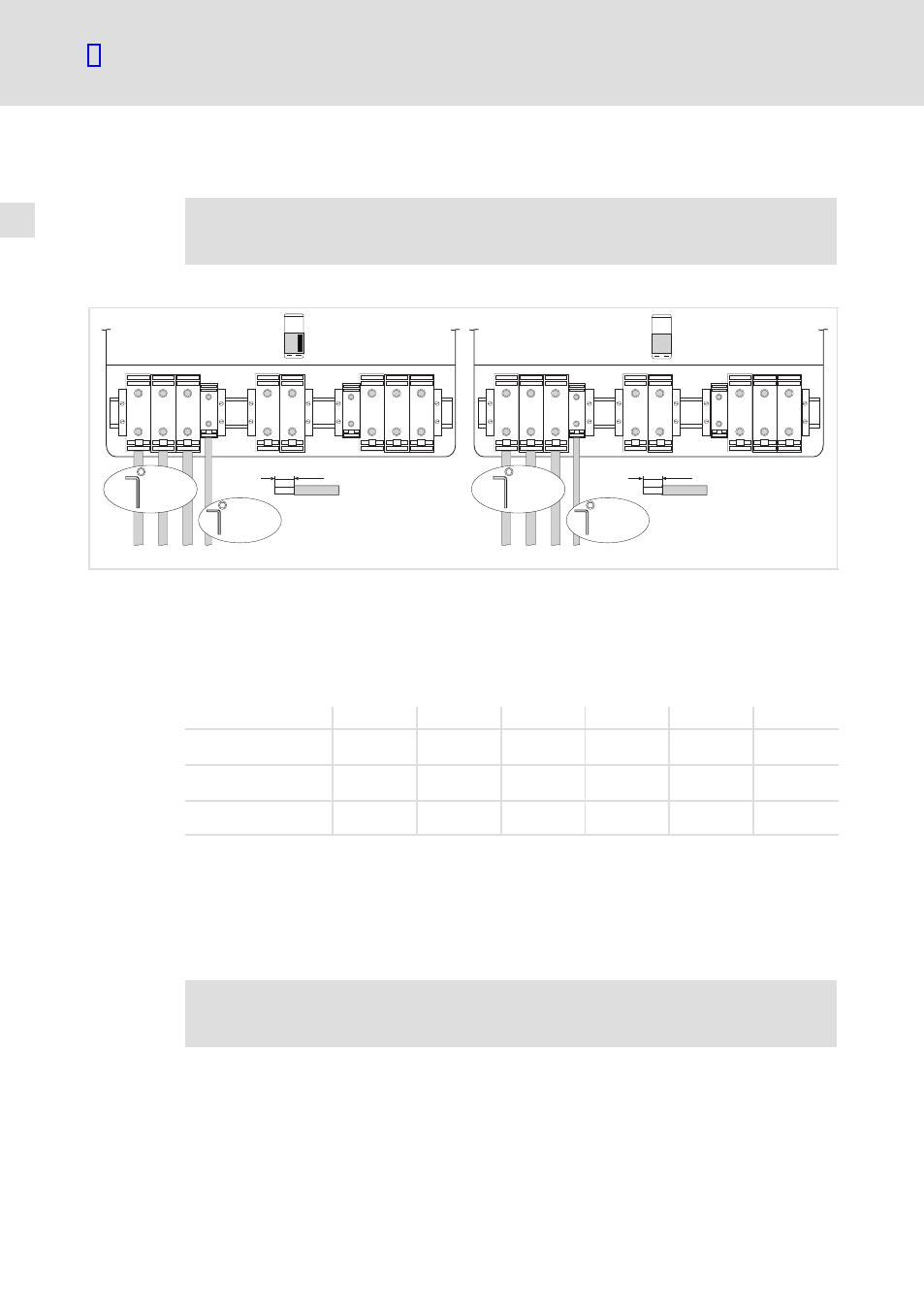

Fig. 5−7 Mains connection example
BR1, BR2 Brake resistor can only be operated with the variants V060 and V110
For connection see System Manual of 9300 vector
0 Master terminals
1 Slave terminals
Fuses and cable cross−sections for the mains supply
Master Slave Master Slave Master Slave
EVF9381−EV
EVF9381−EVVxxx
315 315
150
2 Ч 50 1)
150
2 Ч 50 1)
95 95
EVF9382−EV
EVF9382−EVVxxx
315 315
150
2 Ч 50 1)
150
2 Ч 50 1)
95 95
EVF9383−EV
EVF9383−EVVxxx
400 400
240
2 Ч 95 1)
240
2 Ч 95 1)
150 150
1) Multiple conductor; both conductors must have the same cross−section
2) Lenze recommends to use fuses of the gRL utilisation category
Observe the national and regional legislation
5.4 Supply and fan connection at the controller for a mains voltage of 400 V/500V
(
Stop!
The user is responsible for sufficient strain relief!
