Mechanical installation

Mounting steps

EDKZN3A150−002 DE/EN/FR 3.1

Mounting variant

EZN−023

How to mount the filter:

1. Read the chapter "Mechanical installation" in the documentation of the basic

device. Read up particularly on ...
– Precautionary measures while mounting
– Bore spacings and free spaces
– Hitching points of transport eye bolts on the standard device

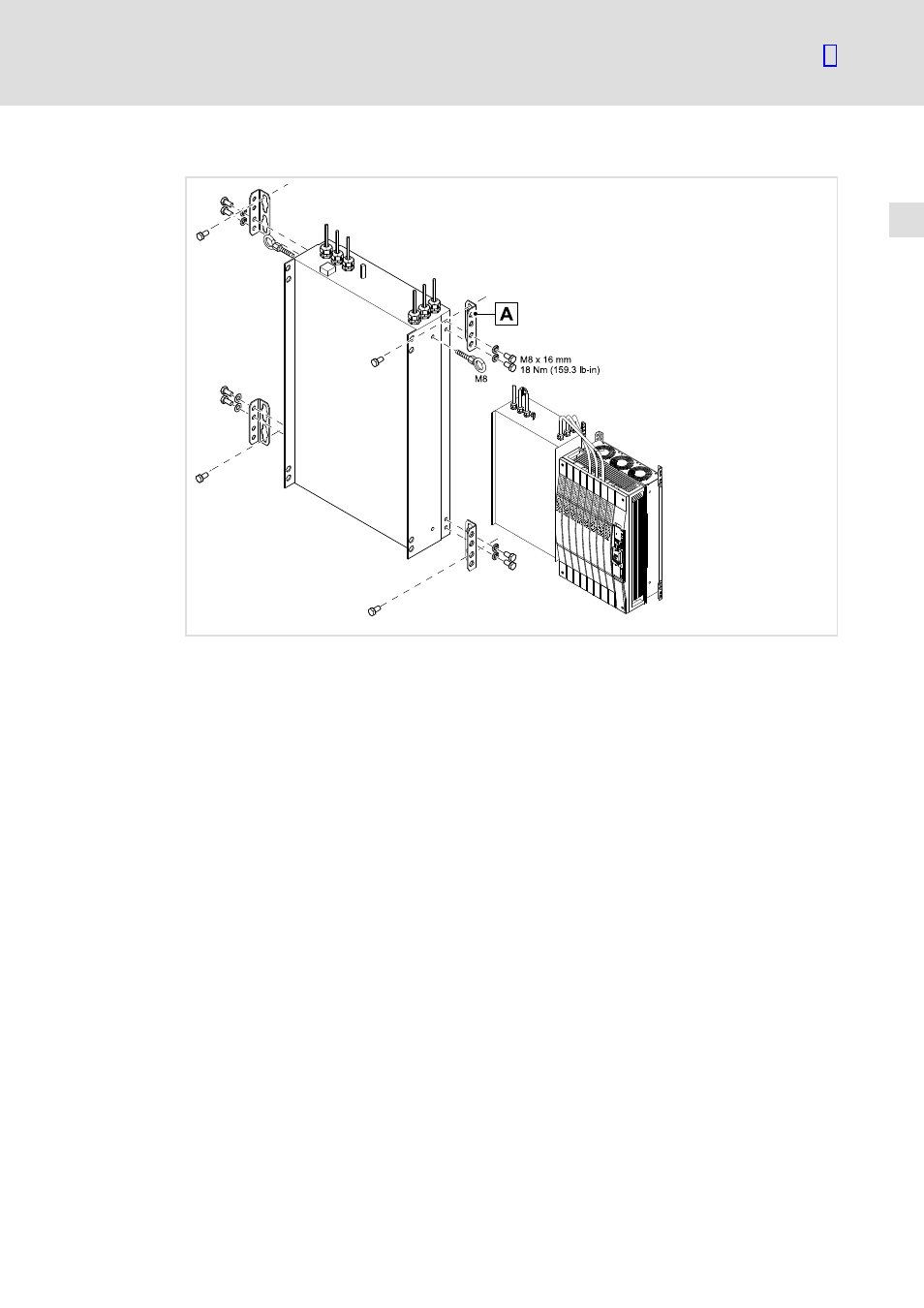

2. Mount four fixing brackets

0 with two screws and spring washers each to the filter

(filter scope of supply).
– Observe tightening torque.

3. Prepare the mounting plate as shown in the drilling pattern.

4. Mount the eye bolts for the limit stop of the lifting device to the filter if this has not

been done yet.

5. Lift the filter using an appropriate lifting device and mount it to the mounting plate.
