Mechanical installation

Motor mounting

4

EDK82ZMFBC-001 DE/EN/FR 7.0

41

H1_MechINS-E82ZMFB_BusIO

4

Mechanical installation

Stop!

Mechanical stress damages the flat flexible cable of the bus-I/O function

module!
The flat flexible cable must

ƒ

not be kinked,

ƒ

not be twisted,

ƒ

not be bent tightly.

Do not pull at the flat flexible cable!

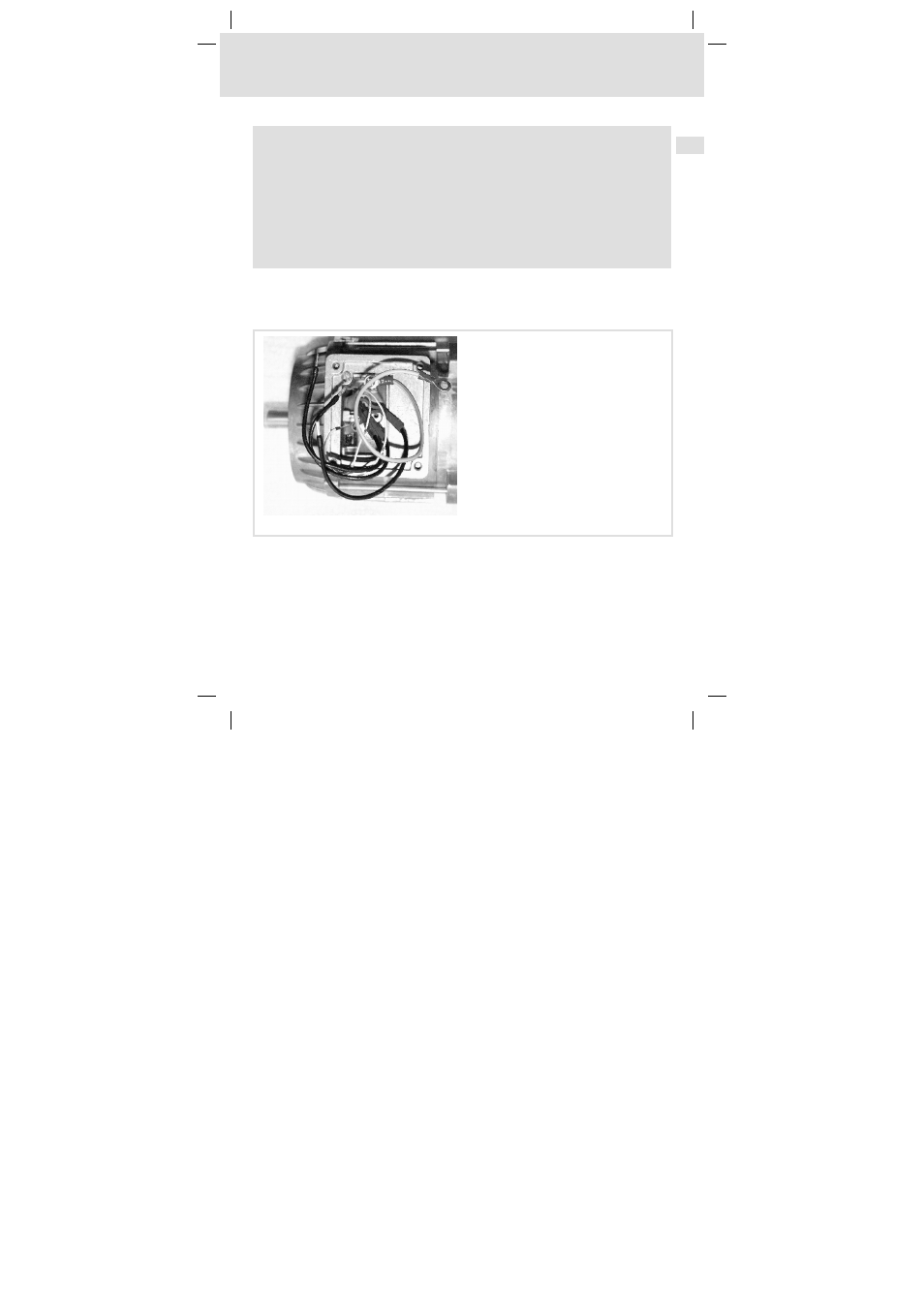

Motor mounting

Preliminary works

8200mot139

1. Dismount motor terminal box.
2. Dismount motor terminal board.
3. The motor connections must be approx. 15 cm long, if necessary, extend them.
