DG01C
13360068
4.06"
2.00"
GND
4.6"
FRONT
VIEW
3.1" 3.1"
SIDE VIEW

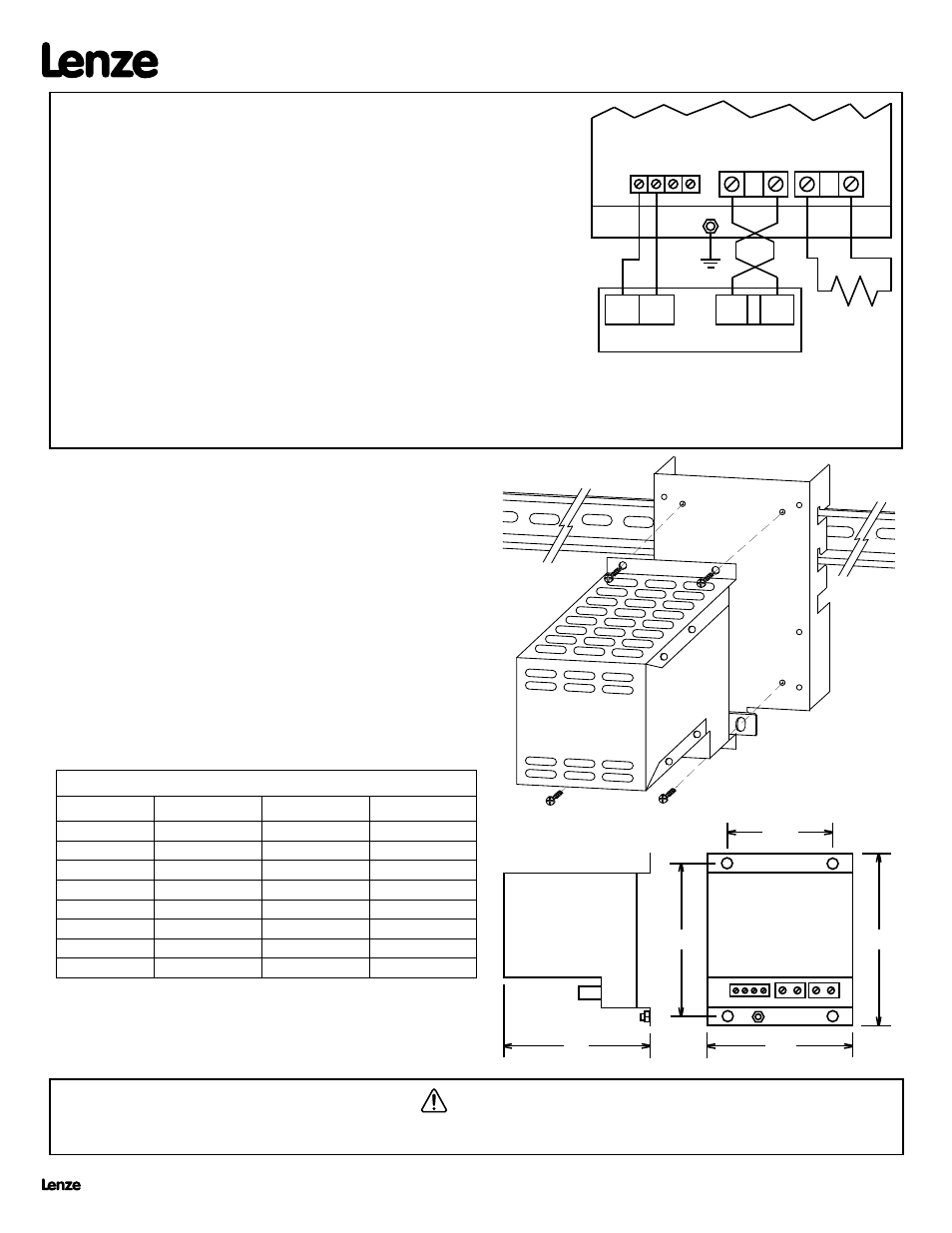

MOUNTING THE DYNAMIC BRAKING MODULE
The diagram to the right illustrates how to mount the DB Module. The DB
Module is compatible with the DIN Rail Mounting Kit option, or can simply be
mounted to a flat surface such as an electrical panel.
NOTE: DO NOT mount the resistors below the drive! The resistors generate
heat, and must be mounted above or to the side of the drive.
DIN RAIL
BRACKET
DB MODULE
WARNING!
Hazard of electric shock! External resistors are connected to the drive's DC bus, which can reach 950 VDC. Connections to external resistors must be
electrically insulated and mechanically shielded for safety. High Voltage warning signs are also recommended.
EXTERNAL RESISTER ASSEMBLIES
HP 240/200 Vac 480/400 Vac 590/480 Vac
0.25 - 0.5 841-001 841-002 N/A
1 - 1.5 841-002 841-002 841-001
2 841-003 841-003 841-002
3 841-005 841-005 841-004
5 841-006 841-006 841-005
7.5 - 10 841-007 841-007 841-008
15 - 20 841-009 841-009 841-010
25 - 30 N/A 841-011 841-012
NOTE: These resistor assemblies are the same as those used with the MC
Series drives.
The DB Module does not include short-circuit protection for the
external resistors. If short-circuit protection is desired, fusing must be supplied
by the customer. Consult Lenze AC Tech.
EXTERNAL
RESISTORS
(SEE NOTE 3)
42 46 47 43
DB OPTION MODULE
14
GND
B - B + R + R -
B - B +
TCF DRIVE
11
NOTE 2: Use minimum 14 AWG wire for connections to B+, B-, R+, and R-. Tighten the DB module terminals to a torque of 2 lb-in (0.2 Nm), and
tighten the drive terminals to 4.5 lb-in (0.5 Nm). The B+ and B- wires MUST be twisted together and must be less than 12 inches long.
Twisting the R+ and R- wires is also recommended.
NOTE 3: External resistors (see selection chart below) are required when using Dynamic Braking modules 845-200, 845-400, and 845-500. Only AC
Tech supplied resistors are approved for use with 845 dynamic braking modules.
TCF SERIES DRIVES
PROGRAMMING
1. Set Parameter 06 (TB-14 OUTPUT) to DB BRAKE (11).
WIRING
The diagram to the right illustrates how the DB module is wired to the TCF
drive.
Refer to important wiring NOTES herein.
NOTE 1: Use 18 AWG wire for control connections. Tighten DB module and drive
control terminals to a torque of 2 lb-in (0.2 Nm). Overtorque of terminals
can result in damage.
SELECTING EXTERNAL RESISTORS
Use the chart below to select the proper external resistor assembly:
