Commissioning
Setting the baud rate and address
5
EDK82ZAFVC001 DE/EN/FR 2.0 51
l
H1inbet−reihenfolge einhalten
Setting the baud rate and address
Node address setting
)
Note!
The device address must be set via software, when the switches S7 and S8 are
in ON position.
In this case the switches S1 to S6 are ineffective.
ON
1 6 2 7 4 3 8 5 9 10
ON
OFF

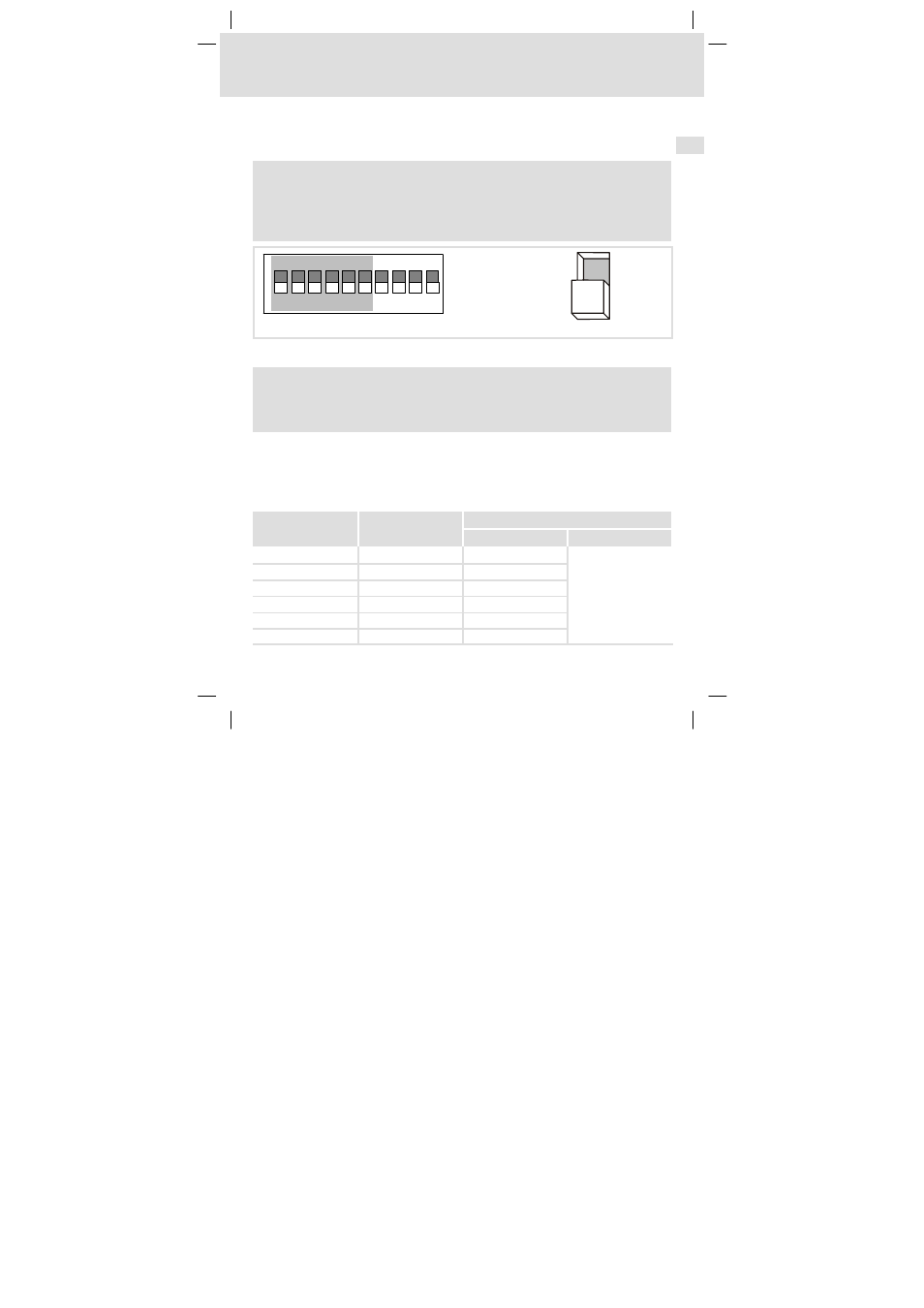

Fig. 2 Address assignment via DIP switch
)
Note!
If several controllers are connected to the network, the node addresses must
differ from each other.
The address (decimal number) is calculated by inserting the positions of switches S1 to S6
(’0’ = OFF and ’1’ = ON) into the following equation.
Address dec = S6 · 2 0 + S5 · 2 1 + S4 · 2 2 + S3 · 2 3 + S2 · 2 4 + S1 · 2 5
The equation can also be used to calculate the valency of a switch. The sum of valencies
results in the node address to be set:
Switch Valency
Example
Switch position Node address
S1 32 ON
32 + 16+ 8 = 56
S2 16 ON
S3 8 ON
S4 4 OFF
S5 2 OFF
S6 1 OFF
