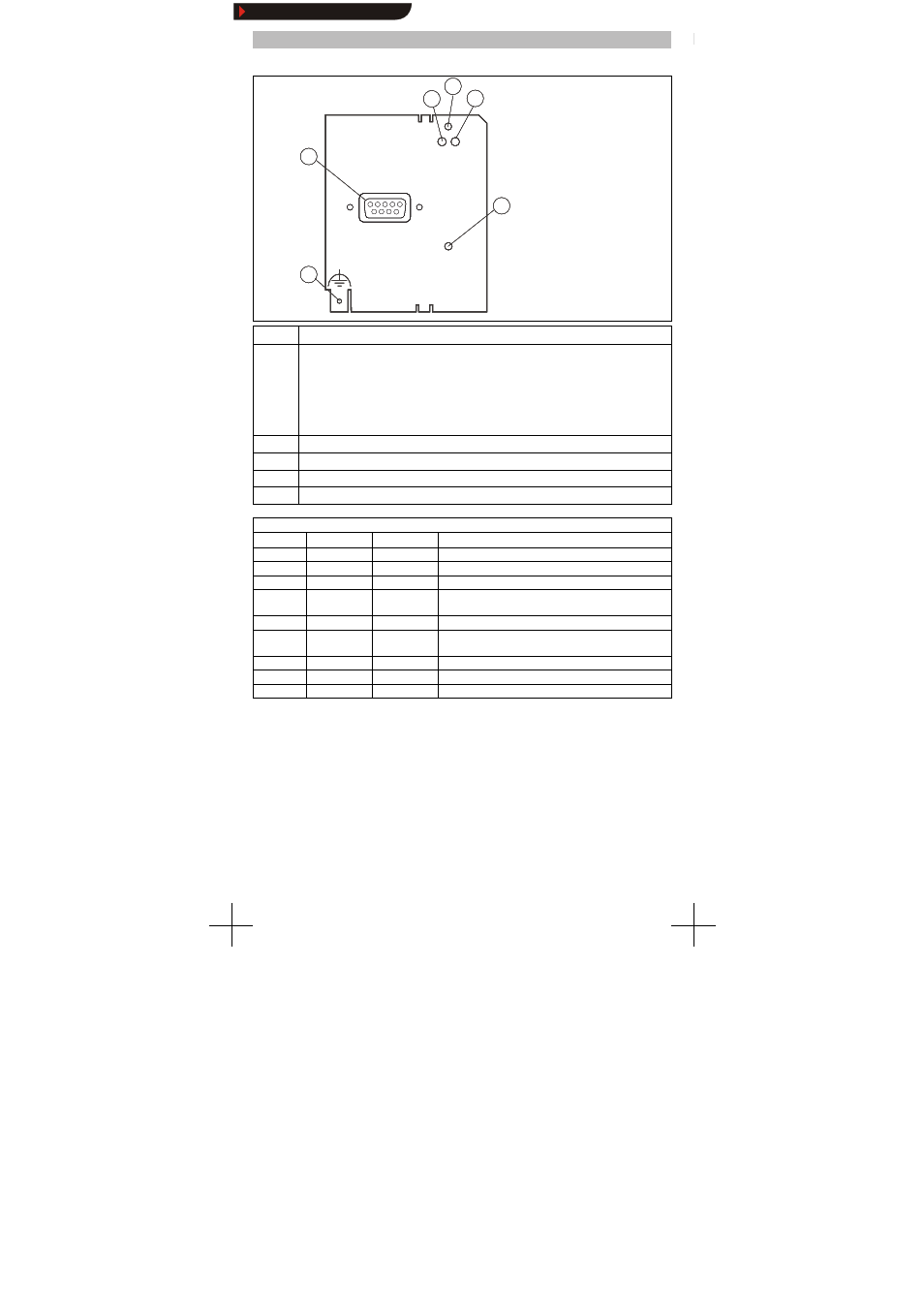

Front view
MA2103FPI 1.0
- 2 -
FP-Interface
RS232
L
2103
1
2
3
4
5
6
FP-Interface
RS232
L
2103
1
2
3
4
5
6
FP-Interface
RS232
L
2103
1
2
3
4
5
6
FP-Interface
RS232
L
2103
1
2
3
4
5
6
2103FPIxx
FP-Interface
RS232
L
2103
1
2
3
4
5
6
Pos.
Name/meaning
1
green LED for the voltage supply of the 2103 communication module
ON:
The 2103 communication module is supplied with voltage and connected to the controller
or Drive PLC
OFF:
The 2103 communication module is not supplied with voltage.
Controller/Drive PLC or external voltage supply is switched off.
2, 3
green and red Drive-LEDs (DRIVE)
4
9-pole SubD connector for RS232 interface
5
Fixing screw for the 2103 communication module
6
Connection for additional shielded PE cable
9-pole SubD connector for RS232 interface
Pin
Name
Input/output
Explanation
1
-
-
not assigned
2
RxD
Input
Cable for receiving data RS232
3
TxD
Output
Cable for sending data RS232
4
DTR
Output
The DTR signal (output) is not assigned to a certain
function (+ 7V permanently, logical 0)
5
GND
-
Reference potential
6
DSR
Input
The DSR signal (input) is not assigned to a certain func-
tion
7
-
-
not assigned
8
-
-
not assigned
9
+ 5V
-
Max. output current: 50 mA
