Wiring the device
Power terminals
5

91 EDK94SH366 DE/EN/FR/ES/IT 3.1
Device sizes 8 and 9
SSP94KL801

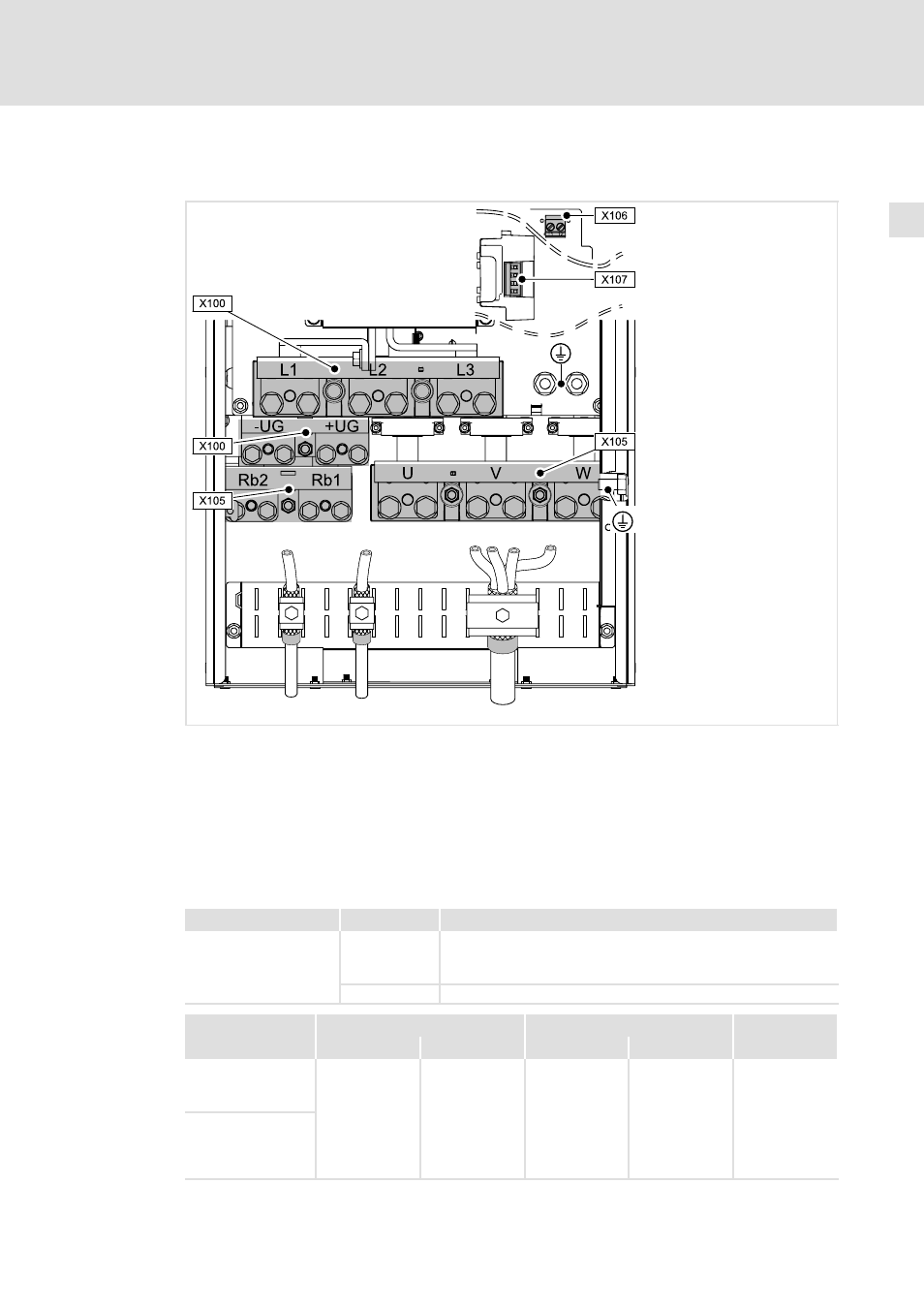

Fig.5-2 Arrangement of the power connections

Tip!
The barrier between mains input and power terminals can be dismounted to
have more free space for wiring.
Motor
Terminal X105 Marking Description
Connection with ring
cable lug for M10
U
V
W
Connection of the motor phases
SSP94KL801
 Connection for the PE conductor on the motor side
Terminal data Max. conductor cross-section Tightening torque Screw drive
[mm 2 ] [AWG] [Nm] [lb-in]
Device size 8:
E94ASxE1724
E94ASxE2024
2 x 240 2 x 500 mcm 19 168 WAF 16 Device size 9:
E94ASxE2454
E94ASxE2924
E94ASxE3664
