Product description
Connection data
l
25
EDK94AZCDM DE/EN/FR/ES/IT 1.0
3.4

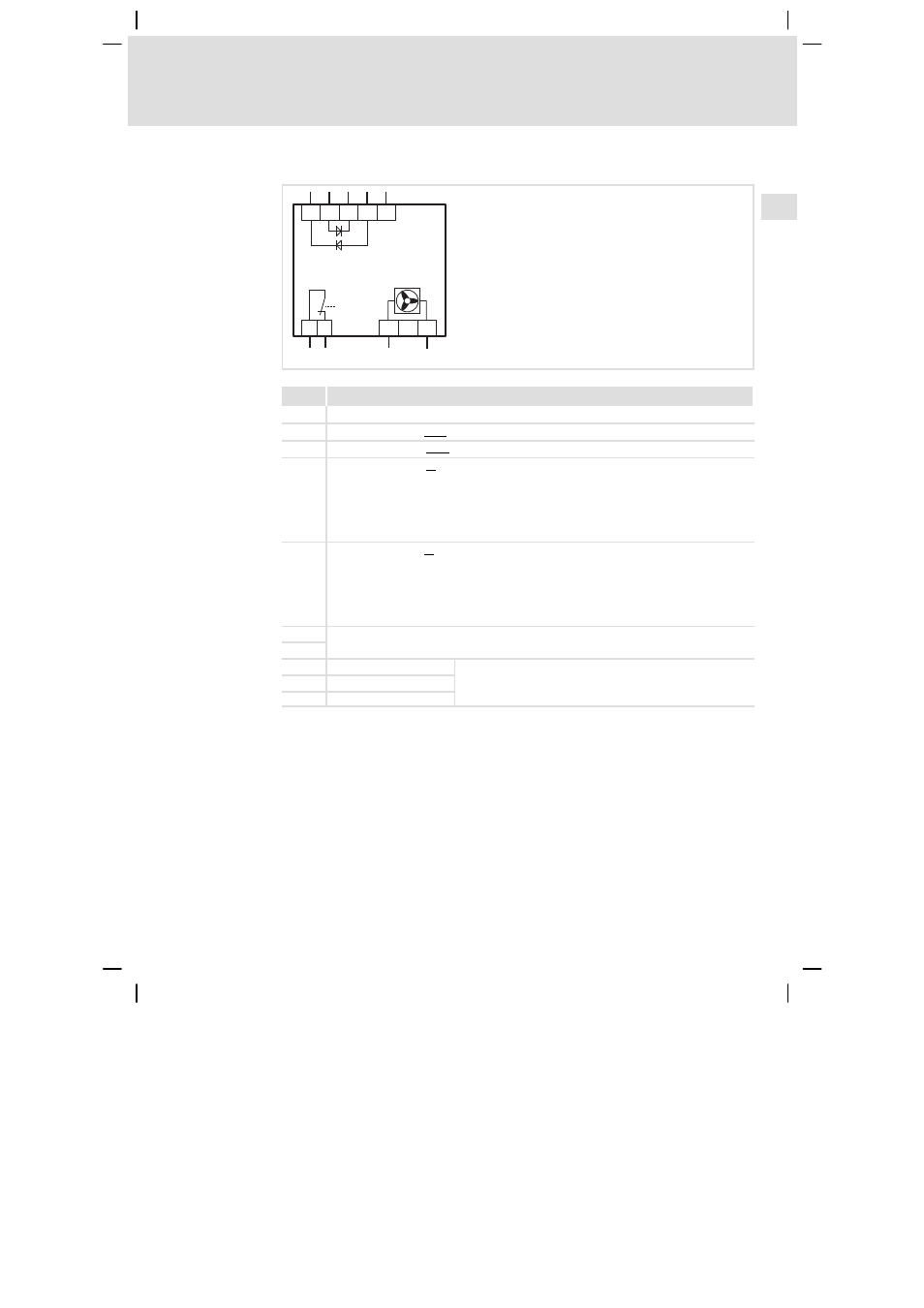

Connection data
E94AZCDMxxx
5
4
-A2
+K1
3
+A1
-K2
1 2
J
+
E94AZCDM002
Pos.
Description
+
PE connection
−K2
DC−bus voltage −UG from servo inverter 9400 (E94ASxE0864 ... E94ASxE6954)
+A1
DC−bus voltage +UG from servo inverter 9400 (E94ASxE0864 ... E94ASxE6954)
+K1
DC−bus voltage +UG to
servo inverter 9400:
l
E94ASxE0024 ... E94ASxE0594
l
E94AMxE0024 ... E94AMxE0594
l
E94APxE0024 ... E94APxE0594
l
E94ARxE0024 ... E94ARxE0594
−A2
DC−bus voltage −UG to
servo inverter 9400:
l
E94ASxE0024 ... E94ASxE0594
l
E94AMxE0024 ... E94AMxE0594
l
E94APxE0024 ... E94APxE0594
l
E94ARxE0024 ... E94ARxE0594
1
Thermal switch (opens at 90 °C)
2
3
24 V fan connection
Only available with E94AZCDM100 diode module
5
GND
4
not assigned
