Electrical installation 3
7 BA 12.0031 EN 2.1
3 Electrical installation
Danger!
The safety instructions in Chapter 1 must be observed!
Power supply connection
The motor is connected to the motor terminal board in the following structure according
to the terminal connection diagram affixed inside the terminal box. Ensure that the screw
connections are secure.
1
2
3
4
5
6
7

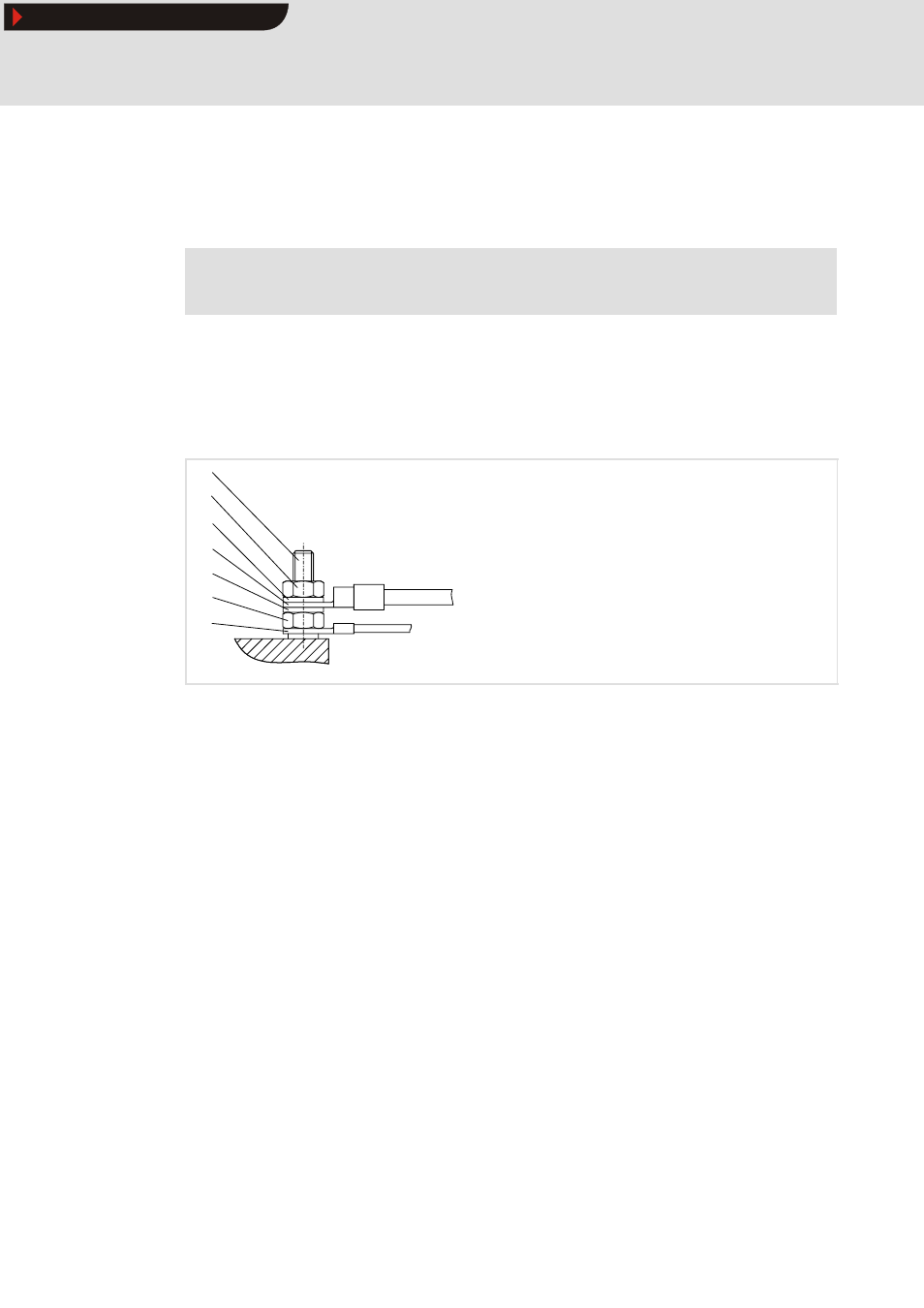

Fig. 1 Terminal stud of motor terminal board
1
Winding connection
2 Hexagon nut
3 Washer
4 Motor connection cable lug / power supply
5 Washer
6 Hexagon nut
7 Terminal board stud
