Mechanical installation
Dismounting
28
Lenze ¯ BA_3231C ¯ 5.0
5.4
Dismounting
}
Danger!
Hot surface during operation
The heatsink at the back of the device gets very hot during operation.
Possible consequences:
¯ Burns when touching the heatsink.
¯ Fire or smouldering fire if flammable material is placed near the
heatsink or may get to it.
Protective measures:
¯ Before working on the device, check its heatsink temperature.
¯ Select the mounting location so that the operating conditions
mentioned in the technical data are permanently guaranteed.
1
OFF
2
3
2
32xxC_007

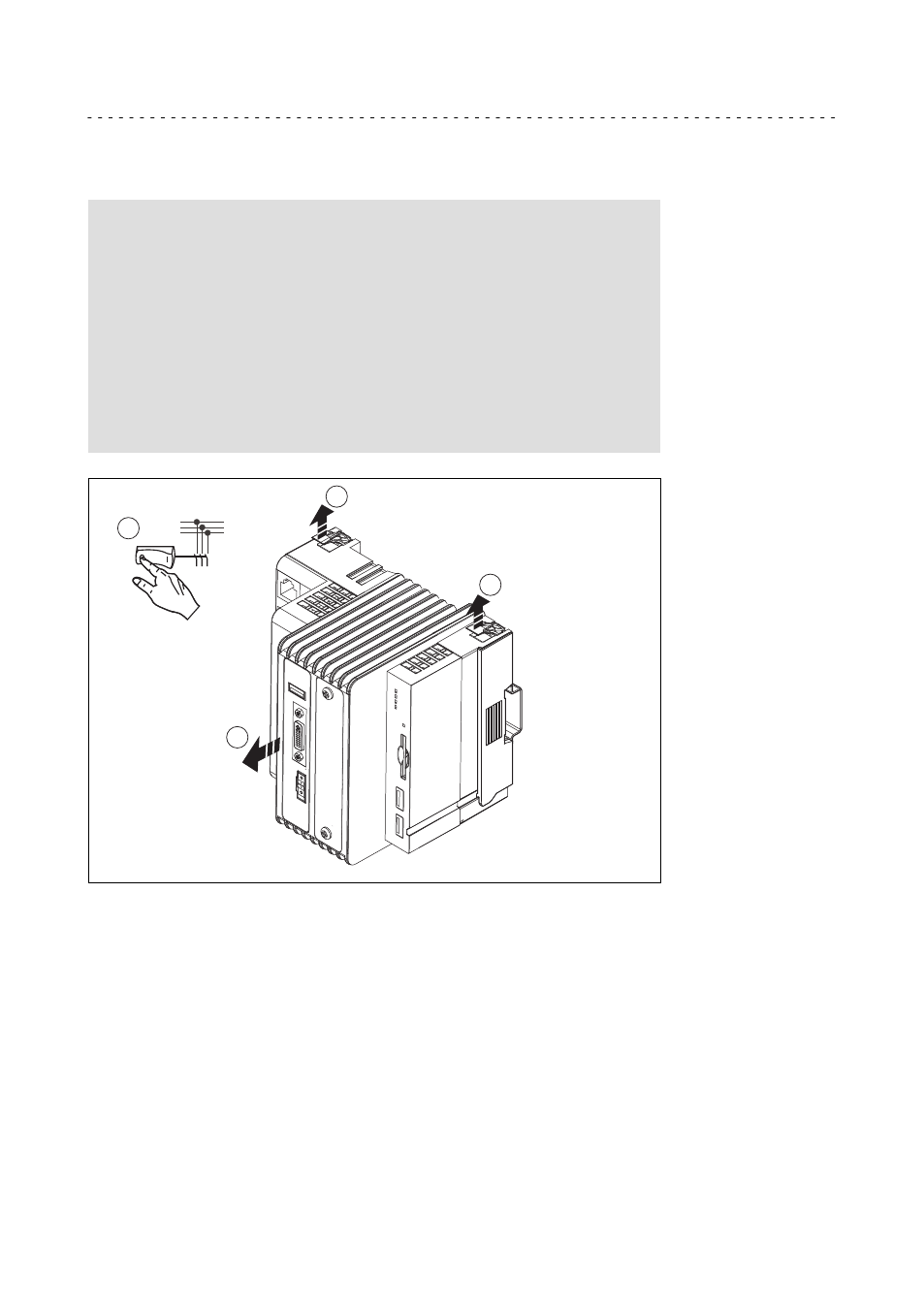

Fig. 5−3
Disassembly
How to remove the Controller:
1. Switch off the supply voltage.
2. Loosen the locking lever for the DIN rail.
3. Remove the Controller from the DIN rail.
