-4-
Distance should be equal

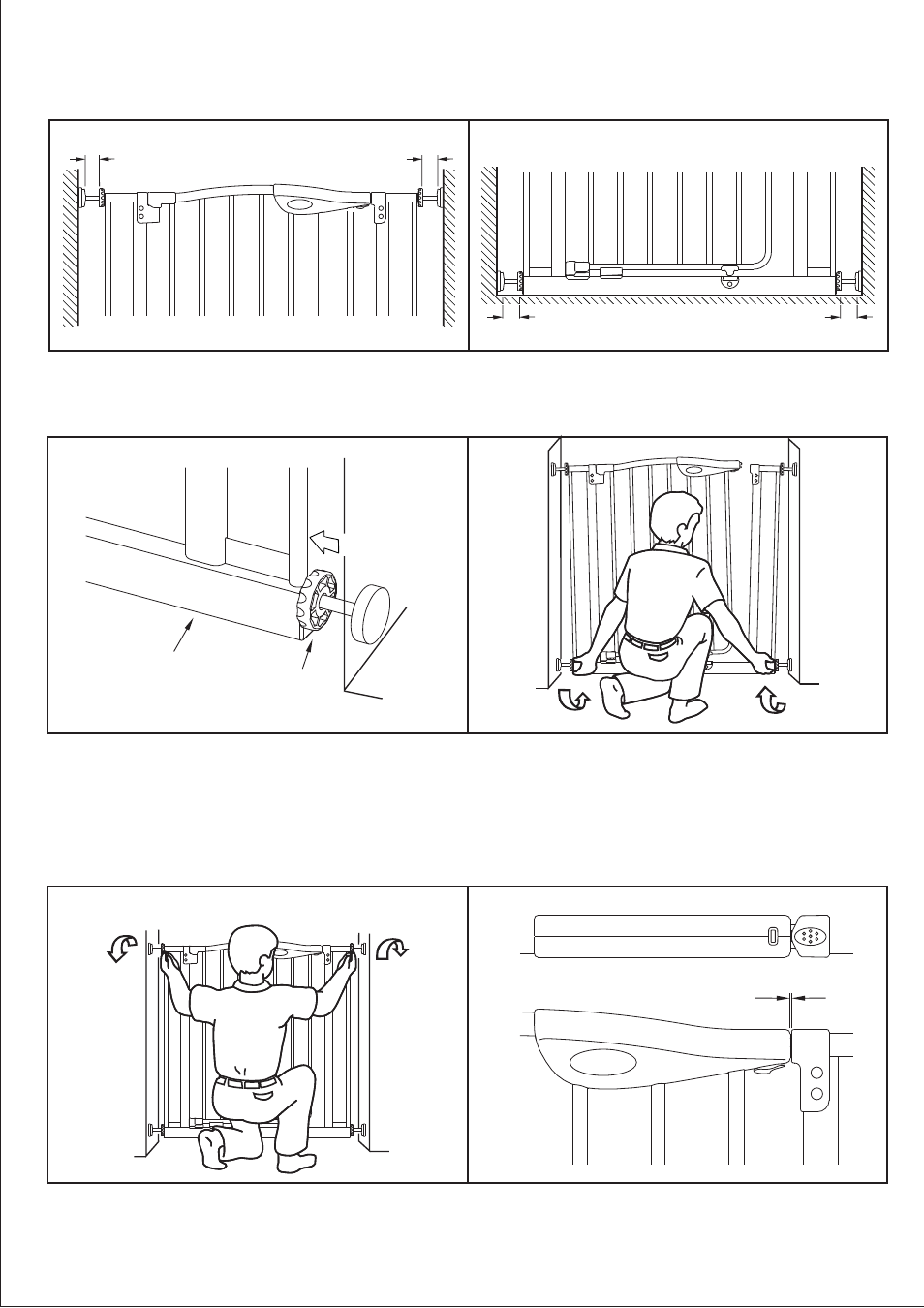

4A 4B
Distance should be equal
4.Pull out the tension bolts with rubber pads from the Gate Frames or Extension Frames and install into mounting cups. When
tightened, the distances from the bottom of Gate Frame or Extension Frame to each side of wall should be equal and must
not be greater than 6cm(4A, 4B).
6.Next, tighten both of the tension knobs at the top by turning them at the same time (6A). Tighten the tension knobs until the two
indicator lines, located on the Upper Locking Set and on the Right Upper Corner, align horizontally; meanwhile, keep the gap between
Upper Locking Set and Right Upper Corner about 1mm (6B). Make sure the gate is securely fastened at both top and bottom.
Once fitted the safety gate should be checked to ensure that it is properly fixed and secured.
Tighten inward and align the Indicator lines
Keep this gap about 1mm
6A 6B
tighten inward
5A 5B
Tighten inward
Tension knob
Gate frame
5.Tighten both of the bottom tension knobs (5A) by turning them at the same time (5B).
NOTE:
Make sure the bottom of the gate frame remains completely flat on the floor.
