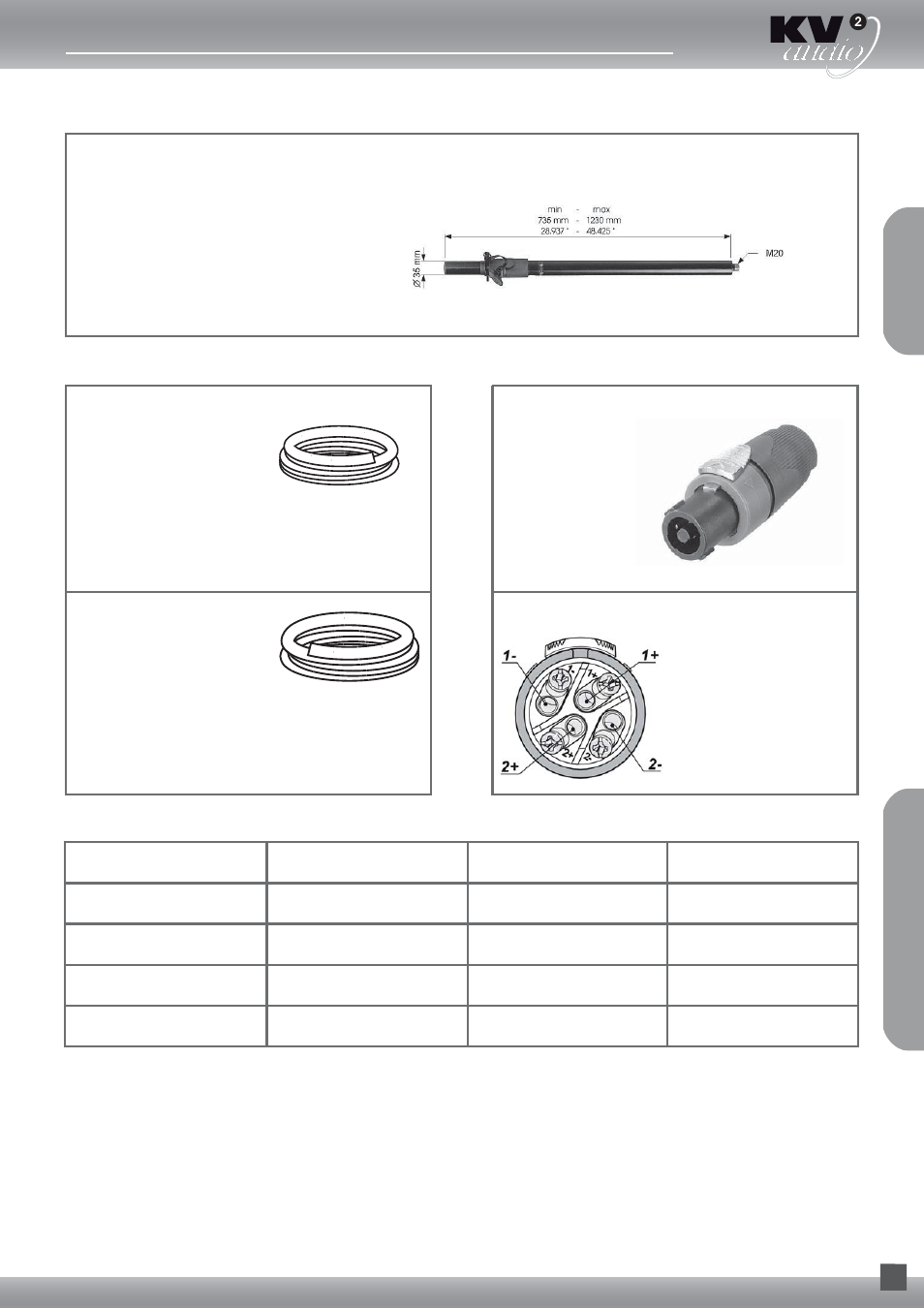

POLE MOUNT
RECOMMENDED SPEAKER CABLE LENGTHS
2.5
2 x 2.5
4
15
20
30
40
1.5
8
15
30
60
90
25
50
100
ESD, Speakon NL4 wiring
positive pin
(1 +, 2 + parallel)
negative pin
(1 -, 2 - parallel)
1m - round flexible speaker cable,
cross section 2 x 1.5mm
KVV 987 250
PART NUMBER:
PART NAME:
SPEAKON NL4
KVV 987 240
PART NUMBER:
PART NAME:
1m - round flexible speaker cable,
cross section 4 x 2.5mm
KVV 987 251
PART NUMBER:
PART NAME:
SPEAKER CABLES
PART NAME:
KV2-H, Speaker pole - universal
KVV 987 130
PART NUMBER:
