PAGE

3


MOUNT

OPTION

2:

Mounting to clutch or brake perch.


STEP 9

Remove the top fastener from the clutch or brake perch mount.


STEP 10

Identify the correct screw, either the metric or standard, by comparing

threads on the included hex head cap screws to the threads from the

screws that were removed. The 1/4”-20 X 2-1/2” screw is used on

Harleys and the M6 X 1.0 X 60mm on Metric bikes. Install the verified hex

head cap screw with the 1” sleeve and aluminum spacers in place of the

fastener that was removed in Step 9. PIC 2 Tighten securely.

STEP 11

Slide the Snap-N-Go Drink Ring over the bolt and sleeve then line up the

head of the hex head cap screw with the cut out on the bottom side of

the drink holder, and snap it into place.


STEP 12

Turn the handlebars in both directions to their full stop position and

ensure that there is clearance between the Snap-N-Go Holder and any component on the bike.

ENSURE THAT THERE IS CLEARANCE AT ALL POINTS WHEN THE
HANDLEBARS ARE TURNED, INSUFFICIENT CLEARANCE MAY CAUSE
DAMAGE TO THE MOTORCYCLE OR CAN CAUSE LOSS OF CONTROL THAT

COULD RESULT IN SEVERE INJURY OR DEATH.

TO PREVENT POSSIBLE LOSS OF CONTROL, WHICH COULD RESULT IN A
POSSIBLE INJURY OR DEATH, WE DO NOT RECOMMEND REMOVING AND

REPLACING OBJECTS IN THE HOLDER WHILE RIDING THE MOTORCYCLE.


Do not overload the Snap-N-Go Ring/Beverage Carrier with excessive weight.

Ensure that the Snap-N-Go Ring is secure on the Mount and that the Mount is
secure on the motorcycle. Küryakyn is not responsible for any belongings that are
stolen or damaged from use of this Drink Holder or from the Snap-N-Go Ring or

Mount not being properly secured to the motorcycle. It is the installer’s

responsibility to ensure that all of the fasteners (including pre-assembled) are

tightened before operation of the motorcycle. Küryakyn will not provide warranty

coverage on products or components lost due to improper installation or lack of

maintenance. Periodic inspection and maintenance are required on all fasteners.

BEVERAGE

CARRIER

INSTALLATION


STEP 13

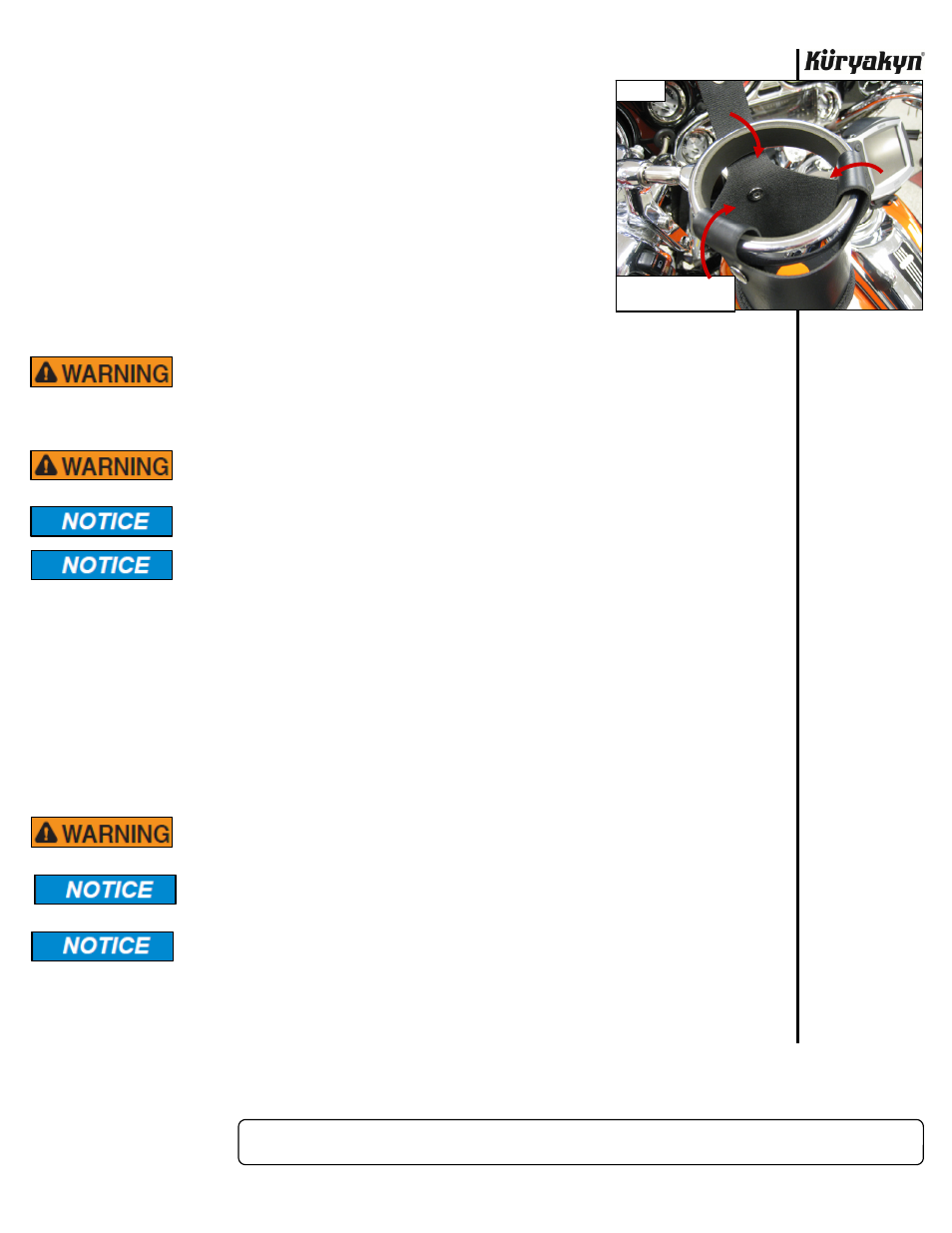

Hold the Beverage Carrier under the Drink Ring. As shown in PIC 3, each of the three straps will

go around the drink ring from the outside to the inside.


STEP 14

Snap each of the three arms to the snaps (PIC 3) located inside the drink holder.

TO PREVENT POSSIBLE LOSS OF CONTROL, WHICH COULD RESULT IN A

POSSIBLE INJURY OR DEATH, WE DO NOT RECOMMEND REMOVING AND

REPLACING OBJECTS IN THE HOLDER WHILE RIDING THE MOTORCYCLE.


Do not overload the Snap-N-Go Ring/Beverage Carrier with excessive weight.


Ensure that the Snap-N-Go Ring is secure on the Mount and that the Mount is
secure on the motorcycle. Küryakyn is not responsible for any belongings that are
stolen or damaged from use of this Drink Holder or from the Snap-N-Go Ring or

Mount not being properly secured to the motorcycle. It is the installer’s

responsibility to ensure that all of the fasteners (including pre-assembled) are

tightened before operation of the motorcycle. Küryakyn will not provide warranty

coverage on products or components lost due to improper installation or lack of

maintenance. Periodic inspection and maintenance are required on all fasteners.

SNAP-N-GO

DRINK

HOLDER

INSTALLATION

Ride On!

PIC 3

FOLD STRAPS FROM
OUTSIDE TO INSIDE
