2
A. Snap Hooks – (2) self-closing and self-locking Klein-Gard ™ snap
hooks - one snap hook is located on the Single-Fixed end of the
inner strap. The other snap hook is located on the Double-end
of the inner strap.
B. Single-Fixed end of the Inner Strap Sub-assembly portion –
orange urethane coated woven material with red center wear
indicator threads.
C. Carabiner Sub-assembly – self-closing and self-locking
carabiner with stirrup and roller connected to inner strap.
D. Outer strap D-ring Sub-assembly – constructed of brown
six-ply Klein-Kord ® material with inner red wear indicator pliers.
E. Guide bracket for outer strap.
F. Adjustment buckle for outer strap – adjust to the circumference
of the pole placing the carabiner Sub-assembly (C) and cam
bracket Sub-assembly (H) into the 3 o’clock and 9 o’clock
contact positions.
G. Outer Strap Stop – stop affixed to the free end of outer strap to
prevent it from passing through the adjustment buckle.
H. Cam Bracket Sub-assembly with paddle – provides length
adjustment of the inner strap for a comfortable working distance
from the pole.
I. Warning card packet with Identification Tag – contains warnings,
identification tag, model #, range, type, date of manufacture,
serial # and certification markings.
J. Velcro ® retaining strap – the double sided Velcro strap is used
to retain the free end of the inner strap.*
K. Inner Strap Stop – stop affixed to the free end of the inner strap to
prevent it from passing through the Cam-bracket Sub-assembly.
L. Double - end portion of the inner strap Sub-assembly.
* Velcro is a registered trademark of Velcro Industries B.V.
1. WOOD POLE FALL RESTRICT DEVICE (WPFRD) COMPONENTS
(See FIGURE 1 for all components)

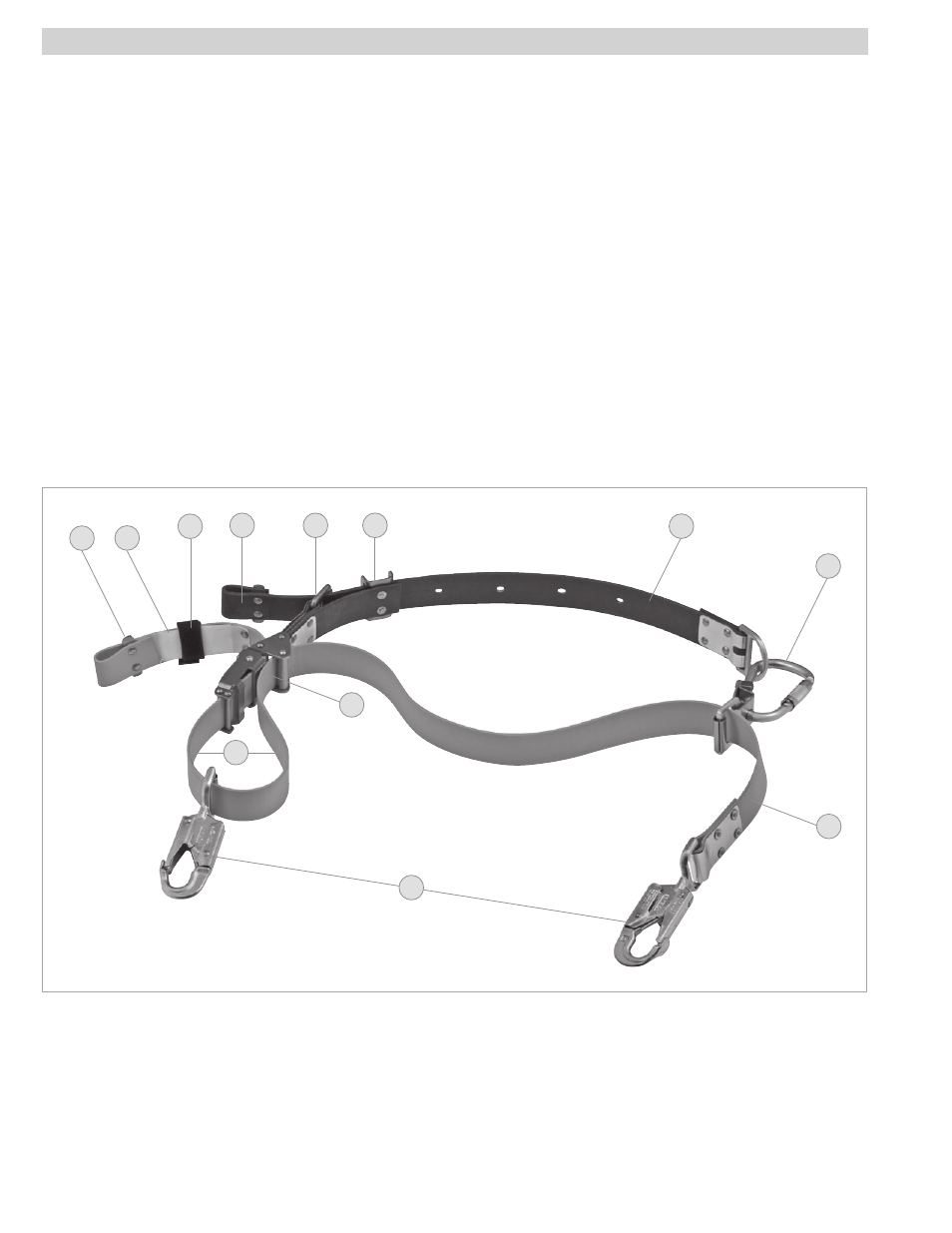

FIGURE 1 – Wood Pole Fall Restrict Device (WPFRD) Components.
K I
C
G F E D
L
A
H
B
J
