JULABO FLW11006 Recirculating Coolers User Manual

Page 19

background image

19

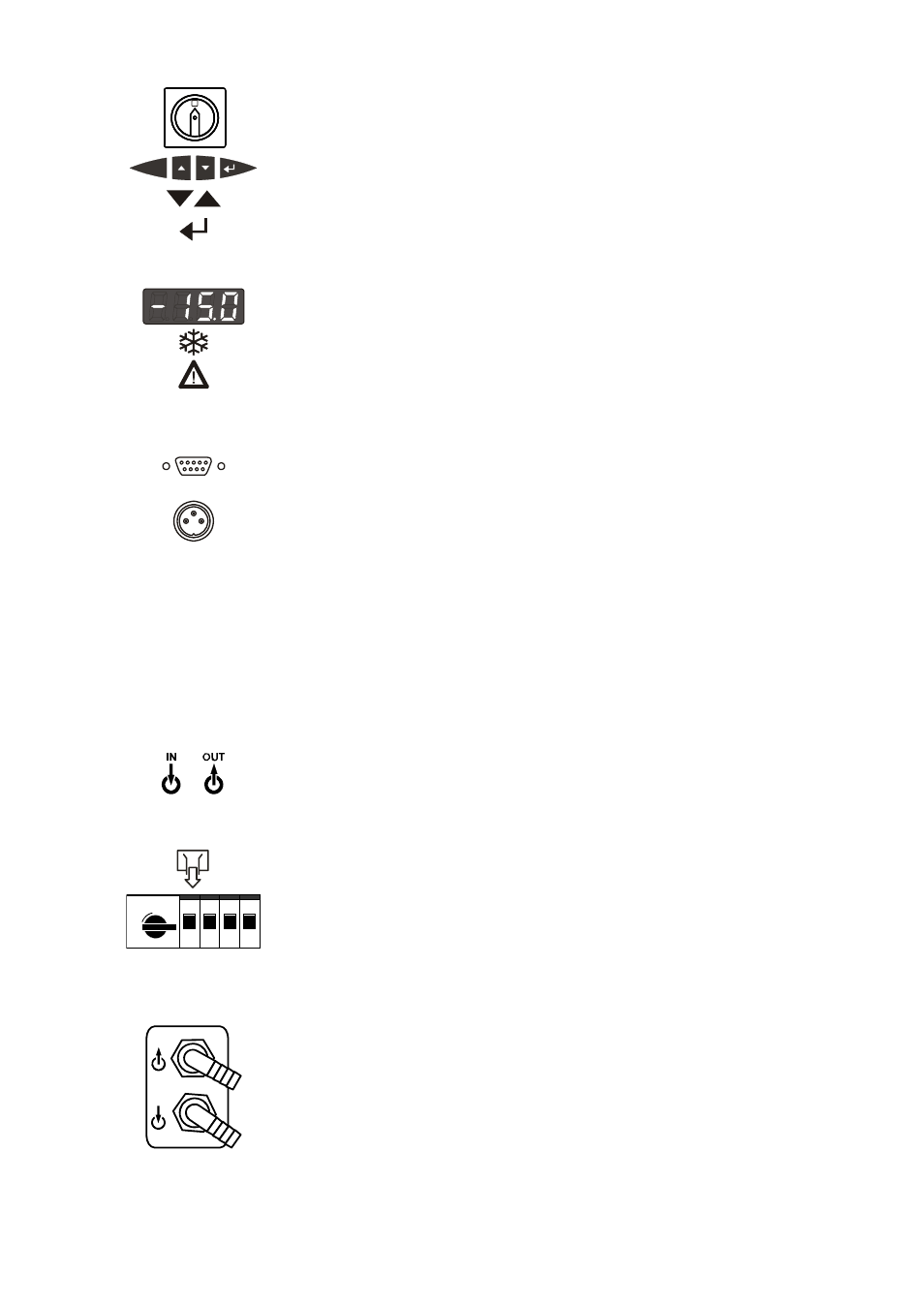

1

ON

Mains power switch

2.0

Keypad, spash-water protected

2.1

Edit keys

(set point increase or decrease)

2.2

Enter key

Store set point value / parameter

3.0

Indication

3.1

°C

LED temperature display

3.2

Control indicator – Cooling

3.3

Control indicator – Alarm

4

Protection lid for fill in opening

5

Feed pressure indication: Manometer

6

RS232

Interface RS232: remote control via personal computer

7

Alarm output (for external alarm signal)

8

Filling

level

indication

9

Drain tap with drain port

10a

10b

Castor with brake (at the front)
Castor without brake (at the back)

11

Venting grid, removable

12

Protection lid for storing place of operating manual

13

Feed pressure adjusting valve

14

Pump connector

OUT – pressure pump

Pump connector

IN– Return

FL/FLW7006

G 1¼“

FL/FLW11006

G 1¼“

15

Overflow connector

16

0

1

Mains circuit breakers (resettable)

1 Motor protection switch for compressor motor

2 Mains circuit breakers (resettable) 4 A

(for Electronics)

2 Mains circuit breakers (resettable) 10 A (for Pump motor)

17

Mains power cable with plug

18

IN

OUT

Only water cooled models

IN

Cooling water inlet

OUT Cooling water outlet

G3/4"

external

thread

12 mm inner dia. tubing
