15

5. Installation

 Place the unit on an even surface on a base made of

nonflammable material. Using the castors (10a, 10b) move the unit
to the intended location.
For better stability, apply the holding breaks on the front casters
(10a).

 Cooling machine, pump motor and electronics produce intrinsic

heat that is dissipated via the venting openings.! Never cover
these openings!

 Do not set up the unit in the immediate vicinity of heat sources and

do not expose to sun light.

 Keep at least 20 cm of open space on the front and rear venting

grids.

 The place of installation should be large enough and provide

sufficient air ventilation to ensure the room does not warm up
excessively because of the heat the instrument rejects to the
environment.
For a fault (leakage) in the refrigeration system, the standard EN
378 prescribes a certain room space to be available for each kg of
refrigerant.
> For 0.52 kg of refrigerant R-404A, 1 m

3

of space is required.

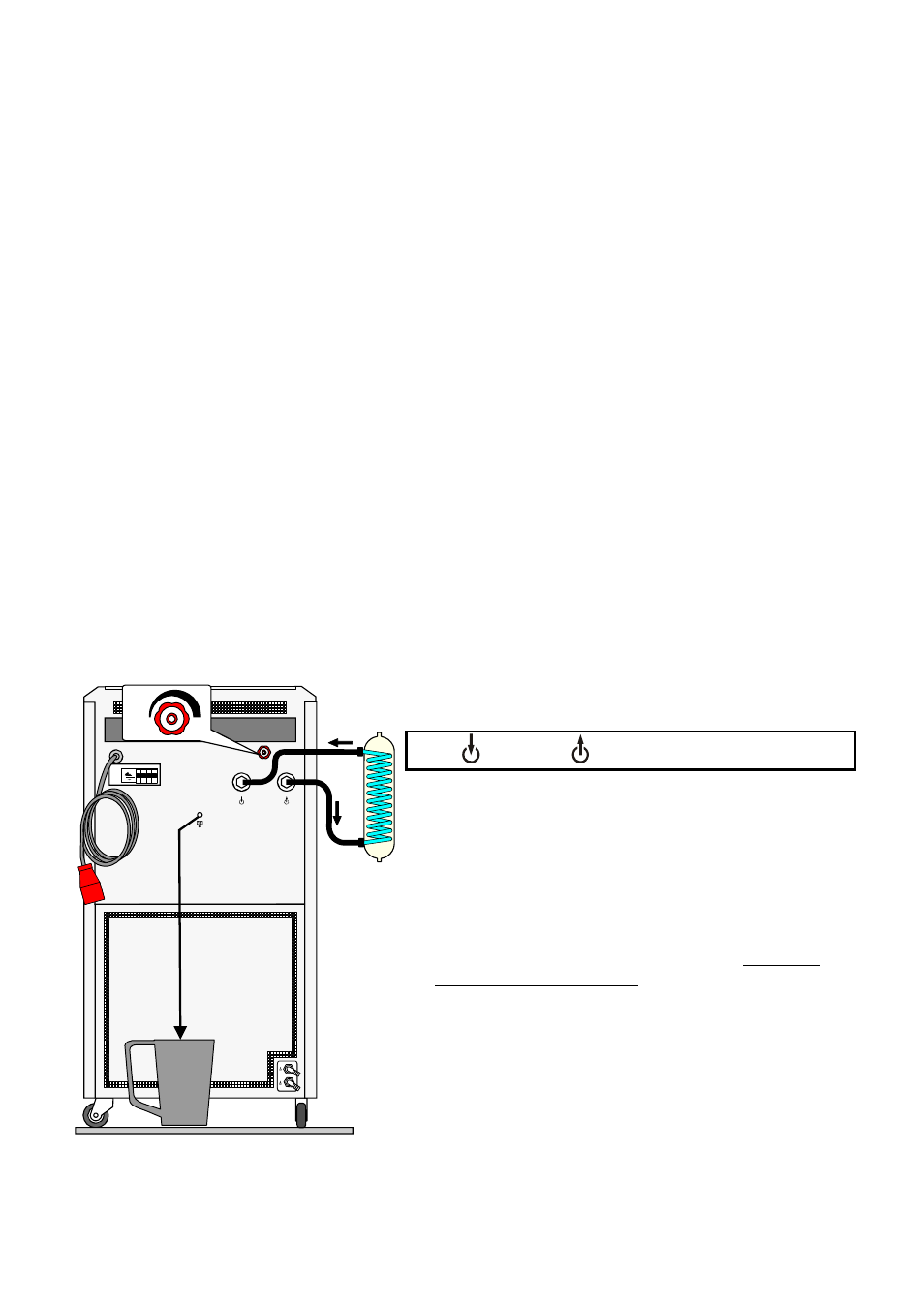

Rear view

Example: FLW7006

IN

OUT

IN

OUT

min

0

1

 Connect the tubings for cooling the external system to

the pump connectors M16x1 for feed and return (14)
on the rear of the recirculating cooler.

– Return

- Feed

 Connect a piece of tubing to the overflow connector

(15) and drain into a suitable vessel, which always has
to be placed lower thant the exit „Overflow“.

 Turn the adjusting valve (13) counter-clockwise to set

the lowest manometric pressure.


 Before operating the unit after transport, wait about

one hour after setting it up. This will allow any oil that
has accumulated laterally during transport to flow back
down thus ensuring maximum cooling performance of
the compressor.
