Functions Triggered by White Feature Key:
Call Home Position: Press WHITE feature key and move joystick up.
360˚ Scan Mode: Press WHITE feature key and move joystick down.
LEDʼs On: Press WHITE feature key and move joystick left.
LEDʼs OFF: Press WHITE feature key and move joystick right.
(Please Note: With certain cameras the correct DAY/NIGHT mode must be in operation before LEDʼs will
operate. Refer to the user guide of your camera for further details.
Functions Triggered by Blue Feature Key:
Set Home Position: Press BLUE feature key and move joystick up.
Toggle Day / Night Mode: Press BLUE feature key and move joystick left
Defrogger ON: Press BLUE feature key and move joystick up
Defogger OFF: Press BLUE feature key and move joystick down.
Please Note: Proportional operation does not work when selecting features with feature keys. Joystick must
be moved to each position fully to operate.
Please note: If camera is installed or configured to be inverted this may invert camera controls depending
on the camera model and firmware level. Consult your camera user guide or contact Iris for details.
Control of the IRIS117/118 Low Light Cameras is acheived using the IRIS517 controller variant.
The IRIS517 operates in the same way as the IRIS506 but the features specific to the 117/118 cameras are
operated by moving the joystick UP, DOWN, LEFT and RIGHT whilst pressing one of two colour coded ʻfea-
ture keysʼ.
There are two feature keys, one coloured white and one coloured blue, and the specific features they oper-

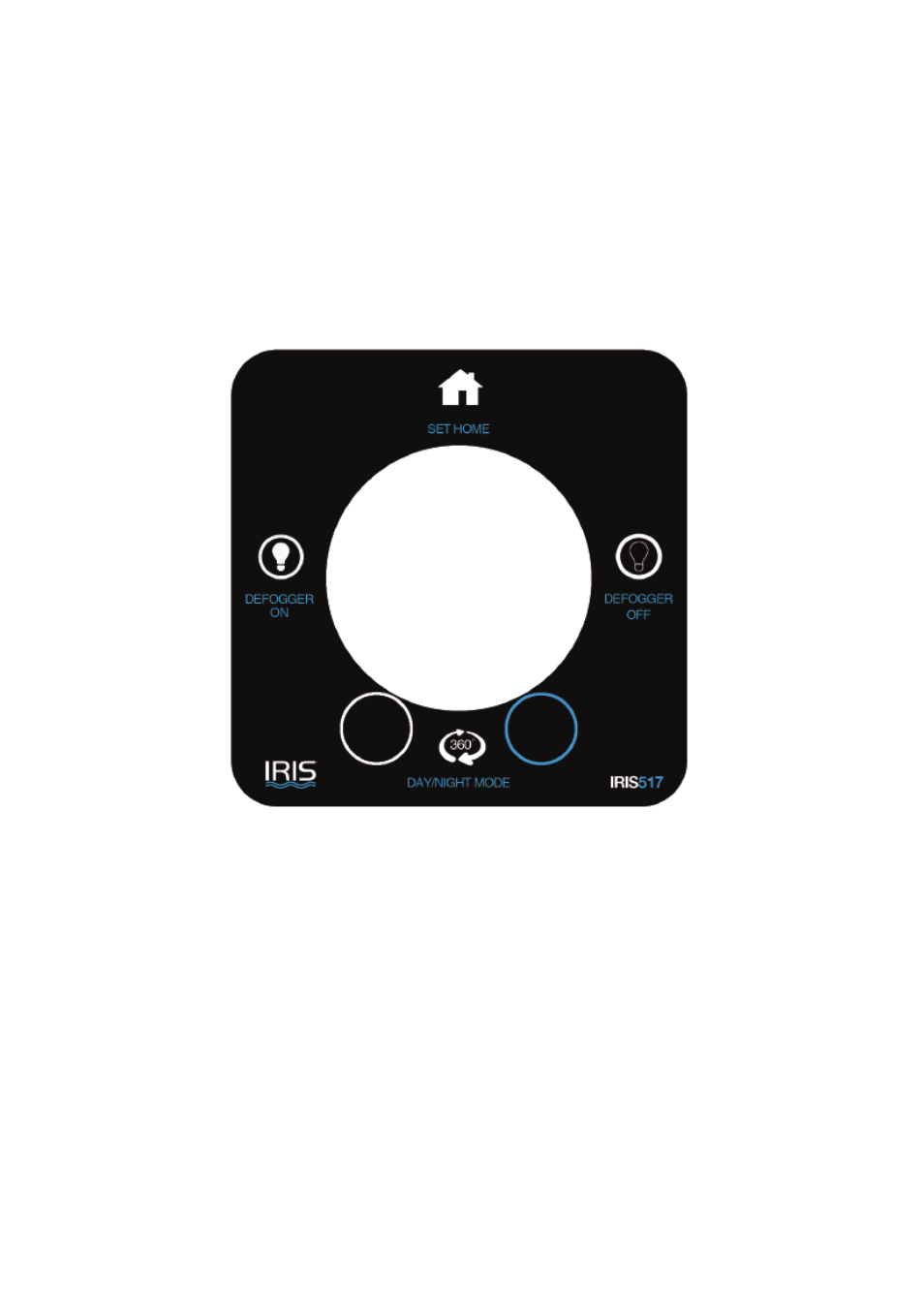

ate are printed onto the joystick bezel in the appropriate colour. Below is a picture of the keyboard bezel
which clearly shows the coloured feature keys and how the bezel is labelled in accordance with which joy-
stick actions are required to operate specific functions.
IRIS517 Joystick Operation (IRIS117/118 Cameras)
