IRIS506/507/517 Joystick Operation
Once correctly installed and powered up, use the joystick to drive the camera by moving in the desired di-
rection. To Zoom IN , twist the Joystick head Clockwise and to Zoom OUT twist anti-clockwise.
To access the colour coded extended features of the controller, move the joystick to the appropriate posi-
tion whilst holding down the function button with the corresponding colour.
Proportional Control:
The joystick controller is geared so that the pan, tilt and zoom speed increases progressively away from the
central position. The closer the centre point, the slower the control, the further away, the faster the control.
Note: Zoom Gearing...
In order to enable much greater accuracy when zoomed in, the camera will automatically calculate the de-
gree of zoom and gear the control so that the pan and tilt speed reduces.

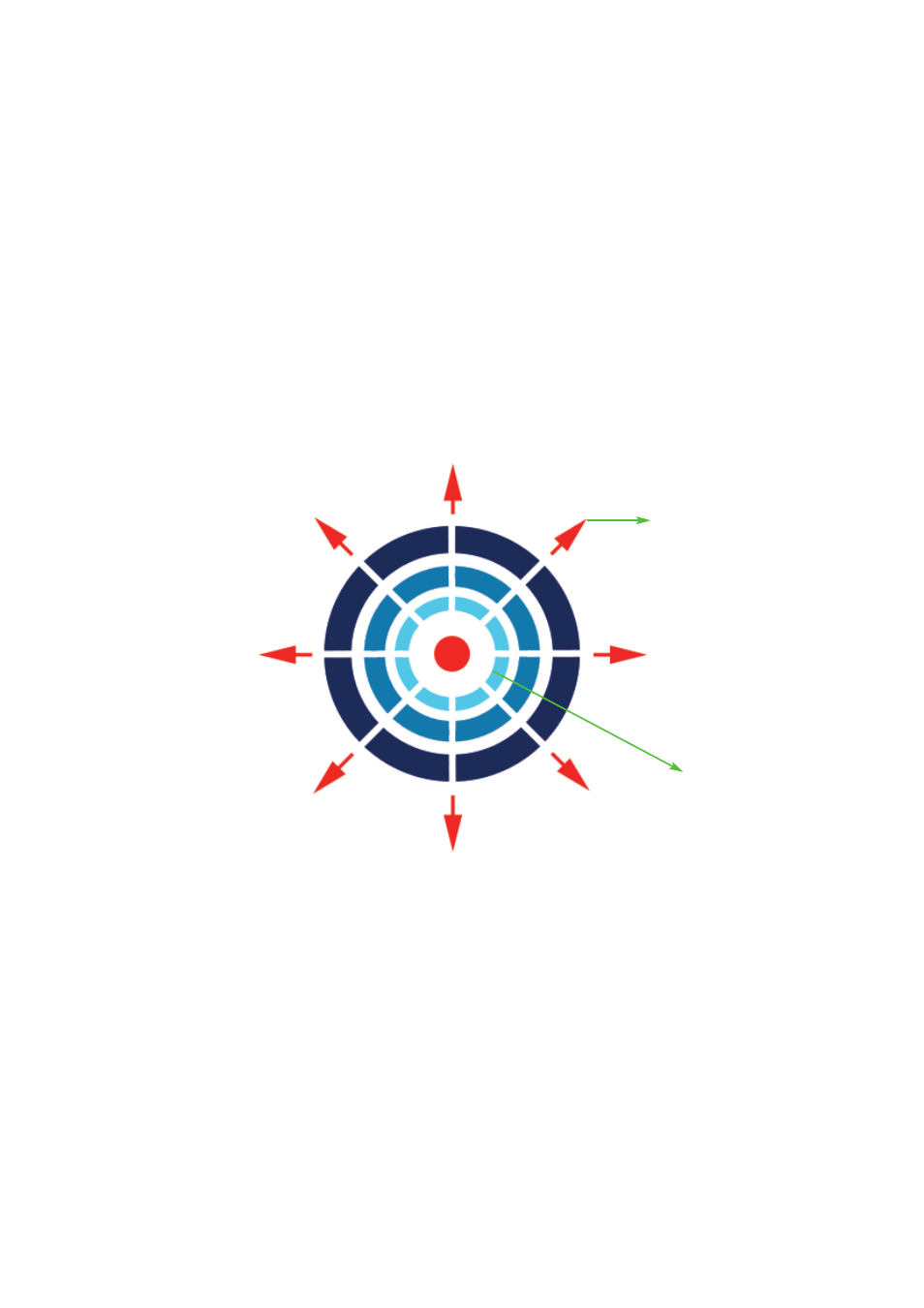

Move Joystick in any
direction to drive
camera.
Proportional Control.
Speed increases as the
joystick is moved away
from the centre.
