DL-HDM44 Installation Guide
8

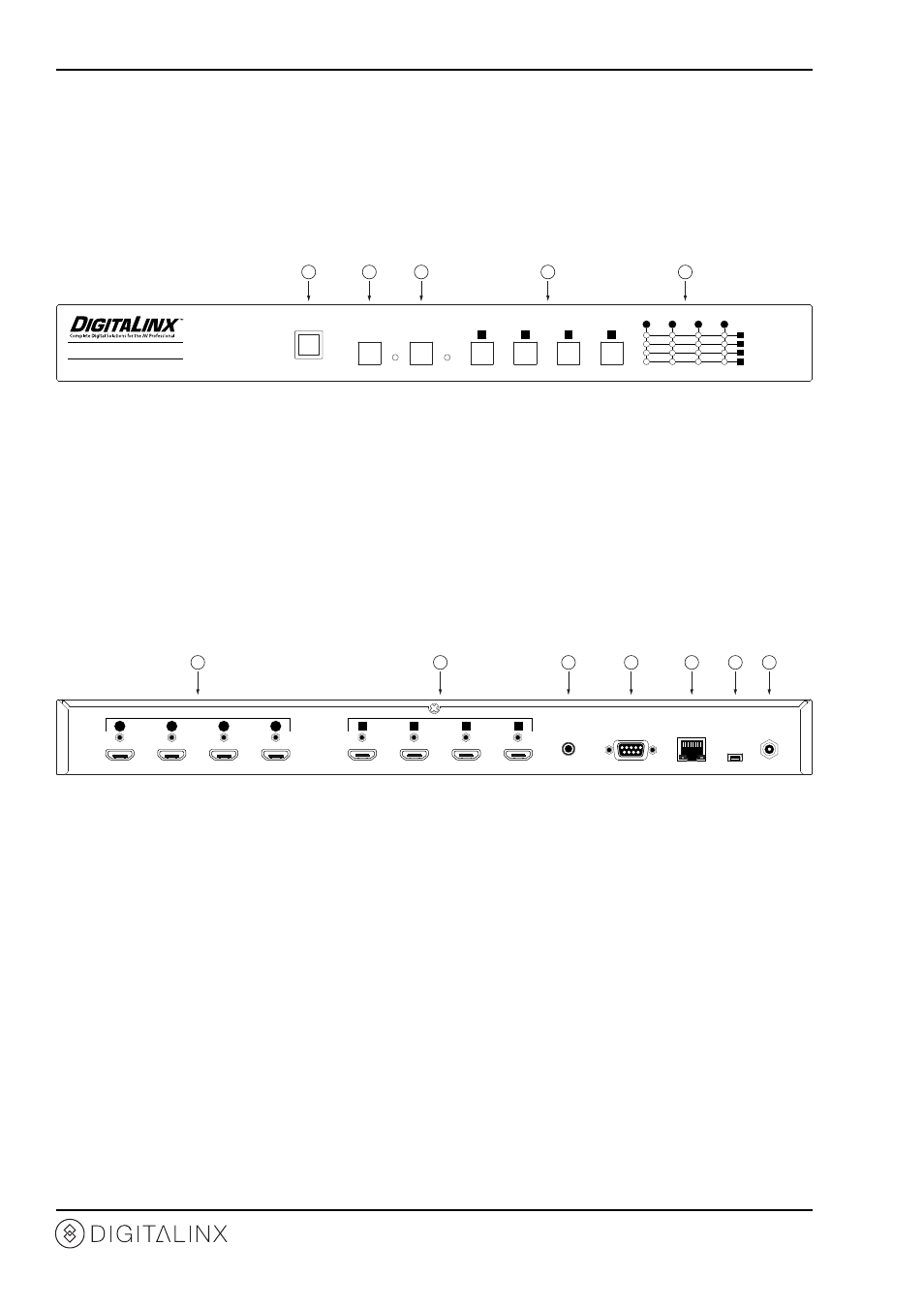

Front and Rear Panels
Front Panel
Rear Panel
Part#: DL-HDM44
POWER
4x4 HDMI Matrix Switcher
EDID
A
B
C
D
A
B
C
1
2
3
4
D
Inputs
Outputs
1
2
3
4
5
B
A
C
D
OUTPUTS
INPUTS
1
2
3
4
Ethernet
RS232
IR In
Power
DC5V
Service
A
B
C
D
E
F
G
1.
IR receiver for matrix control via IR remote
2.
Power button and LED
3.
EDID button and LED
4.
Output cycle buttons
5.
Matrix routing status LEDs
A.
HDMI Inputs
B.
HDMI Outputs
C.
IR input for matrix when front is covered or matrix is located in a concealed location
D.
RS232 control input
E.
TCP/IP (Ethernet) control input for control via web browser
F.
Mini USB for firmware updates
G.
5V DC power input
