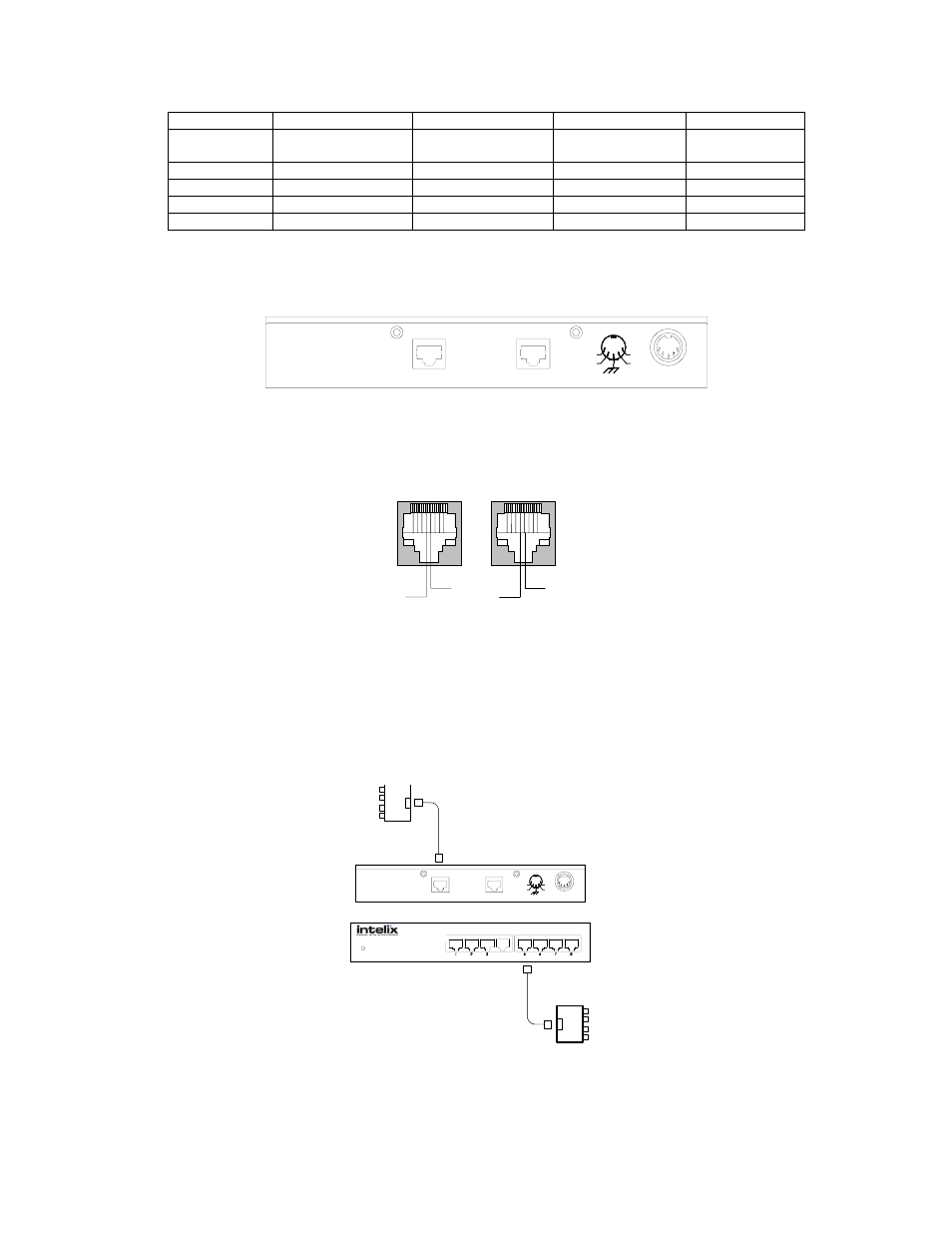

Figure 2 : intelix video balun pin configurations, Figure 3: avda-8 back panel, Figure 5: connection diagram – Intelix AVDA-8-F User Manual
Page 3
V1 V1A2
V2A2
SVA2
Signal
CCTV Balun
Stereo Audio-Video
Balun
Dual Audio-Video
Balun
S-Video/
Audio Balun
Video 1
7&8
7&8
7&8
7&8 luma
Video 2
N/A
N/A
4&5
4&5 chroma
Audio 1
N/A
1&2
1&2
1&2
Audio 2
N/A
3&6
3&6
3&6
Figure 2 : Intelix Video Balun Pin Configurations
RJ45 Pin Configuration
Video 2: Ring 4 Tip 5
Audio 2: Ring 3 Tip 6
Audio 1: Ring 1 Tip 2
Video 1: Ring 7 Tip 8
Looping Output
Input
NC
+ 12V
GND
-12V
Power
Figure 3: AVDA-8 Back Panel
R
T
T
R
Straight polarity Reverse polarity
Figure 4: Polarities
5.
Plug the ADVA-8 into the nearest AC power outlet. The Power LED should light up and
stay on.
RJ45 Pin Configuration
Video 2: Ring 4 Tip 5
Audio 2: Ring 3 Tip 6
Audio 1: Ring 1 Tip 2
Video 1: Ring 7 Tip 8
Looping Output
Input
NC
+ 12V
GND
-12V
Power
Video 1
Video 2
VideoEase 2-Way
Audio/Video Balun
(500012)
Audio1
Audio 2
Cat 5 Twisted Pair
(4-Pair)
RJ45
8-pin modular plug
Video 1
Video 2
Audio1
Audio 2
Power
4
Outputs
Figure 5: Connection Diagram
V2A2
