2. UNIMAX 1010 / PROMAX 1020 (with digital timer and digital speed display)

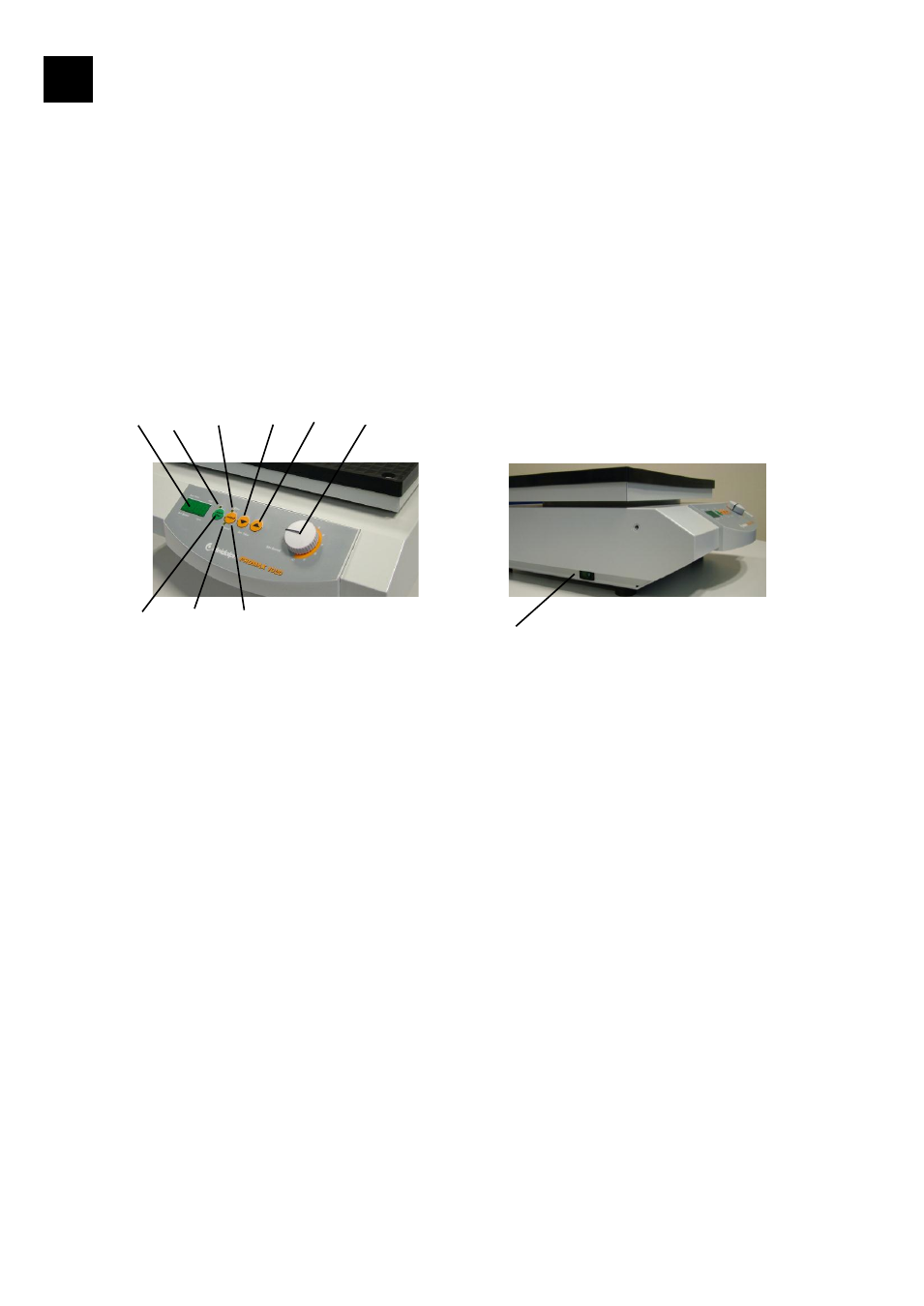

The control panel features the following controls:
A 2-pole master switch (toggle-type, lighted green on the left side of the unit)
B setting knob, shaking frequency
C Set Time key : time up
D Set Time key : time down
E Select key: display selector: shaking frequency (Act Speed) / time (Act Time)
F LED Time: time appears in display
G LED Speed: rotational speed (shaking frequency) appears in display
H Start / Stop key: to START / STOP shaking action
I
LED Start /Stop: lighting, while item is running
J 4-digit display
A.
Continuous shaking
Turn item ON with master switch (A)
Set time with and keys to 000 (depress and together).
Start continuous operation by hitting the Start / Stop key. Start and Speed LEDs turn on,
shaking frequency is displayed (4-digit display).
Set shaking frequency with knob (B)
Hitting Start / Stop key will stop shaking.
B.
Timer controlled shaking
Set time between 0 and 999 minutes with Set Time or Set Time keys.
Short hits on the keys change time setting slowly, whereas depressing keys is going to
change time rapidly. Depressing the Set Time and Set Time keys resets the timer to
000.
Depressing the Start / Stop key (H) starts shaking at the frequency selected with knob (B)
and for the time interval set before. Start LED turns ON.
Time lapse appears in a 3-digit display. Time LED turns ON.
Current shaking action may be discontinued with the Start / Stop key (H). Actual time
won't change. Hitting this Start / Stop key continues shaking at the moment it had been
discontinued.
In case of a power supply failure or interruption (item turned OFF), this feature is lost.
Hitting the Select key during timer-controlled operation, you may change display from
time to shaking frequency and vice versa.
Speed LED turns ON. Timer LED flashes to indicate timer operation mode.
Timer LED also flashes, when timer-controlled operation was discontinued with the Start /
Stop key.
