20

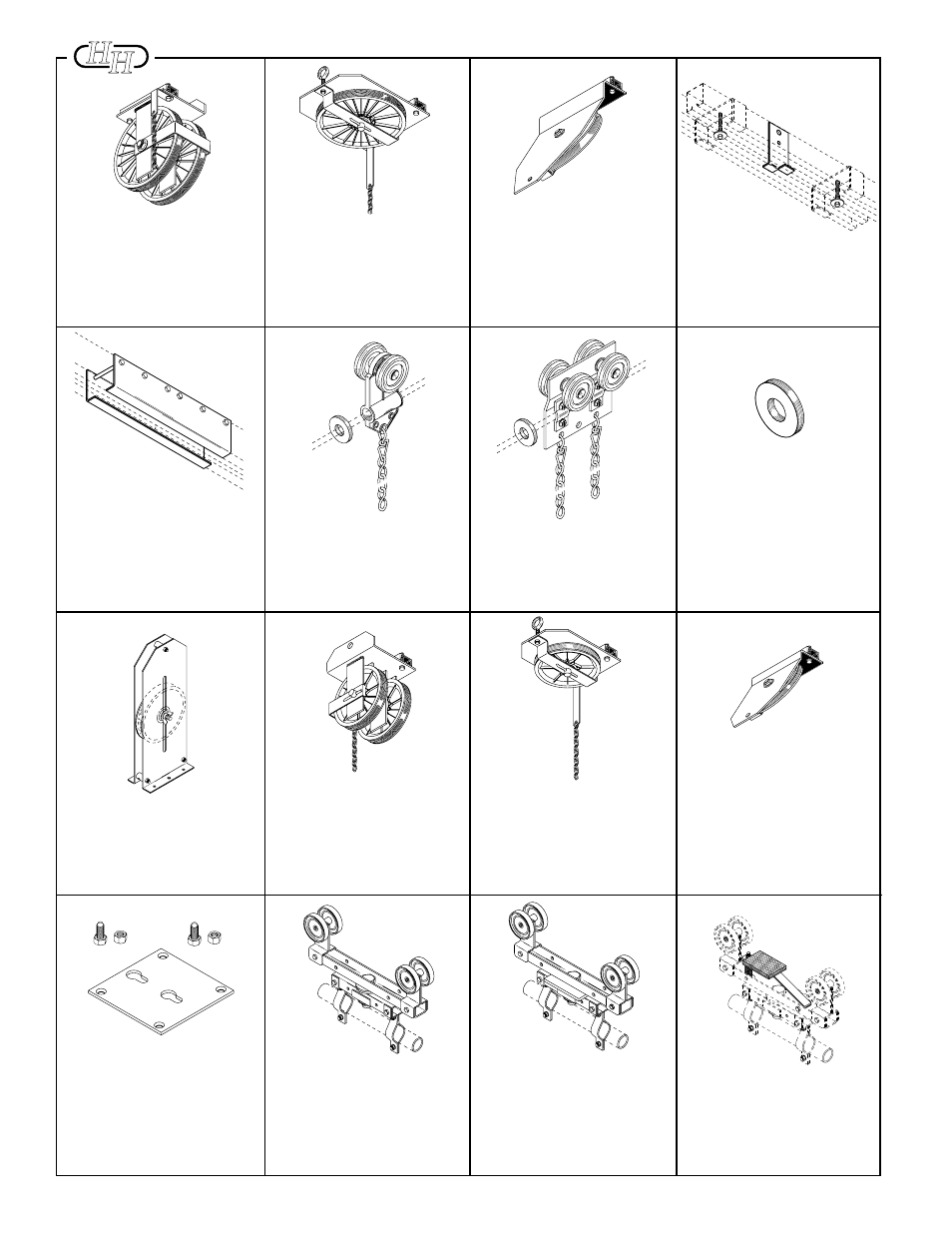

ROUND RUBBER BUMPER
1/8" neoprene bumper placed between carriers
to reduce noise.
No. 430 - for use with 3/16" operating cable.
No. 431 - for use with 3/8" operating line.
No. 431A - for use with 1/2" operating line.
No. 432, BLACK 6" ADJUSTABLE
FLOOR BLOCK
6" diameter Nylatron GS sheave with sealed
precision ball bearings in heavy-duty steel
housing with 9" vertical adjustment. Grooved
to accept up to 1/2" operating line.
40 PIVOT DEVICE
Heavy steel construction with nylon wheels.
Supplied with brackets for 1-3/8" O.D. pipe or
tubing (6' max. recommended length). Allows
masking draperies to be rotated to any angle.
Working Load Limit: 75 pounds.
No. 40 - Zinc plated.
No. 40B - Black finish.
BRAKE KIT
Spring equipped arm with neoprene pad. Add
to pivot device to prevent undesired move-
ment along track.
No. 40BK - Zinc plated.
No. 40BKB - Black finish.
INDEXING PIVOT DEVICE
Pivot device with special plate to index rotation
at 22-1/2 degree increments. Supplied with
brackets for 1-3/8" O.D. pipe or tubing (6' max.
recommended length).
Working Load Limit: 75 pounds.
No. 40X - Zinc plated.
No. 40XB - Black finish.
6" BLACK DOUBLE END PULLEY
6" diameter Nylatron GS sheaves with precision
sealed ball bearings. Heavy-duty steel housing
clamps to underside of track. Chain bracket for
securing offstage curtain edge.
No. 433 - Grooved for up to 1/2" operating line.
No. 433M - Grooved for 3/16" operating cable.
6" BLACK SINGLE END PULLEY
6" diameter Nylatron GS sheave with sealed
precision ball bearings. Heavy-duty steel housing
clamps to underside of track. Chain bracket for
securing offstage curtain edge.
No. 434 - Grooved for up to 1/2" operating line.
No. 434M -Grooved for 3/16" operating cable.
BLACK DETACHABLE
FLOOR BLOCK KIT
7 gauge steel plate with hardware for use with
floor block for quick release.
No. 408DK - use with No. 408 4" Floor Block.
No. 422DK - use with No. 422 8" Floor Block.
No. 432DK - use with No. 432 6" Floor Block.
434A BLACK 6" SLANTED
SINGLE END PULLEY
6" diameter Nylatron GS sheave with sealed
precision ball bearings. Heavy duty steel
housing clamps to underside of track. Chain
bracket for securing offstage curtain edge.
Grooved for up to 1/2" operating line. Allows
a narrower profile when installed.
NO. 429 BLACK MASTER CARRIER
4 urethane-tired wheels riveted to steel body
with 2 shielded ball bearings. 2 clamps provided
for anchoring operating line or cable. Supplied
with 1 rubber bumper. 1 pair required for
overlapping tracks.
No. 428 BLACK SINGLE CARRIER
2 urethane-tired wheels riveted to black
Super Tough nylon body with shielded ball
bearing. Heavy-duty hook, swivel and 6" trim
chain for curtain attachment. Supplied with 1
rubber bumper.
CEILING SPLICE
To align and lock track sections together on
ceiling mounted tracks. 1 pair pictured.
Note: Cannot be used with No. 40 pivot
device.
No. 427 - Zinc plated.
No. 427B - Black finish.
BLACK 8" DOUBLE END PULLEY
8" diameter Nylatron GS sheaves with sealed
precision ball bearings. Heavy-duty steel housing
clamps to underside of track. Chain bracket for
securing offstage curtain edge.
No. 423 - Grooved for up to 1/2" operating line.
No. 423M - Grooved for 3/16" operating cable.
BLACK 8" SINGLE END PULLEY
8" diameter Nylatron GS sheave with sealed
precision ball bearings. Heavy-duty steel housing
clamps to underside of track. Chain bracket for
securing offstage curtain edge.
No. 424 - Grooved for up to 1/2" operating line.
No. 424M - Grooved for 3/16" operating cable.
CENTER PIPE SUPPORT
Formed steel bracket used to support tracks
at overlap.
No. 426 - Zinc plated.
No. 426B - Black finish.
424A BLACK 8" SLANTED
SINGLE END PULLEY
8" diameter Nylatron GS sheave with sealed
precision ball bearings. Heavy-duty steel
housing clamps to underside of track. Chain
bracket for securing offstage curtain edge.
Grooved for up to 1/2" operating line. Allows
a narrower profile when installed.
&
