H&H Specialties 400 Series Track Installation Instructions - Manual (Page 5)

19

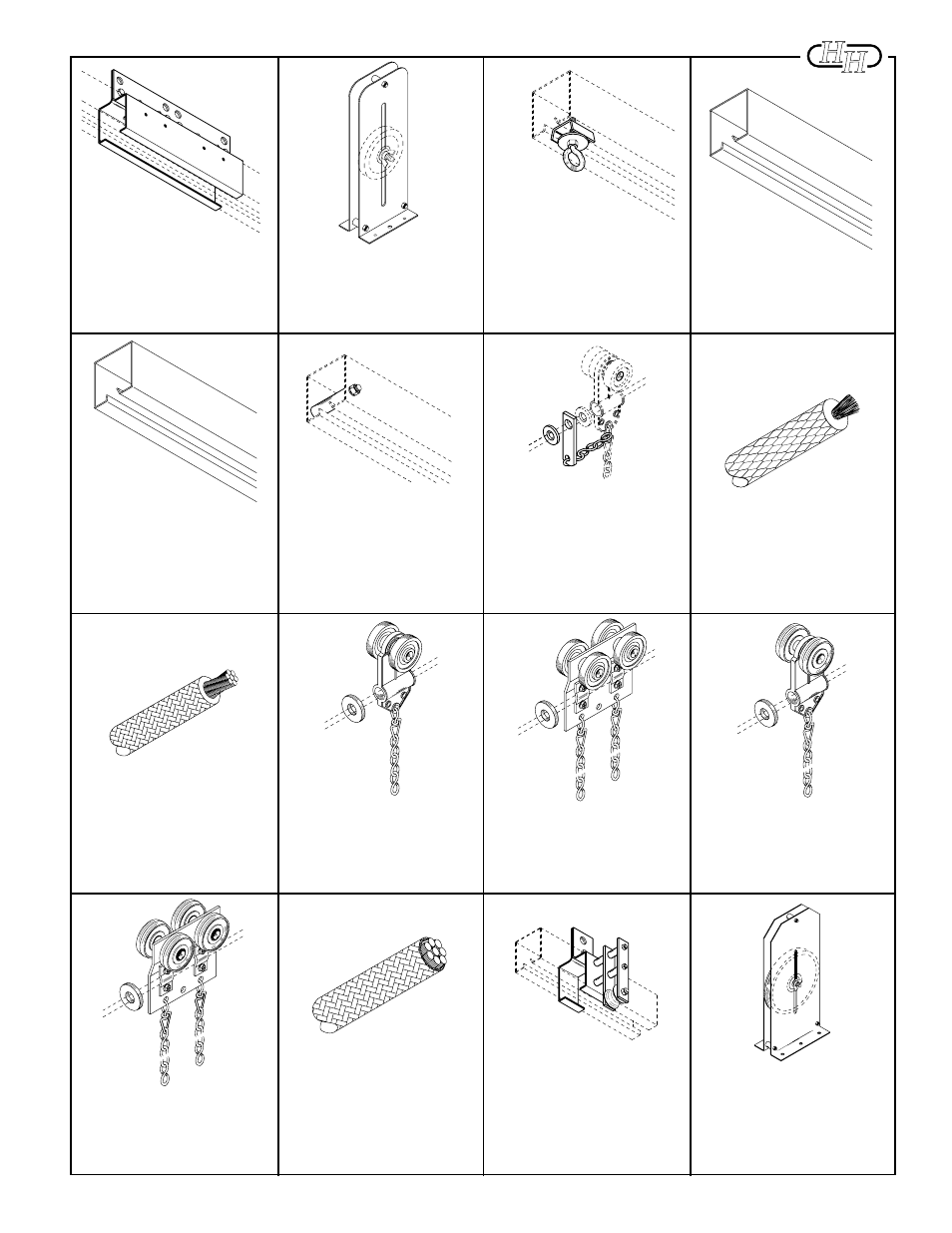

No. 416 BLACK SINGLE CARRIER
2 nylon-tired sealed ball bearing wheels
riveted to black Super Tough nylon body
with heavy-duty hook, swivel and 6" trim
chain for curtain attachment. Supplied with
1 rubber bumper.
No. 417 BLACK MASTER CARRIER
4 nylon-tired sealed ball bearing wheels
riveted to steel body. 2 clamps provided
for anchoring operating line or cable. Sup-
plied with 1 rubber bumper. 1 pair required
for overlapping tracks.
No. 418 BLACK SINGLE CARRIER
2 urethane-tired sealed ball bearing wheels
riveted to black Super Tough nylon body
with heavy-duty hook, swivel and 6" trim
chain for curtain attachment. Supplied with
1 rubber bumper.
No. 419 BLACK MASTER CARRIER
4 urethane-tired sealed ball bearing wheels
riveted to steel body. 2 clamps provided for
anchoring operating line or cable. Supplied
with 1 rubber bumper. 1 pair required for
overlapping tracks.
No. 422, BLACK 8"
ADJUSTABLE FLOOR BLOCK
8" diameter Nylatron GS sheave with sealed
precision ball bearings in heavy-duty
steel housing with 9" vertical adjustment.
Grooved to accept up to 1/2" operating
line.
CLAMP HANGER WITH IDLER
No. 406 clamp hanger with Nylatron GS
ball bearing roller for supporting operating
line or cable.
NO. 421 - Zinc plated.
NO. 421B - Black finish.
No. 414 OPERATING LINE
3/8" diameter black polyester braided over
solid aramid core for manual operation.
No. 415 OPERATING CABLE
3/16" diameter black polyester jacket
braided over 3/32" galvanized aircraft cable.
For use with motorized tracks.
No. 420 OPERATING LINE
1/2" diameter black spun polyester braided
over polyester core for manual operation.
REAR FOLD GUIDE
Allows curtain to fold at offstage edges. Supplied
with 1 rubber bumper.
No. 412 - for use with 3/8" operating line.
NO. 412B - same as 412 in Black
No. 412A - for use with 1/2" operating line.
Black finish.
No. 413 - for use with 3/16" operating cable.
No. 413B - same as 413 in Black
END STOP
Bolt with steel spacer to prevent carriers from
travelling beyond desired location. For use
with walk-along tracks.
No. 411 - Zinc plated.
No. 411B - Black finish.
No. 410A TRACK
Mill finish 6063-T5 extruded aluminum 2-5/8"
wide x 2-3/4" high, .080" thick. 20' and 24'
stock lengths.
No. 410S TRACK
14 gauge galvanized steel, roll-formed to 2-5/8"
wide x 2-3/4" high.
No. 410S- 16', 20', 24', and 26' stock
lengths.
No.410S-B- Semi-glosss black powder coat
finish. 20', and 24' stock lengths.
END STOP & CORD SUPPORT
Steel clamp with eye to support operating line
and prevent carriers from traveling beyond
desired location. 1 pair required for overlap-
ping tracks.
No. 409 - Zinc plated.
No. 409B - Black finish.
No. 408 BLACK
ADJUSTABLE FLOOR BLOCK
4" diameter Nylatron GS sheave with shielded
ball bearing in steel housing.
9" vertical adjustment.
SPLICE
Formed steel brackets align and lock track
sections together. 1 pair pictured.
No. 407 - Zinc plated.
No. 407B - Black finish.
&
