System 50
System 50

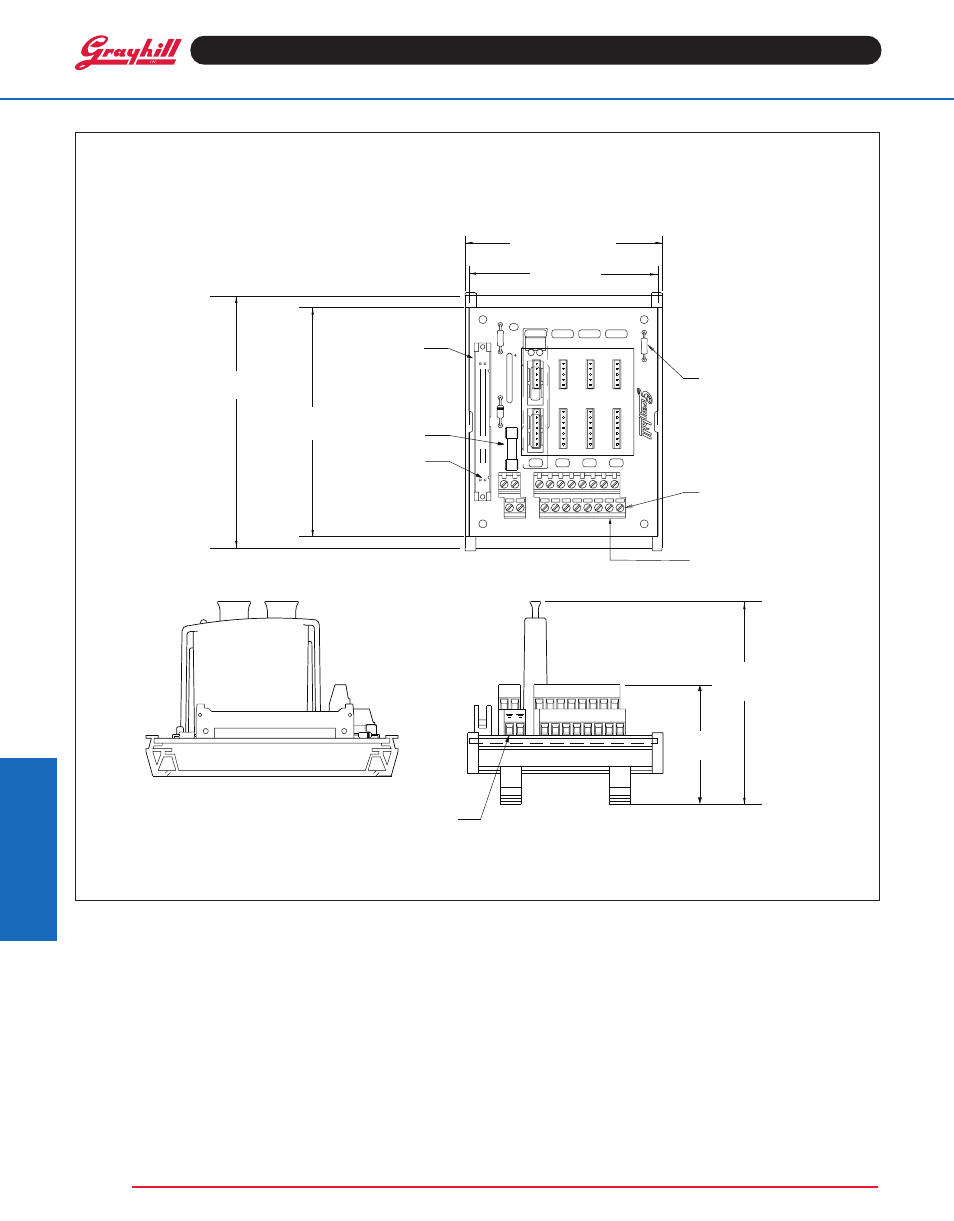

8 CHANNEL RACK: DIN Rail Mount
Part No. 70LRCK8-DIN
Dimensions are shown in inches
(and millimeters).
All tolerances are ± 0.010 (0,25)
unless otherwise specified.
System 50
7
3.8
(95.81)
REF
2.2
(56.49)
DIN CARRIER
4.7 (119.13)
PCB
4.3 (108.46)
DIN CARRIER 3.7 (92.96)
PCB 3.5 (89.15)
REMOVABLE JUMPER
CONNNECTS GND
TO PLATED HOLE
FOR GROUNDING
FIELD WIRING
TERMINAL STRIP
PIN 1
3.15A FUSE
50-PIN
STRAIGHT
HEADER
CONNECTOR
LOGIC SUPPLY TERMINAL STRIP
TOP ROW: + LOGIC SUPPLY
BOTTOM ROW: GND
B
A
M3
M2
M1
M0
16
15
14
13
12
11
10
9
8
7
6
5
2
4
3
1
+5
+5
50
2
14
9
NOTE: MAXIMUM
TERMINAL SCREW
TORQUE NOT TO
EXCEED 5 IN-LBS.
