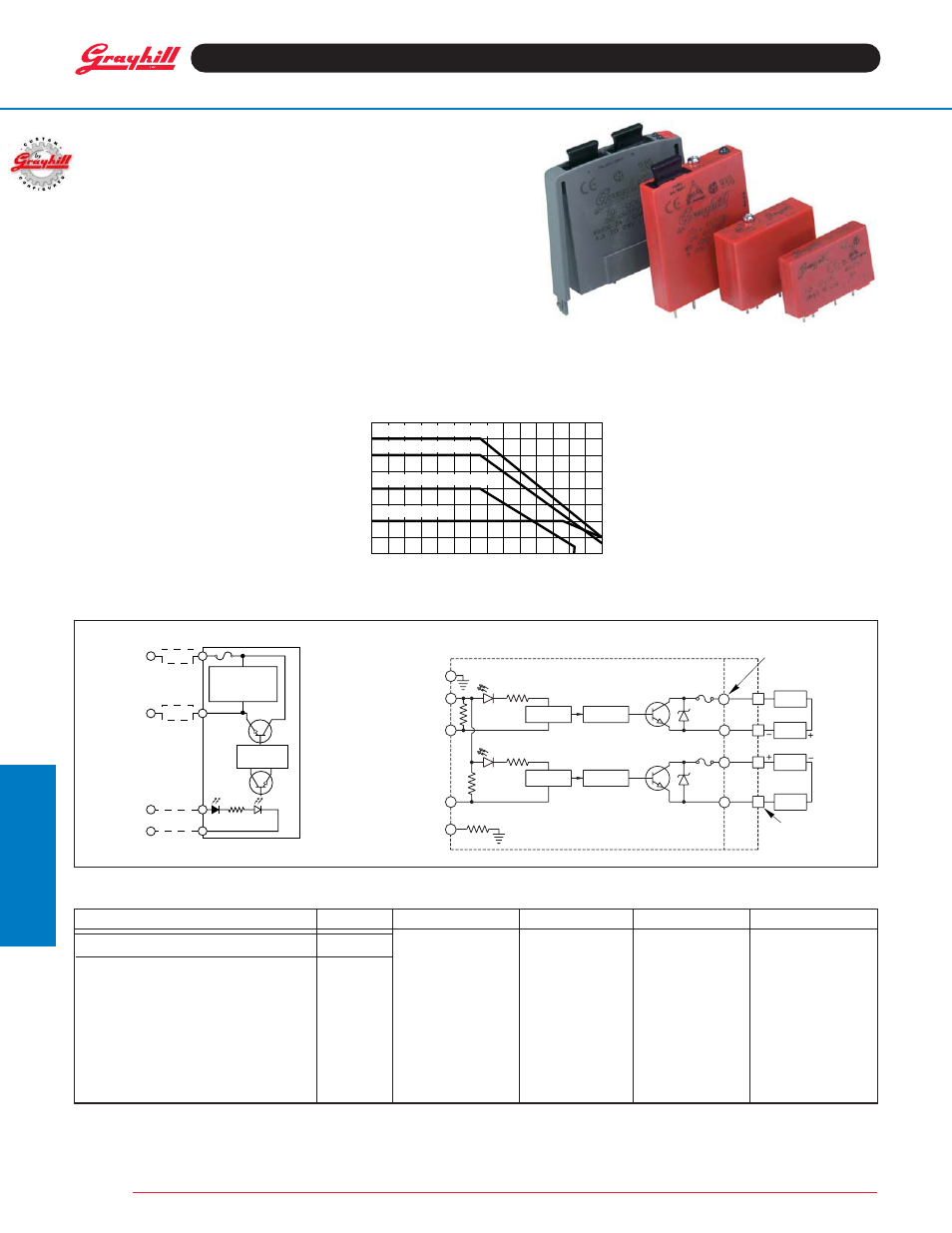

I/O Modules
70L-ODC
70G-ODC 70-ODC 70M-ODC
CIRCUITRY
DIMENSIONS
For complete dimensional drawings, see pages
L-4 or L-5.
FUSES
G5 Fuses are 5 Amp Littelfuse part number
217005 or equivalent. OpenLine
®
fuses are
3.15 Amp Littelfuse part number 2173.15.
Fuse kits available, see page L-104.
DC Output Modules
FEATURES
• Transient Protection: Meets the
requirements of IEEE 472, "Surge
Withstanding Capability Test"
• SPST, Normally Open
• UL, CSA, CE, TÜV Certified
• Optical Isolation
• OpenLine
®
and G5 Modules
Provide Replaceable 5x20mm
Glass Fuses
• Built-in Status LED
• Lifetime Warranty
Figure 1
Maximum Current Versus
Ambient Temperature
The chart indicates continuous current to limit
the junction temperatures to 115°C. Information
is based on steady state heat transfer in a 2
cubic foot sealed enclosure.
4
3
2
1
-40˚
-20˚
0
20˚
40˚
60˚
80˚
100˚
AMBIENT TEMPERATURE (˚C)
LOAD CURRENT (AMPS)
STANDARD, G5 PACKAGES
MINIATURE PACKAGE
OPENLINE PACKAGE/CH
200 VDC STYLE
Package Style
Std (70-)
Mini (70M-)
G5 (70G-)
OL (70L-)
Specifications
Units
Load Current Range
1
A
0.02-3.5
0.02-3.0
0.02-3.5
0.02-2.0/CH
Surge Current for 1 Sec.
A
5
5
5
5
Maximum Reverse Logic Voltage
Vdc
-5
-5
-5
-5
Isolation Voltage
2
Vrms
4000
4000
4000
2500
Vibration
3
MIL-STD-202
MIL-STD-202
MIL-STD-202
IEC68-2-6
Mechanical Shock
4
MIL-STD-202
MIL-STD-202
MIL-STD-202
IEC68-2-27
Storage Temp. Range
°C
-40 to 125
-40 to 125
-40 to 125
-40 to 100
Operating Temp. Range
°C
-40 to 100
-40 to 100
-40 to 100
-40 to 85
Warranty
Lifetime
Lifetime
Lifetime
Lifetime
1
See Figure 1 for derating.
2
Field to logic and channel-to-channel if Grayhill racks are used.
3
MIL-STD-202, Method 204, 20 G, 10-2000 Hz or IEC68-2-6, 0.15 mm/sec
2
, 10-150 Hz.
4
MIL-STD-202, Method 213, Condition F, 1500 G or IEC68-2-27, 11 mS, 15g.
SPECIFICATIONS: By Package Style
Standard, Mini, G5
OpenLine
®
1
2
3
4
Rx
VDC
DC CONTROL
VOLTAGE
SPIKE
PROTECTION
LOAD
LOAD
DRIVER
CIRCUIT
–
+
–
+
Fuse and status LED in G5 and OpenLine modules only.
TYPICAL WIRING FOR MODULE 0
2.15K
B
A
OPTICAL
ISOLATION
OPTICAL
ISOLATION
DRIVER
CIRCUIT
DRIVER
CIRCUIT
CHANNEL A
CHANNEL B
BASE
OR
RACK
I/O MODULE
PIN #
TERMINAL
BLOCK #
LOAD
DC
SUPPLY
DC
SUPPLY
LOAD
+
–
+
–
1
2
3
4
1
2
3
4
5
6
7
8
9
GND
Vcc
CH. A
CONTROL
CH. B
CONTROL
MODULE ID
I/O
8
