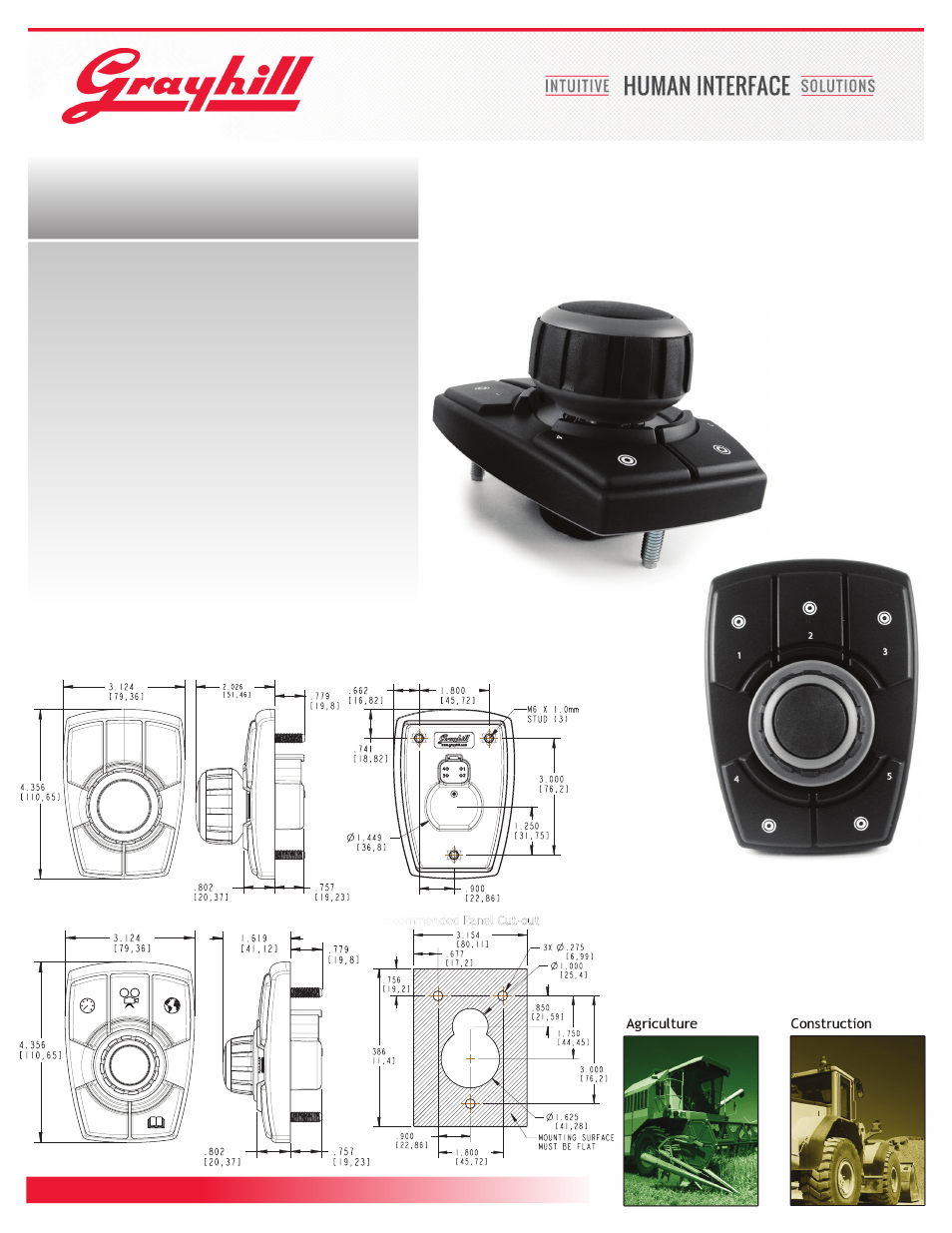

Grayhill Joysticks/NavCoders 3J Series User Manual
Vehicle display controller, Put display functions within reach, Your experts in cab controls

Vehicle Display
Controller
• Three Configurations
- Optical Rotary Encoder
- Encoder with Pushbutton
- Joysticking Encoder with Pushbutton
• J1939 and CANopen versions
• Dimmable LED indicators and legends
• Sealed to IP67
• Vibration and impact resistant
• Operating Temp: -40
o
C to +85
o
C
• Long Life: 500,000 cycles
• Support for multiple key combinations
• Designed for 12/24 volt systems
• Custom legends and configurations
DIMENSIONS
in inches (and millimeters)
www.grayhill.com
Put display functions within reach
- 5 hot keys for rapid navigation
- Scroll with rotary encoder
- Select with pushbutton
- Navigate with joystick
Rotary Encoder version
with Target Legends
Joysticking Encoder
version
Your Experts in Cab Controls
Grayhill specializes in the design, development and
production of human interface controls, including:
- Cab user interface design
- Customized control panels
- CAN-bus interface devices
Esc
Blank keys shown below
ISO Symbols shown below
Recommended Panel Cut-out
www.grayhill.com
