Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

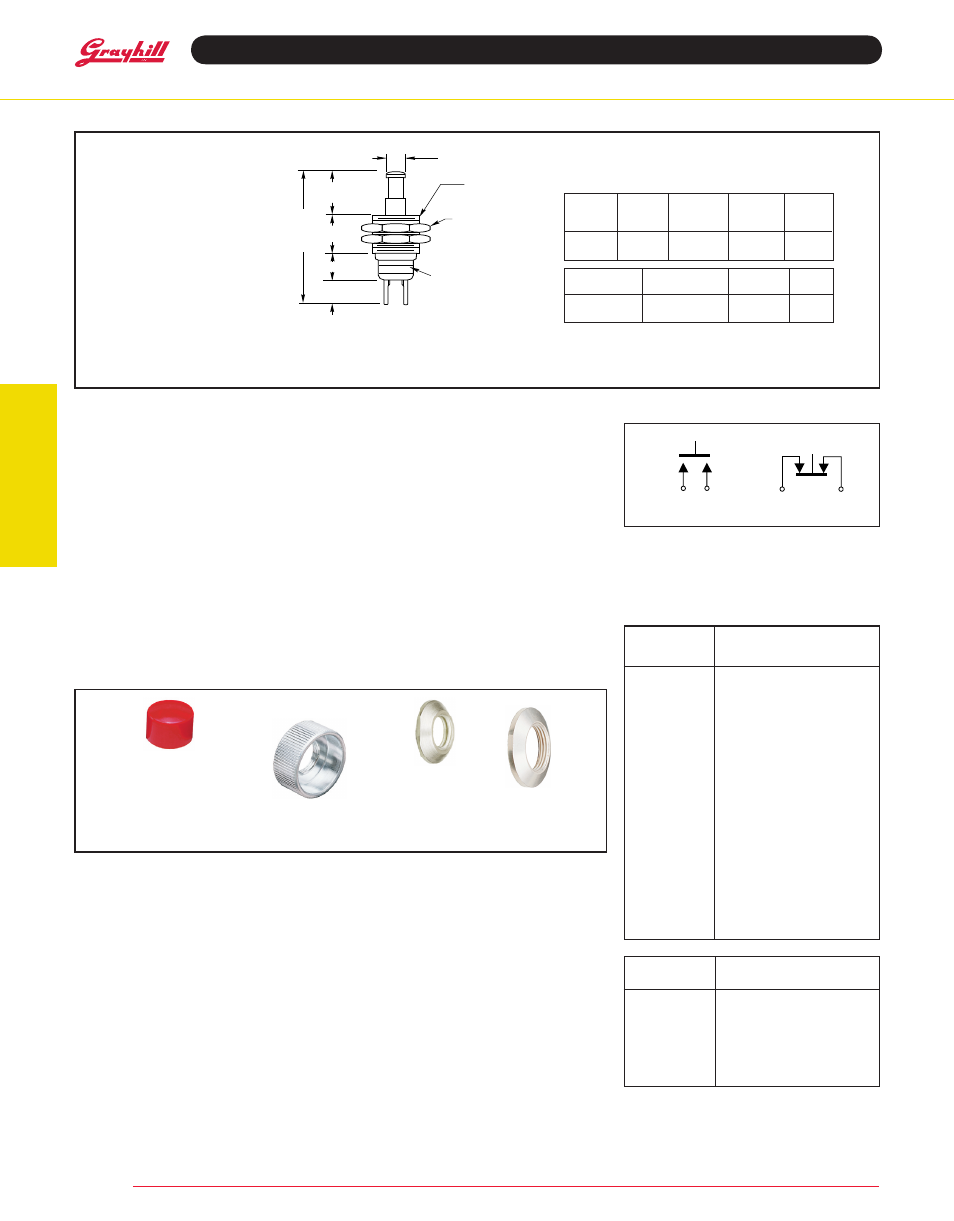

Pushbutton Switches

Butt Contact Pushbutton Switches

diMenSiOnS

in inches (and millimeters)

normally Closed–SPSt With
Push-Pull

30-32

aCCeSSOrieS

Button Cap and Guard

The button cap is available in 3 colors: part number
30B1012-5 is red; part number 30B1012-8 is
white; and part number 30B1012-9 is black. It may
be fastened to the button with adhesive. It may
be used with the following Series 30 switches:
30-1, 30-1UL, 30-2, 30-2UL, 30-3, 30-3UL, 30-15,
30-37, 30-601 BLK, and 30-601 RED.

The button guard, part number 10C1015-1 is
made to be used with 15/32" (11,91) inch diameter
switches to prevent unintentional actuation. It may
be used with the following Series 30 switches:
30-16 BLK, 30-16 RED, 30-17 BLK, 30-17 RED,
30-32 BLK, and 30-32 RED

decorative Mounting nuts

Part Number 30C1023-1 is made for switches
with 1/4" (6,35) inch diameter bushings. It may
be used with the following Series 30 switches:
30-1, 30-1 UL, 30-2, 30-2 UL, 30-3, 30-6, 30-15,
30-37, 30-251 BLK, 30-251 RED, 30-252 BLK,
30-252 RED, 30-601 BLK and 30-601 RED.

Part Number 07C1040-1 is made for switches
with 15/32" (11,91) inch diameter bushings. It may
be used with the following Series 30 switches:
30-16 BLK, 30-16 RED, 30-17 BLK, 30-17 RED,
30-32 BLK and 30-32 RED.

SPeCiFiCatiOnS

rating Criteria

For UL recognized switches, see individual switch
chart. File number is E35289.
Contact resistance: 25 milliohms maximum
on a new switch
Voltage Breakdown: 1,000 Vac between
mutually insulated parts
insulation resistance: 1,000 megohms
minimum
Operating temperature: -40° to +85°C
Mounting torque: 2 inch-pounds

Switch Materials and Finishes

Mounting nut and Cover Bushing: Brass,
tin zinc

Button

Color

Operations

at rated

Load

rating at

115 Vac

resistive

rating at

220 Vac

resistive

1 Amp

1

/

2

Amp 100,000

30-32 RED Red
30-32 BLK Black

Mtg.

Hole

total

travel

action

actuating

Force (oz.)

Part

number

Pull-to-Make

56 ± 16

Part

description

number

and Button Color


30-1*

N.O., Standard, Red

30-2*

N.C., Standard, Black

30-3*

N.O., Black

30-6*

N.C., Red

30-15

N.O., Overtravel, Red

30-16 BLK

Push to Make, Black

30-16 red

Push to Make, Red

30-17 BLK

N.O., Positive Feel, Black

30-17 red

N.O., Positive Feel, Red

30-32 BLK

Pull to Make, Black

30-32 red

Pull to Make, Red

30-37 BLK

N.O., Overtravel, Black

30-251 BLK

N.O., Sealed, Black

30-251 red N.O., Sealed, Red

30-252 BLK

N.C., Sealed, Black

30-252 red N.C., Sealed, Red

30-601 BLK

N.O., Economy, Black

30-601 red N.O., Economy, Red

accessory

Part number

description


30B1012-5

Accessory Cap, Red

30B1012-8

Accessory Cap, White

30B1012-9

Accessory Cap, Black

30C1023-1

Accessory Nut

07C1040-1 Accessory Nut

10C1015-1

Button Guard

accessory Cap

30B1012-5
30B1012-8
30B1012-9

Button Guard

10C1015-1

decorative Mounting nuts

07C1040-1

30C1023-1

CirCuitry

OrderinG inFOrMatiOn

*Add “UL” suffix to part number for UL recognized
switches.

.145 ± .015

31/64"

(3,68 ± 0,38)

(12,30)

Base: Thermoset plastic
Button: Polyester for 30-16 and 30-32; Phenolic
for 30-17, 30-1UL, 30-2, 30-2UL, 30-3UL, 30-6
and 30-6UL; Polycarbonate for all others.
Shorting Bar: Brass with gold over nickel plating
for 30-601; brass with fine silver contact surface
for all others.
terminals: Brass with gold over nickel plating for
30-601; commercial brass with fine silver contact
surface and silver-plated for all others.
Spring: Tinned music wire
Button Cap: Nylon for 30-17; Polyethylene for
30-251 and 30-252.
detent Balls: Carbon steel, nickel-plated
terminal type: Solder lug
O-ring Seal: (30-251, 30-252) Nitrile per
MIL-P-5516

1.87 – .005
(4,75 – 0,13)

A

1.36

(34.5)

REF.

15/32-32
UNS-2A
THREAD

D

C

B

A = .493 – .015

(12,52 – 0,38)
B = .421 – .015
(10,69 – 0,38)
C = .225 –.015
(5,72 – 0,38)
D = .222 – .020
(5,64 – 0,51)

HEX NUT (2)
(SEE H)

H = HEX NUT
9/16 – .010 (14,29 – 0,25)
ACROSS FLATS
3/32 – .010 (2,38 – 0,25) THICK

LABEL*

*PART NUMBER

AND E.I.A. DATE

CODE LABEL

SPSt n.O.

SPSt n.C.
