Butt Contact Pushbutton Switches

normally Open–SPSt With
Overtravel

30-15
30-37

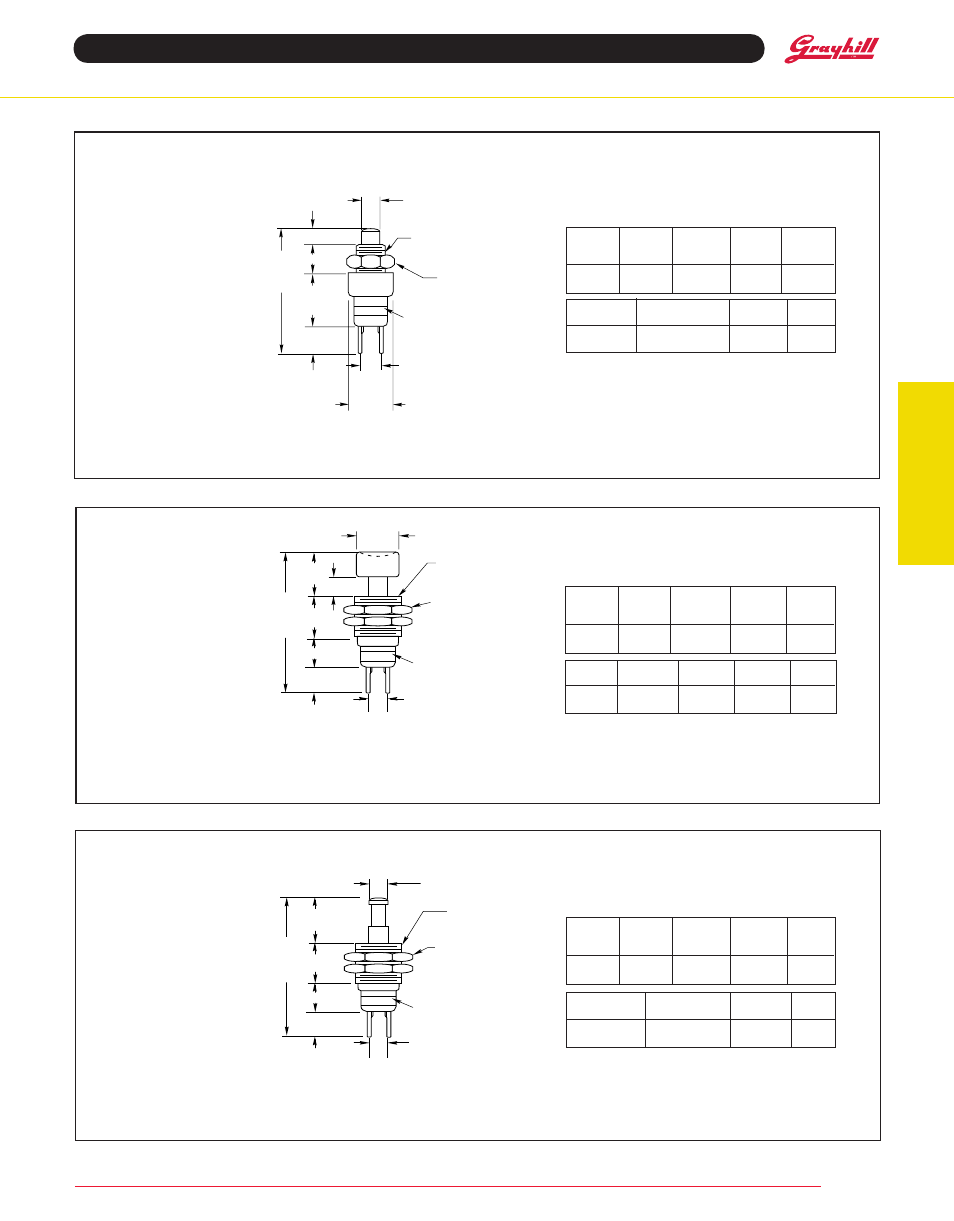

diMenSiOnS

in inches (and millimeters)

normally Open–SPSt With
Positive Feel

30-17*

normally Open–SPSt With
Push-Pull

30-16*

Mtg.

Hole

total

travel

action

actuating

Force (oz.)

Button

Color

30-15

Red

30-37

Black

Part

number

Operations

at rated

Load

rating at

115 Vac

resistive

rating at

220 Vac

resistive

8 ± 4

Button

Color

Operations

at rated

Load

rating at

115 Vac

resistive

rating at

220 Vac

resistive

1 Amp

1

/

2

Amp 100,000

*Complete

Part

number

30-16 RED Red
30-16 BLK Black

Mtg.

Hole

total

travel

action

actuating

Force (oz.)

Push-to-Make

56 ± 16

Momentary

.125 + .020/ - .010

17/64"

.020" Overtravel (3,18 + 0,51/ - 0,25)

(6,75)

1 Amp

1

/

2

Amp

500,000

.145 ± .015

31/64"

(3,68 ± 0,38)

(12,30)

C

.162

± .005

(4,11

± 0,13)

A

1.077

(27,36)

REF.

1/4-32 UNEF-2A
THREAD

.375

± .005

(9,53

± 0,13)

D

B

A = .150

± .015

(3,81

± 0,38)

B = .250

± .010

(6,35

± 0,25)

C = .455

±.015

(11,56

± 0,38)

D = .222

± .020

(5,64

± 0,51)

HEX NUT
(SEE H)

H = HEX NUT
3/8

± .010 (9,53 ± 0,25)

ACROSS FLATS
3/32

± .010 (2,38 ± 0,25)

THICK

LABEL*

.186 REF.
(4.7)

*PART NUMBER

AND E.I.A. DATE

CODE LABEL

.390 ± .010
(9,91 ± 0,25)

15/32-32
UNS-2A
THREAD

A = .392 ± .015

(9,96 ± 0,38)
B = .421 ± .015
(10,69 ± 0,38)
C = .315 ±.015
(8,00 ± 0,38)
D = .222 ± .020
(5,64 ± 0,51)
E = .205 (5,21)
REF.

HEX NUT (2)
(SEE H)

A

E

1.35

(34,3)

REF.

D

C

B

H = HEX NUT
9/16 ± .010 (14,29 ± 0,25)
ACROSS FLATS
3/32 ± .010 (2,38 ± 0,25) THICK

LABEL*

.186 REF
(4.7)

*PART NUMBER

AND E.I.A. DATE

CODE LABEL

.187 ± .005
(4,75 ± 0,13)

A

1.45

(36,8)

REF.

15/32-32
UNS-2A
THREAD

D

C

B

A = .493 ± .015

(12,52 ± 0,38)
B = .421 ± .015
(10,69 ± 0,38)
C = .315 ±.015
(8,00 ± 0,38)
D = .222 ± .020
(5,64 ± 0,51)

HEX NUT (2)
(SEE H)

H = HEX NUT
9/16 ± .010 (14,29 ± 0,25)
ACROSS FLATS
3/32 ± .010 (2,38 ± 0,25) THICK

LABEL*

.186 REF
(4.7)

*PART NUMBER

AND E.I.A. DATE

CODE LABEL

rating at

115 Vac

resistive

rating at

220 Vac

resistive

30-17 RED Red
30-17 BLK Black

Button

Color

*Complete

Part

number

Operations

at rated

Load

1 Amp

1

/

2

Amp

200,000

action

Mtg.

Hole

total

travel

actuating

Force (oz.)

Over

travel

18 ± 4

Momentary .156 ± .015

.046 (1,17)

31/64"

Pos. Feel

(3,96 ± 0,38)

Min.

(12,30)
