Standard Keypads
Keyboards and Keypads

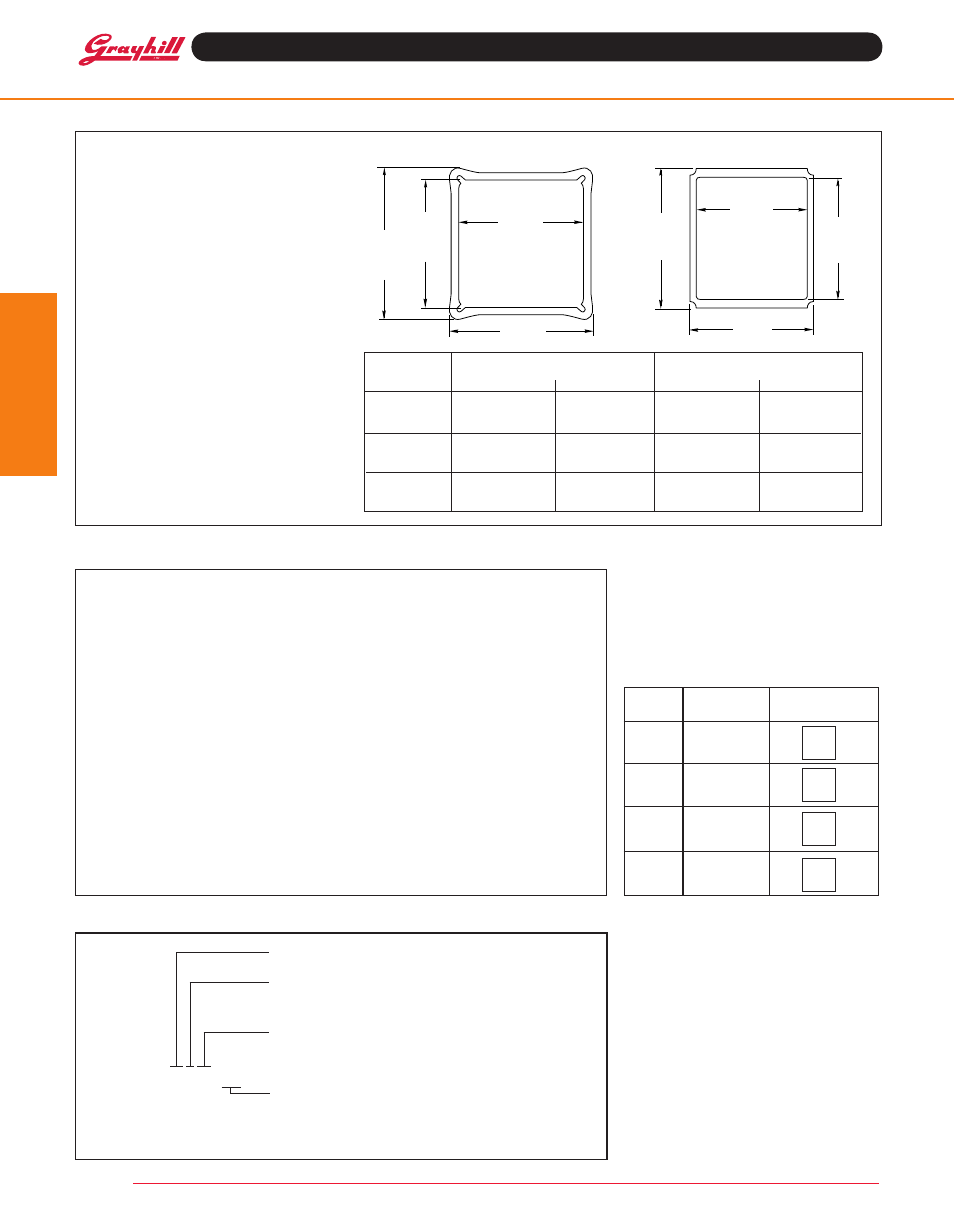

Panel Seal gaSKetS
Subpanel mounting topside mounting
Subpanel 3x4 Part no. 88m2001-2
Subpanel 4x4 Part no. 88m2009-2
Subpanel 5x4 Part no. 88m2019-1
Topside 3x4 Part no. 88m2012-1
Topside 4x4 Part no. 88m2015-1
Topside 5x4 Part no. 88m2018-1
Weatherproof and waterproof your subpanel
and topside mounted keyboards with optional
panel seal gaskets.
Subpanel keyboard gasket is .062" (1,57 mm)
thick; topside keyboard gasket is .094" (2,39
mm).
Material is cellulose fiber, foam, nitrile rubber.
Order gaskets separately from keyboard.
DIM. A
DIM. B
2.710
± .005
(68,83
± 0,13)
3.200
± .005
(81,28
± 0,13)
DIM. C
2.850
± .005
(72,39
± 0,13)
2.500
± .005
(63,5
± 0,13)
DIM. D
Size of Subpanel mount topside mount
Keyboard Dim. a Dim. B Dim. C Dim. D
3x4 2.010 ± .005 2.400 ± .005 1.800 ± .005 2.040 ± .005
(51,05 ± 0,.13) (60,96 ± 0,13) (45,72 ± 0,13) (51,82 ± 0,13)
4x4 2.510 ± .005 2.900 ± .005 2.300 ± .005 2.540 ± .005
(63,75 ± 0,13) (73,66 ± 0,13) (58,42 ± 0,13) (64,52 ± 0,13)
5x4 3.010 ± .005 3.400 ± .005 2.800 ± .005 3.040 ± .005
(76,45 ± 0,13) (86,36 ± 0,13) (71,12 ± 0,13) (77,22 ± 0,13)
inStant CuStom legenDS
available through Distributors
Create your own legends using these 3 items: 1)
a blank keyboard, 2) the clear window overlays
shown on Standard Legend page and 3) a sheet
of legend inserts.
Blank Keyboards
The numbers below order blank keyboards for
the user to legend. For description, refer to the
part numbering scheme below. The keyboards
and overlays are ordered separately.
3x4 Matrix
Part no. 88aB2
3x4 SP/Com Bus Part no. 88aC2
4x4 Matrix Part no. 88BB2
4x4 SP/Com Bus Part no. 88BC2
5x4 Matrix Part no. 88JB2
5x4 SP/Com Bus Part no. 88JC2
legend insert Sheet and Dry transfers
Self-adhesive inserts are die-cut to fit the
orDering inFormation
grayhill Series number
Size option
A = 3x4
B = 4x4
J = 5x4
Circuitry option
B2 = Matrix code
C2 = Single pole/common bus
88aB2–152
Standard legend Choices
3x4 Size: -143, -152, or -172
4x4 Size: -052, -072 or -082
5x4 Size: -252 or -262
available from your local grayhill Distributor.
For prices and discounts, contact a local
Sales Office, an authorized local Distributor or
Grayhill.
button. Legends are printed in black on clear
film in News Gothic Condensed type style. They
include letters A through Z, numbers 0-69,
telephone legends, commonly used words,
symbols and blanks.
Part no. 87aC2046
Use matching dry transfer lettering on blank
inserts of legend sheet: upper and lower case
letters, 0-9, and common symbols.
Small Print
Part no. 87-Dt-2096-088
Medium Print Part no. 87-Dt-2096-125
Large Print Part no. 87-Dt-2096-187
Clear Window overlays
Order separately from keyboards. See also
ordering information.
3x4 Overlay
Part no. 88-101
4x4 Overlay Part no. 88-001
5x4 Overlay Part no. 88-201
PrinteD legenDS
not available through Distributors. For medium
volume applications, or where legends cannot
be produced by the self legend method, you
can order epoxy ink printed legends. Virtually
anything which can be photographed can be
printed. Grayhill will print your legend and then
add the clear window overlay.
type Simulated Character & line
i.D. no. Style & Size limitations *
4gh088
1gh125
3gh187
2gh250
ABCDEFGH
ABCDE
ABCD
END
DATA
LAD
ON
15 ABC
