Standard Keypads
Keyboards and Keypads
orDering inFormation
grayhill Series number
Keyboard Size: A = 3x4, B = 4x4
Circuitry: B2 = Matrix (terminal pin header)
96aB2-102-FS-el
e.l. Panel Backlighting option
EL = Backlit, Blank = Non-backlit
emi/rFi Shielding option
S = Shielded, Blank = Non-shielded
mounting option: F = Front panel mount, R = Rear panel mount
Standard legend Choices
12 Position legends
102 = Black legends on a white button
152 = White legends on a black button
16 Position legends
006 = Black legends on a white button
056 = White legends on a black button
available from your local grayhill Distributor.
For prices and discounts, contact a local
Sales Office, an authorized local Distributor
or Grayhill.
SPeCiFiCationS
rating Criteria
rating at 12 Vdc: 5 milliamps for .5 seconds
Contact Bounce: < 12 milliseconds
Contact resistance: < 300 milliohms max.
Voltage Breakdown: 250 Vac between
components
mechanical operation life: 1,000,000
operations per key
insulation resistance: > 10
12 ohms @ 500
Vdc
Push out Force Per Pin: 5 lbs.
operating Features
travel: .040 minimum
operating Force: 175 ± 40 grams
operating temperature: -30°C to +80°C
material and Finishes
terminal Pin: Phosphor bronze
PC Board: FR-4 glass cloth epoxy
Keypad: Silicone rubber, durometer 50 ± 5
housing: ABS, cycolac FR15
housing Color: Black
Shielding effectiveness
Results shown are typical for a standard Grayhill
Series 84S keyboard. A conductive gasket will
generally increase the shielding, depending on
the size and shape of the gasket and its material.
Data derived for E-Field Radiation.
test method:
Measurements were made with the keyboard
mounted to a brass plate, which in turn was
mounted to a shielded enclosure containing the
receiving equipment. A signal generator provided
the frequency source that was radiated from the
transmitting antenna to the enclosed receiving
antenna. The spacing between antennas was
maintained constant throughout the frequency
range. The effectiveness rating is determined
by establishing a reference reading without
obstruction between the two antennas and
determining the difference between that reading
and the test setup reading.
note:
When measured in actual equipment, shielding
effectiveness is determined by many factors.
This method accurately represents the shielding
effectiveness of the Grayhill Series 84S under
Ideal test conditions.
Frequency rating
m hz in dB
0.1 ≥ 66.2
10 ≥ 94.8
100 90.5
400 64.2
800 42.3
2,000 40.5
6,000 33.1
10,000 34.4
18,000 37.0

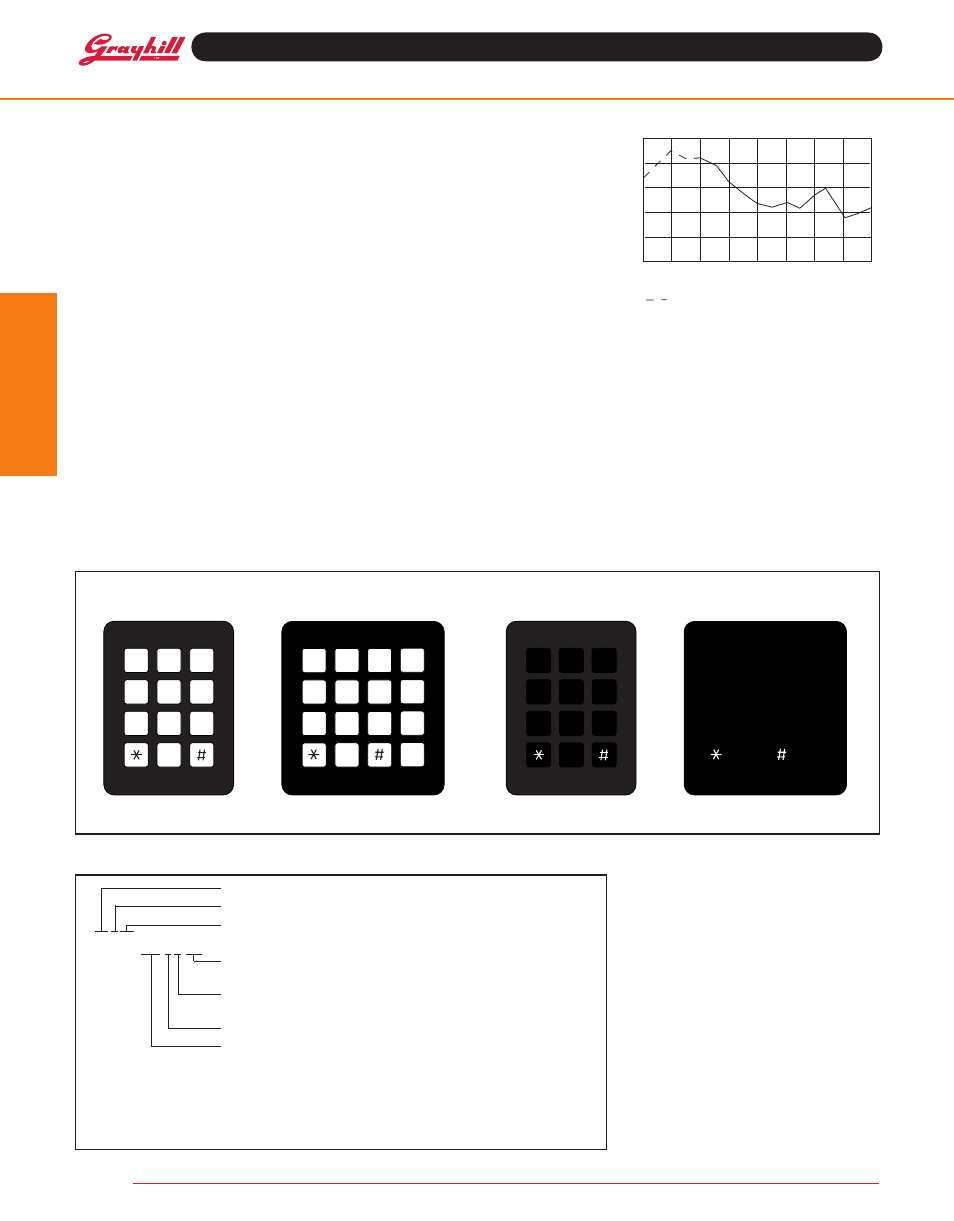

StanDarD legenDS
-102 -006 -152 -056
available through grayhill Distributors To order one of the configurations below, use the dash number shown here; select the keypad
size and code, and order the part number with the appropriate legend dash number.
1
4
7
2
5
8
0
3
6
9
a
B
C
D OPER
0
1
2
aBC
3
DeF
4
ghi
5
JKl
6
mno
7
PrS WXY
9 8
tuV
1
4
7
2
5
8
0
3
6
9
a
B
C
D OPER
0
1
2
aBC
3
DeF
4
ghi
5
JKl
6
mno
7
PrS WXY
9 8
tuV
100
80
60
40
20
0
SHIELDING EFFECTIVENESS OF
SERIES 96 E.L. KEYPADS dB
0.1 10 100 400 800 2000 6000 10000 18000
MHz
Represents shielding effectiveness
greater than or equal to line.
