Standard Keypads
Keyboards and Keypads

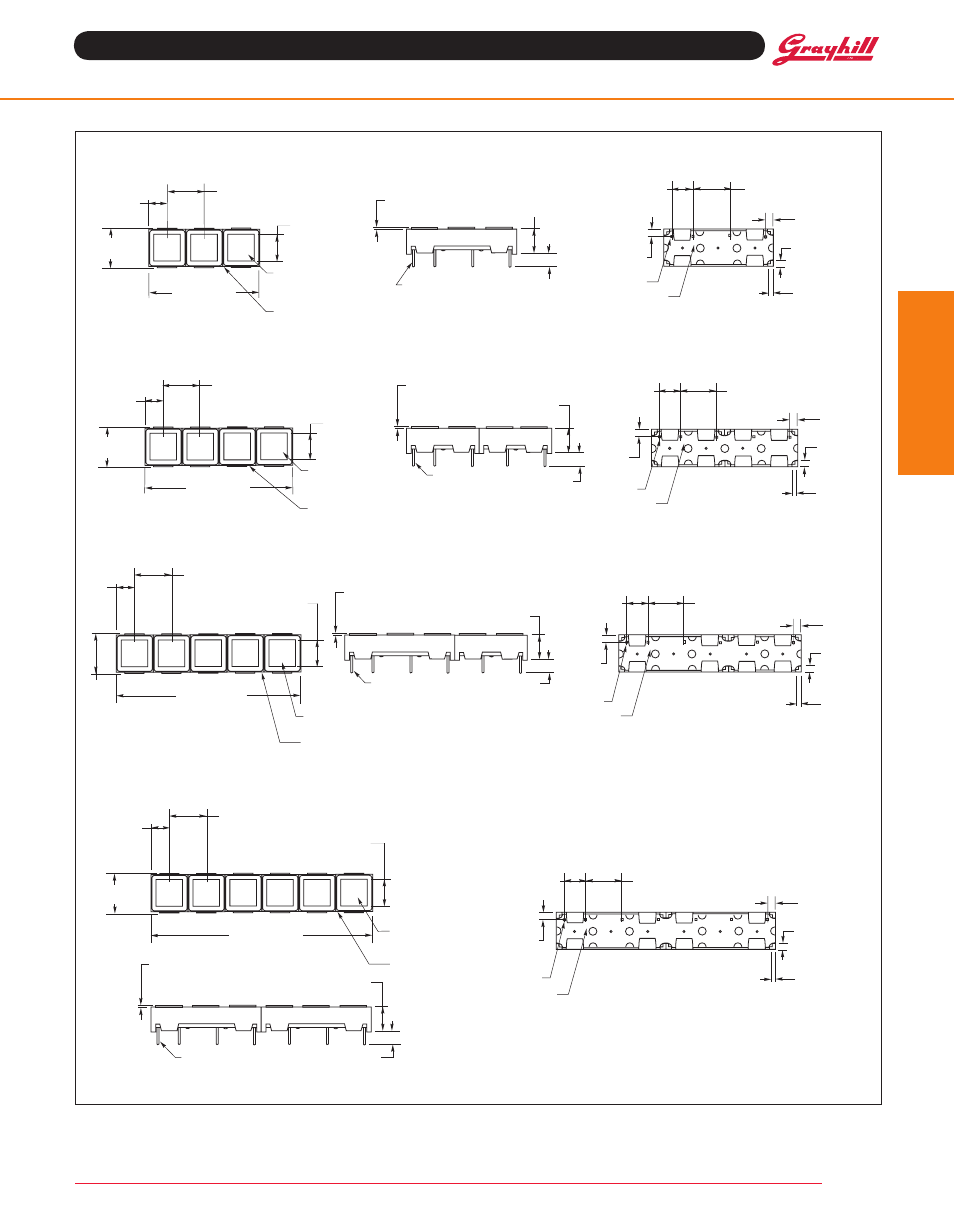

DimenSionS
in inches (and millimeters)
three Button module
Four Button module
Five Button module
Six Button module
A B C .499 ± .010
(12,45 ± 0,25)
.366 ± .010
(9,30 ± 0,25)
SQ. BUTTON
.025 ± .002
(0,64 ± 0,05)
SQ. TERMINAL
.095 ± .010
(2,41 ± 0,25)
SWITCH KEY
IDENTIFICATION
(FOR REF. ONLY)
.500 (12,7) 2 EQ. SPS.
TOL. NON-ACCUM.
± .010 (0,25)
.350 ± .010
(8,89 ± 0,25)
.163 ± .010
(4,14 ± 0,25)
.500 (2,7) 2 EQ. SPS.
TOL. NON-ACCUM.
± .010 (0,25)
.095 ± .010
(2,41 ± 0,25)
.075 ± .010
(1,91 ± 0,25)
.064 ± .010 TYP.
(1,63 ± 0,25) 1.499 ± .010
(37,85 ± 0,25)
.245 ± .010
(6,22 ± 0,25)
.300 ± .010
(7,62 ± 0,25)
.015 ± .010 (0,38 ± 0,25)
BUTTON PROJECTION
A B C
COMMON
TERMINAL I.D.
(FOR REF. ONLY)
TERMINAL PINS AT
BOTTOM OF SWITCH
A B C D .499 ± .010
(12,45 ± 0,25)
.366 ± .010
(9,30 ± 0,25)
SQ. BUTTON
.025 ± .002
(0,64 ± 0,05)
SQ. TERMINAL
.095 ± .010
(2,41 ± 0,25)
SWITCH KEY
IDENTIFICATION
(FOR REF. ONLY)
.500 (12,7) 3 EQ. SPS.
TOL. NON-ACCUM.
± .010 (0,25)
.350 ± .010
(8,89 ± 0,25)
.163 ± .010
(4,14 ± 0,25)
.500 (2,7) 3 EQ. SPS.
TOL. NON-ACCOM.
± .010 (0,25)
.095
± .010
(2,41
± 0,25)
.075 ± .010
(1,91 ± 0,25)
.064 ± .010
TYP.
(1,63 ± 0,25) 1.998 ± .015
(50,55 ± 0,38)
.245 ± .010
(6,22 ± 0,25)
.300 ± .010
(7,62 ± 0,25)
.015 ± .010
(0,38 ± 0,25)
BUTTON
PROJECTION
A B C D
COMMON
TERMINAL I.D.
(FOR REF. ONLY)
TERMINAL PINS AT
BOTTOM OF SWITCH
A B C D E
.499
± .010
(12,45
± 0,25)
.366 ± .010
(9,30 ± 0,25)
SQ. BUTTON
.025 ± .002
(0,64 ± 0,05)
SQ. TERMINAL
.095
± .010
(2,41
± 0,25)
SWITCH KEY IDENTIFICATION
(FOR REF. ONLY)
.350 ± .010
(8,89 ± 0,25)
.163 ± .010
(4,14 ± 0,25)
.095
± .010
(2,41
± 0,25) .075 ± .010
(1,91 ± 0,25)
.064 ± .010
TYP.
(1,63 ± 0,25)
2.498 ± .015
(63,25 ± 0,38)
.500 (12,7) 4 EQ. SPS.
TOL. NON-ACCUM.
± .010 (0,25)
.245
± .010
(6,22
± 0,25)
.500 (2,7) 4 EQ. SPS.
TOL. NON-ACCUM.
± .010 (0,25) .300 ± .010
(7,62 ± 0,25)
.015 ± .010
(0,38 ± 0,25)
BUTTON
PROJECTION
B A C D E
COMMON
TERMINAL I.D.
(FOR REF. ONLY)
TERMINAL PINS AT
BOTTOM OF SWITCH
A B C D E F .499 ± .010
(12,45 ± 0,25)
.366 ± .010
(9,30 ± 0,25)
SQ. BUTTON
.025 ± .002
(0,64 ± 0,05)
SQ. TERMINAL
.095 ± .010
(2,41 ± 0,25)
SWITCH KEY
IDENTIFICATION
(FOR REF. ONLY)
.350 ± .010
(8,89 ± 0,25)
.163 ± .010
(4,14 ± 0,25)
.095 ± .010
(2,41 ± 0,25)
.075 ± .010
(1,91 ± 0,25)
.064 ± .010 TYP.
(1,63 ± 0,25)
.500 (2,7) 5 EQ. SPS.
TOL. NON-ACCUM.
± .010 (0,25) .300 ± .010
(7,62 ± 0,25)
2.998 ± .015
(75,95 ± 0,38)
.500 (12,7) 5 EQ. SPS.
TOL. NON-ACCUM.
± .010 (0,25)
.245 ± .010
(6,22 ± 0,25)
.015 ± .010
(0,38 ± 0,25)
BUTTON
PROJECTION
B A C D E F
COMMON
TERMINAL I.D.
(FOR REF. ONLY)
TERMINAL PINS
AT BOTTOM OF
SWITCH
