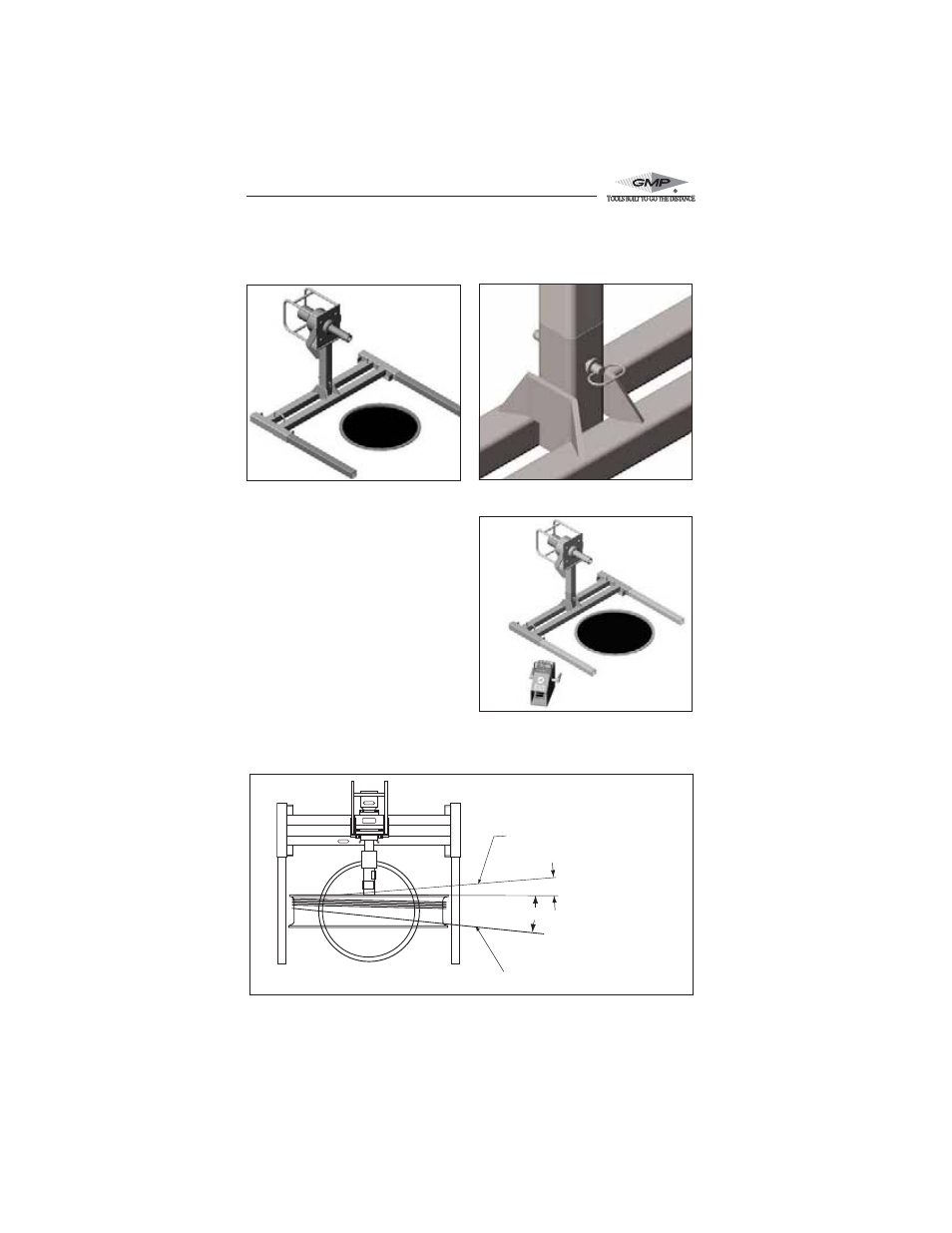

2. Place the hydraulic motor assembly into the puller stand socket with the shaft
extending over the pull box or manhole as shown in Fig. 2. Install hitch pin to
secure motor assembly in stand as shown in Fig. 2a.
3. Place foot control valve on
ground near puller assembly
as shown in Fig. 3.
Position puller over manhole as shown in Fig. 3a.
7
Figure 2a (Hitch Pin Detail)
10 °
10 °
CABLE UNDERGROUND
CABLE COMING OFF CAPSTAN
Figure 3
Figure 3a
Figure 2
