2.0 G
ENERAL
S
AFETY
P
RECAUTIONS
1. Use a piece of cardboard to check for leaks. Do not use your hands.
2. Visually inspect hoses periodically and replace if worn or damaged. Do not
exceed the working pressure of the hoses or fittings.
3. Maintain complete coordination with other members of the crew, giving them
clear instructions by hand signal or reliable radio communication.
4. As much as possible, do not stand where there is the danger of being struck
by the pulling rope or cable if is should fail or snag.
5. When working around the cable puller, do not wear loose fitting clothing that
may become entangled with capstan and cause possible serious injury.
6. Keep hands safely away from capstan to prevent from getting
caught or pinched.
3.0 T
ECHNICAL
S
PECIFICATIONS
Hydraulics Pressure: 2000-2250 PSI (138-155 bar)
Hydraulics Flow: 5-15 GMP (18.9-56.8 LPM)
Hydraulics Pulling capacities: 1,000 Lbs max. (455 Kg) line tension on up to a 42"
(1067 mm) diameter capstan.

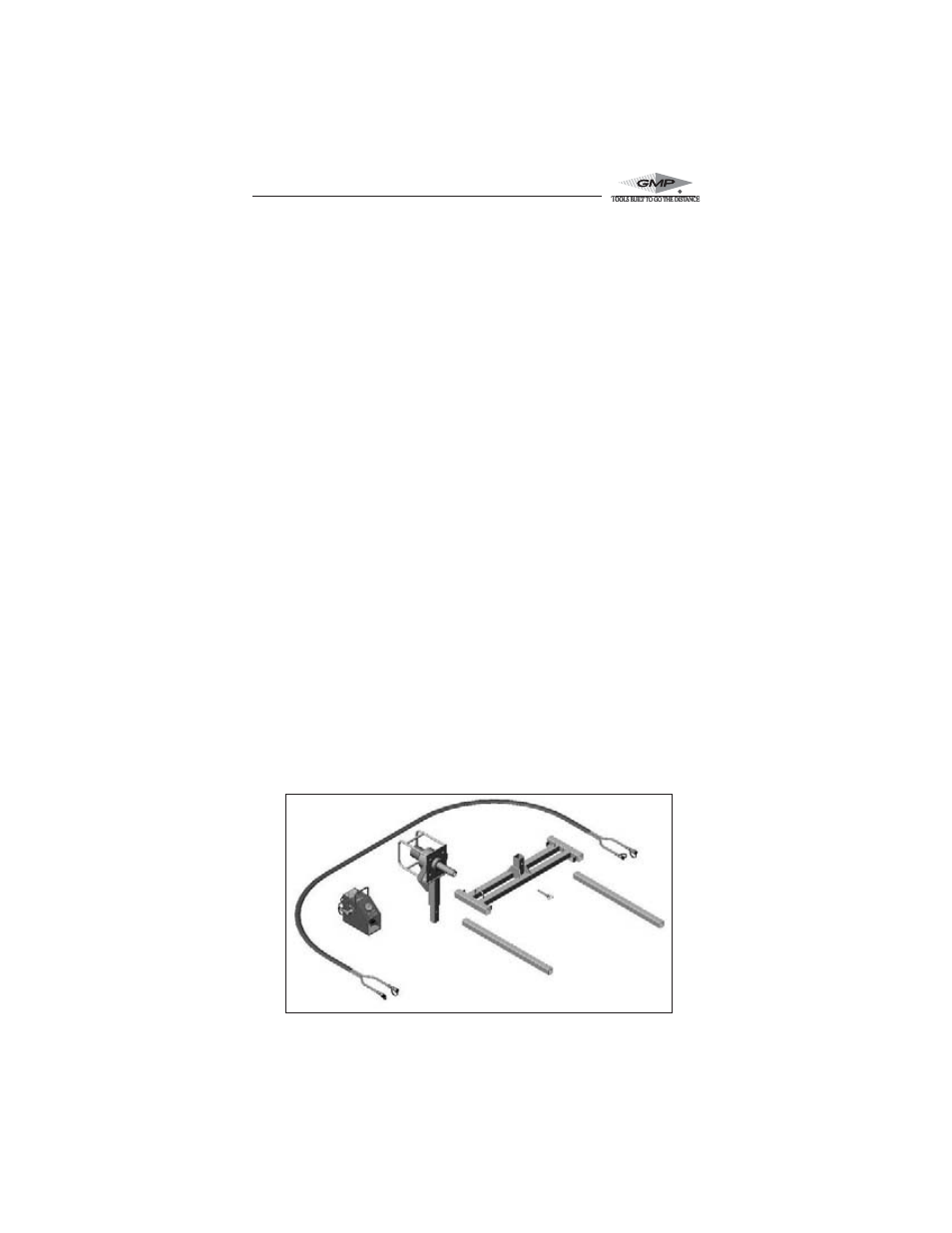

4.0 C
OMPONENTS
I
NCLUDED WITH
GMP #70483
A. (1) hydraulic hoses (2) 1/2" diameter GMP P/N 30901
x 20 feet with quick disconnect fittings
B. (1) hydraulically limited foot control valve GMP P/N 31117
C. (1) hydraulic motor assembly. GMP P/N 31115
D. (1) self support frame. GMP P/N 31116
E. (2) extension legs for self support frame. (Included with GMP P/N 31116)
F. (1) hitch pin with lynch pin attached. (Included with GMP P/N 31116)
3
A.
B.
C.
D.
E.
F.
