Gr20 series, Gr25 series, Item not shown – Gast 16 AM User Manual
Page 13
13
REF# DESCRIPTION
QTY
PART NO.
1
GEAR HOUSING
1
AC737
2
GEAR HOUSING COVER
1
AC736
3
GEAR SHAFT
1
AC739
4
CLUSTER GEAR
1
AC738
5
SNAP-RING
1
AE189
6
BEARING
1
AE196A
7
SEAL
1
AA517A
8
BEARING
1
AA498
9
BEARING
1
AE195
10
O-RING
1
AD823
11
BEARING
1
AE197
12
SEAL
1
AA623D
13
SCREWS
4
BB542
14
PIPE PLUG
2
BA500
15
SET SCREW
2
BB626
***
DOWEL PIN
2
AE882
GR11 SERIES

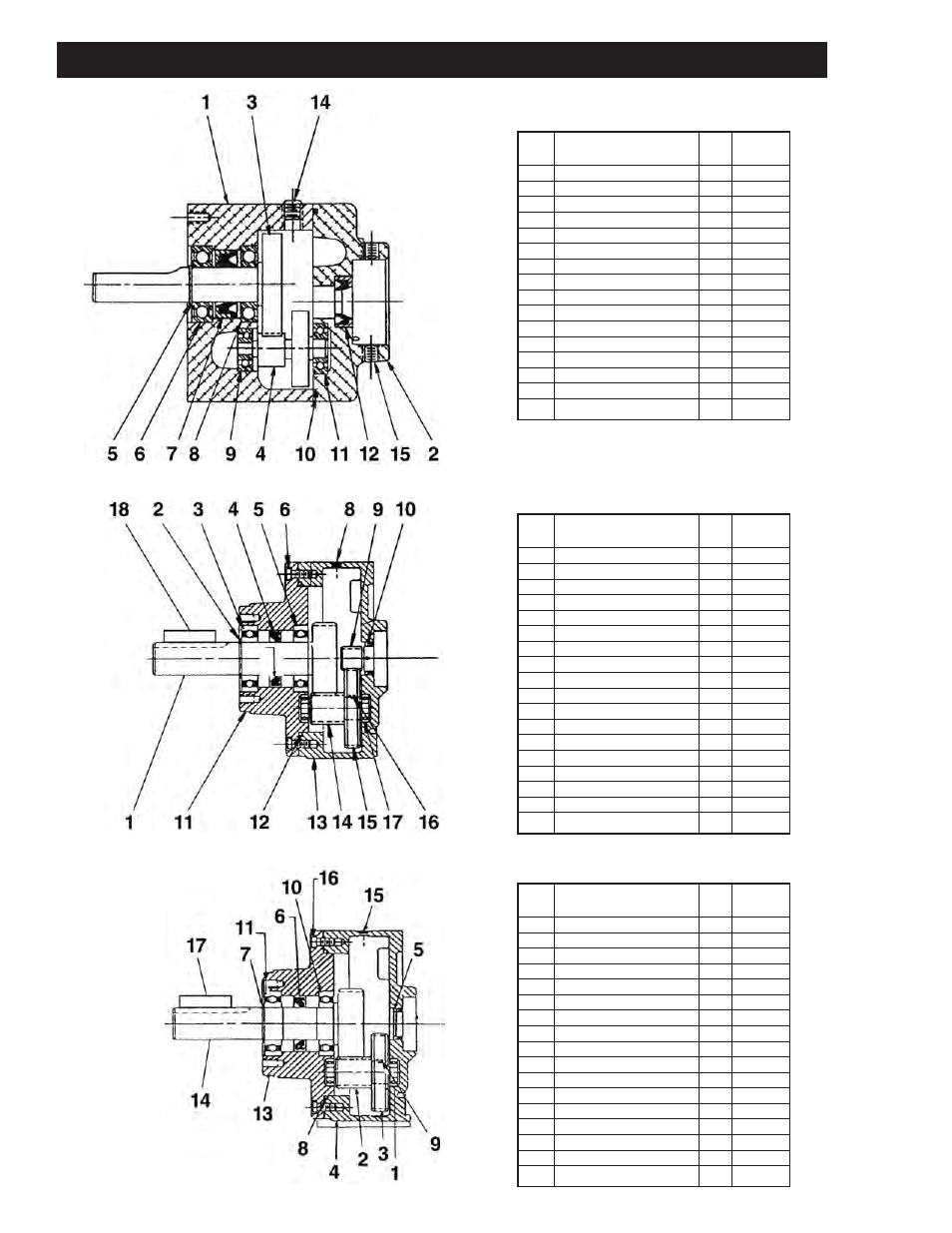

EXPLODED PRODUCT VIEWS, PARTS & ORDERING INFORMATION
REF# DESCRIPTION
QTY
PART NO.
1
GEAR SHAFT - OUTPUT
1
AE848
2
RETAINING RING
1
AE853
3
BEARING
1
AE858
4
OIL SEAL
1
AE852
5
BEARING
1
AE857
6
SCREW
6
BB652
***
DOWEL PIN
2
AF482
8
MAGNETIC DRAIN PLUG
2
AH471
9
GEAR - INPUT
1
AA294
10
OIL SEAL
1
AE851
11
HOUSING COVER
1
AE849
12
O-RING
1
AE854
13
GEAR HOUSING
1
AE850
14
GEAR SHAFT
1
AE845
15
GEAR - INTERMEDIATE
1
AE846
16
KEY
1
AE855
17
BEARING
2
AG549
18
KEY
1
AC628
GR20 SERIES
REF# DESCRIPTION
QTY
PART NO.
1
BEARING
2
AG549
2
GEAR SHAFT
1
AE845
3
GEAR INTERMEDIATE
1
AE846
4
GEAR HOUSING
1
AE850
5
SEAL
1
AE851
6
SEAL
1
AE852
7
RETAINING RING
1
AE853
8
O-RING
1
AE854
9
KEY
1
AE855
10
BEARING
1
AE857
11
BEARING
1
AE858
***
DOWEL PIN
2
AF482
13
HOUSING COVER
1
AH278
14
GEAR SHAFT - OUTPUT
1
AH279
15
MAGNETIC DRAIN PLUG
2
AH471
16
SCREWS
6
BB652
17
KEY
1
AC628
GR25 SERIES
*** Item not shown.
*** Item not shown.
