11

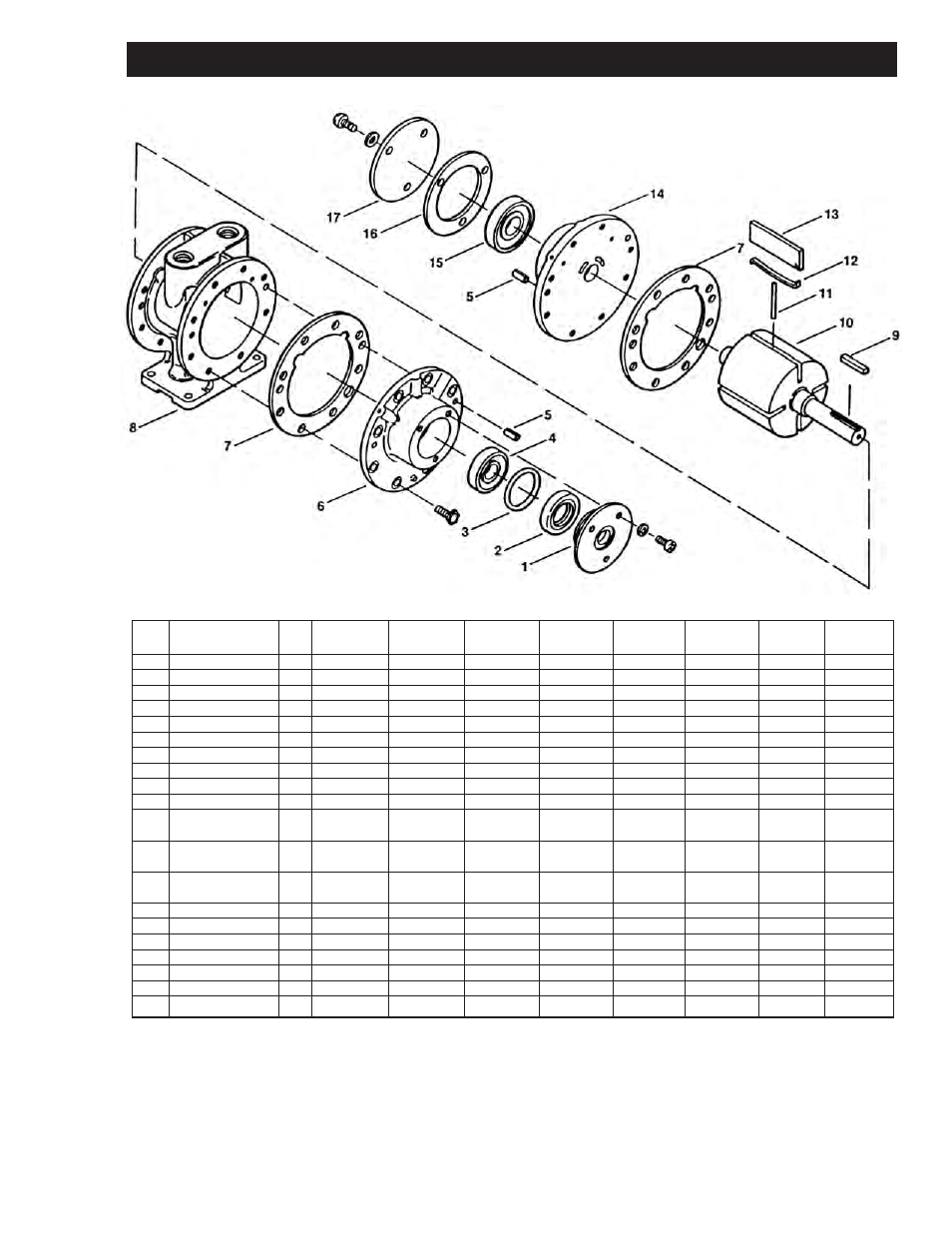

EXPLODED PRODUCT VIEW, PARTS & ORDERING INFORMATION 8AM SERIES
REF# DESCRIPTION QTY 8AM-FRV-2B 8AN-NRV-5B 8AM-NRV-28A 8AM-FRV-30A 8AM-NRV-32A 8AM-NRV-42A 8AM-ARV-70 8AM-ARV-71
METRIC METRIC
1 DRIVE END CAP 1 AC835A AC835A AC988 AC835A AC988 AC835A AC988 AC988
2 ∆ SHAFT SEAL 1 AC839 AC839 AB936 AC839 AB936 AC839 AK420 AK420
3 ∆ O-RING 1 AC808 AC808 AC989 AC808 AC989 AC808 AC989 AC989
4 ∆ DRIVE END BEARING 1 AA735B AA735B AB927 AA735B AB927 AA735B AB927 AB927
5 DOWEL PIN 4 AB162 AB162 AB162 AB162 AB162 AB162 AB162 AB162
6 DRIVE END PLATE 2 AC964 AC963 AC965 AC964 AC965 AC963 AK421 AK421
7 ∆ BODY GASKET 2 AC888 AC888 AC888 AC888 AC888 AC888 AC888 AC888
8 BODY 1 AC877A AC878C AC878C AC877A AC878C AC878C AC878G AC878G
9 KEY 1 AB136D AB136D AB136D AB136D AB136D AB136D AK668 AK668
10 ROTOR ASSEMBLY 1 AC977 AC977 AC986 AC977A AC986A AC977A AC986D AC986C
11 ∆ PUSH PIN 2 AC879 AC879 AC879 AC879
4 AC879 AC879 AC879 AC879
12 ∆ VANE SPRING 4 AC817 AC817 AC817 AC817
8 AC817 AC817 AC817 AC817
13 ∆ VANE 4 AC816 AC816 AC816 AC816
8 AC816 AC816 AC816 AC816
14 DEAD END PLATE 1 AC964 AC964 AC964 AC964 AC964 AC964 AC964 AC964
15 ∆ DEAD END BEARING 1 AC894B AC894B AC894B AC894B AC894B AC894B AC894B AC894B
16 ∆ END CAP GASKET 1 AC837 AC837 AC837 AC837 AC837 AC837 AC837 AC837
17 DEAD END CAP 1 AC836 AC836 AC836 AC836 AC836 AC836 AC836 AC836
*** MUFFLER ASSEMBLY 1 AC990 AC990 AC990 AC990 AC990 AC990 AC990 AC990
*** MUFFLER FELT 1 AC993 AC993 AC993 AC993 AC993 AC993 AC993 AC993
*** SERVICE KIT 1 K210 K210 K211 K283 K282 K283 K282A K282B
8AM SERIES
*** Item not shown.
∆ Denotes parts included in the Service Kit.
For specific OEM models, please consult the factory.
When corresponding about or ordering parts, please give complete model and serial numbers.
Exploded views are shown for reference only. Units may vary depending upon specific model.
