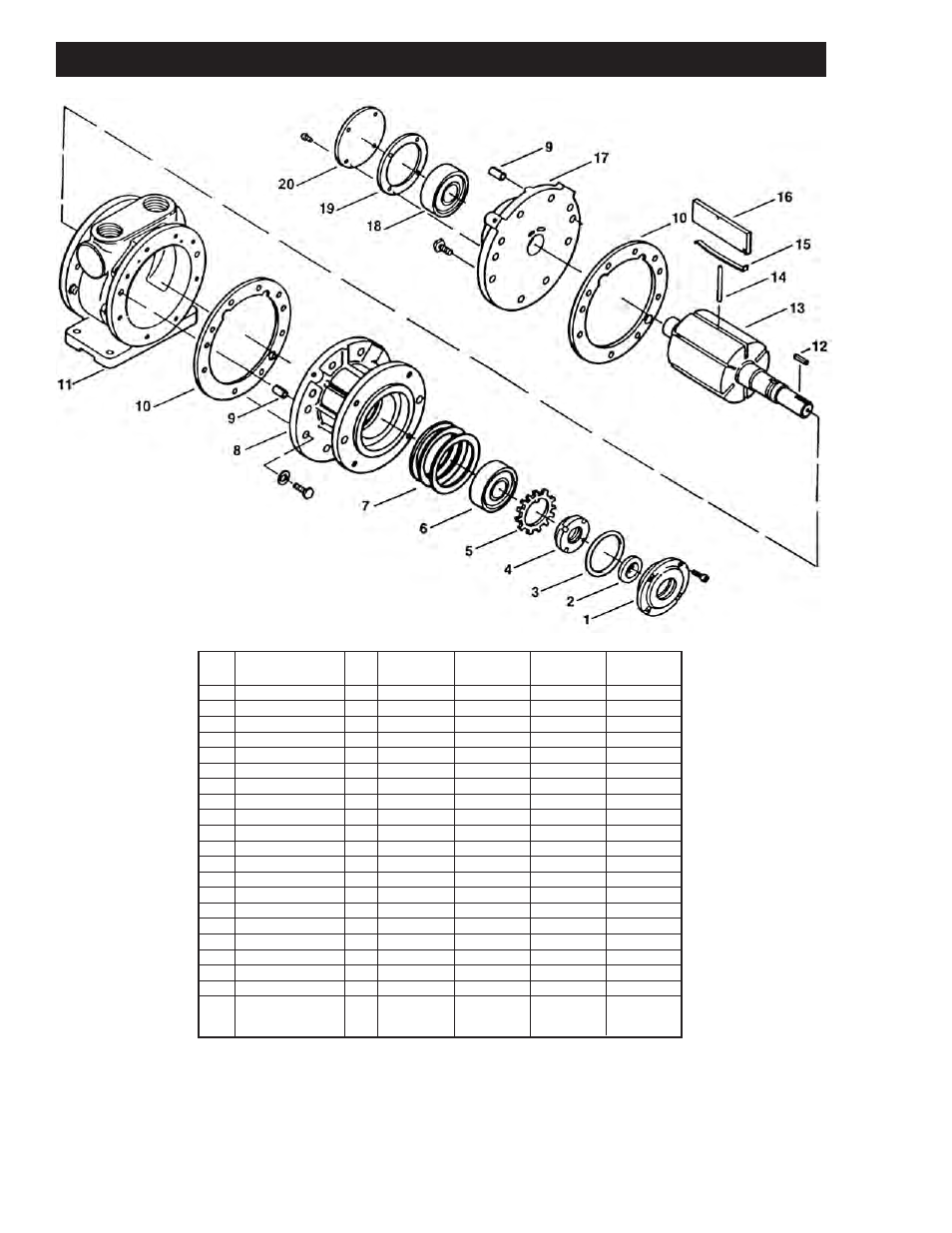

EXPLODED PRODUCT VIEW, PARTS & ORDERING INFORMATION
16AM SERIES
REF# DESCRIPTION
QTY
16AM-FCC-2
16AM-FRV-2
16AM-FRV-13
16AM-FCW-28
1
DRIVE END CAP
1
AD816
AD816
AD816
AD816
2 ∆
SEAL
1
AC627
AC627
AC627
AC627
3 ∆
O-RING
1
AD823
AD823
AD823
AD823
4
LOCKNUT
1
AD784
AD784
AD784
AD784
5 ∆
LOCKWASHER
1
AD712
AD712
AD712
AD712
6 ∆
DRIVE END BEARING
1
AB777A
AB777A
AB777A
AB777A
7
SPACER
AD786
AD786
AD786
AD786
8
DRIVE END PLATE
1
AD771A
AD820A
AC323
9
DOWEL PIN
4
AB162A
AB162A
AB162A
AB162A
10 ∆
SPACER GASKET
2
AD788
AD788
AD788
11
BODY
1
AD770
AD819
AD819
AD770B
12
DRIVE KEY
1
AC628
AC628
AB136D
AC628
13
ROTOR ASSEMBLY
1
AD775
AD794
AE807
14 ∆
PUSH PIN
3
AD822
AD822
15 ∆
VANE SPRING
6
AD796A
AD796A
16 ∆
VANE
6
AD781
AD795
AD795
AD781
17
DEAD END PLATE
1
AD773A
AD821A
AD821A
18 ∆
DEAD END BEARING
1
AD802
AD802
AD802
AD802
19
END CAP GASKET
1
AG406
AG406
AG406
AG406
20
DEAD END CAP
1
AG405
AG405
AD405
AG405
***
SERVICE KIT
1
K212
K213
K213
K212
16AM SERIES
*** Item not shown.
∆ Denotes parts included in the Service Kit.
For specific OEM models, please consult the factory.
When corresponding about or ordering parts, please give complete model and serial numbers.
Exploded views are shown for reference only. Units may vary depending upon specific model.
