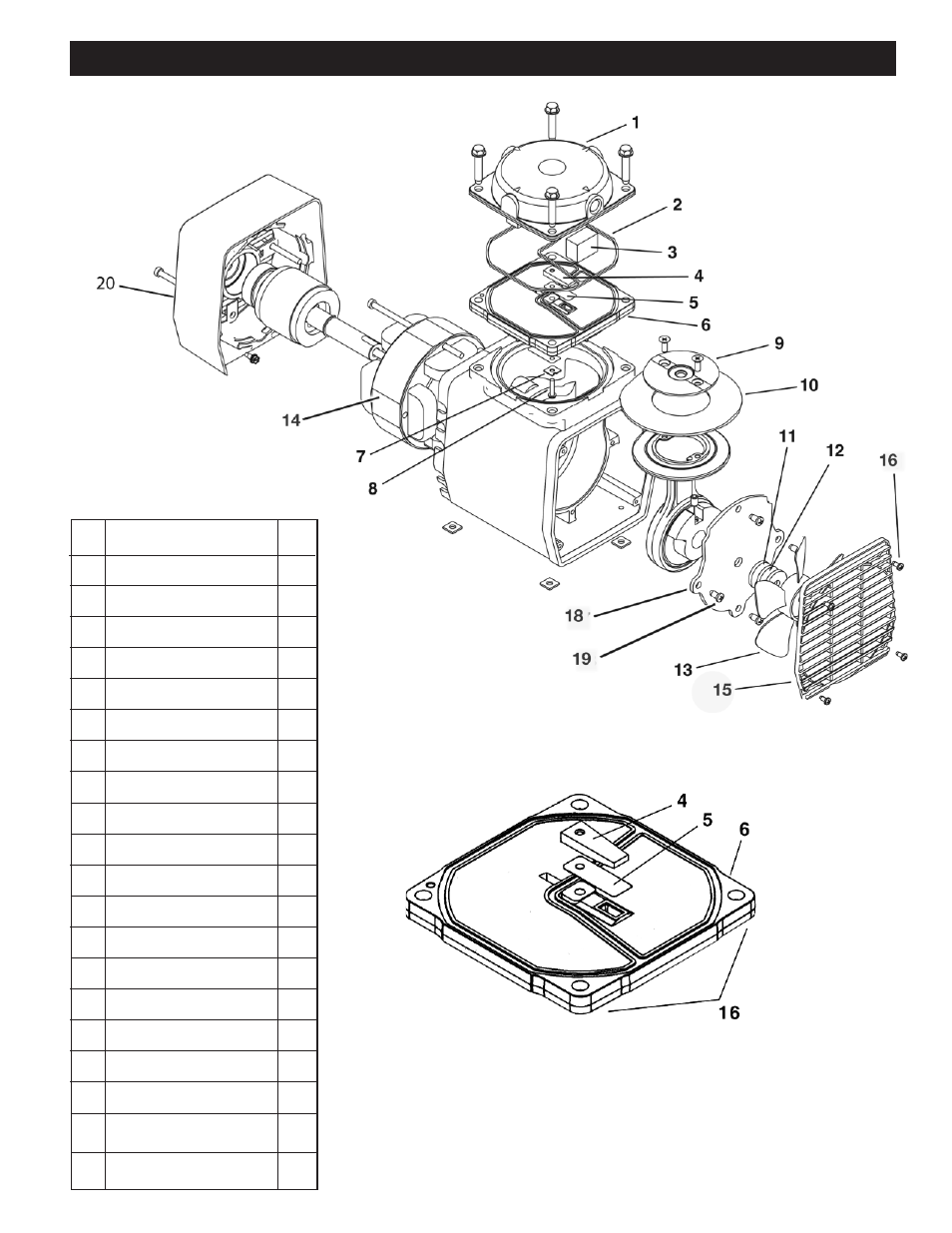

EXPLODED PRODUCT VIEW - MODEL DOA/DOL PARTS EXPLANATION
4
REF DESCRIPTION QTY
1 HEAD 1
2 HEAD O-RING 1
3 FILTER/MUFFLER ELEMENT 2
4 VALVE LIMITER 1
5 LEAF VALVE 2
6 VALVE PLATE 1
7 VALVE RETAINER 1
8 VALVE SCREW 1
9 RETAINER PLATE 1
10 DIAPHRAGM–VACUUM 1
11 FELT SPACER 3
12 SPACER 1
13 FAN - DOA, DOL 1
14 ELECTRIC MOTOR 1
15 GRILLE 1
16 RIVET 4
17 VALVE PLATE ASSEMBLY 1
18 CRANKCASE COVER 1
19 CRANKCASE COVER SCREW 2
20 FUSE 2
