MAINTENANCE
Do not attempt to replace the connecting rod or motor bearings.
If after cleaning the unit and/or installing a new valve, the unit still
does not operate properly, contact your representative, or the
factory, or return the pump to an Authorized Service Facilities.
Before attempting repair, determine if the pump has been
exposed to/or contains biological, toxic, or radioactive materials,
so that the repair personnel are not exposed to these items.
Follow these steps to replace the valve:
1) Disconnect pump from electrical power.
WARNING
Always disconnect power source before servicing. Failure to do
so can result in personal injury and/or property damage.
2) Vent all air lines to the pump to remove pressure.
3) Note the direction of the arrows so you can orient the pump
head correctly during reinstallation.
4) Remove the four corner head screws and remove the head,
valve, and valve plate.
5) Clean the pump head and valve plate using water-based
solvents.
6) Ensure the diaphragm is centered in the recessed area of the
bracket with no bends or folds.
7) Place the new valve on the valve plate so that the holes in the
valve fit over the correct pins in the valve plate.
8) Assemble the head by fitting the correct holes in the head
onto the pins in the valve plate.
9) Place the entire head, valve, and valve plate assembly on top
of the bracket, by aligning the four holes and orienting the ports
in your desired position.
10) Torque the head screws to 17 to 21 in-oz. into the body.
CAUTION
Do not over-tighten head screw(s). To do so can risk stripping
the plastic threads.
SYMPTOM: OVERHEATING
TROUBLESHOOTING GUIDE
SYMPTOM: WON’T START
Possible Cause:
-Electrical Connection
-Wrong/Low Voltage
-Pressure/Vacuum on Head
Point to Check:
-Ensure electrical
power is supplied
and inspect
-Inspect relief valve
Remedy:
-Check plug or wire
connection
-Apply proper voltage
-Reset or replace
relief valve
SYMPTOM: EXCESSIVE NOISE
Possible Cause:
-Wrong Voltage
-Hose or plumbing leak
Point to Check:
-Inspect power supply
-Inspect hoses for
cracks
Remedy:
-Apply proper voltage
-Replace hose
Possible Cause:
-Dirty Filter
-Low or High Voltage
-Dirty Valves
Point to Check:
-Inspect Filter
-Inspect Power Supply
-Remove Head and
inspect valve
Remedy:
-Replace Filter
-Apply proper voltage
-Clean/Replace Valve
SYMPTOM: LOW PRESSURE/LOW VACUUM
Possible Cause:
-Dirty Filter
-Low voltage
-Damaged/Contaminated
Diaphragm
-Dirty Valve
Point to Check:
-Inspect filter
-Inspect power supply
-Remove Head & Valve
Plate and inspect
Diaphragm
-Remove Head and
inspect Valve
Remedy:
-Replace Filter
-Supply proper
electrical power
-Send unit to an
Authorized Service
Facility
-Clean/Replace Valve
AUTHORIZED SERVICE FACILITIES
Gast Mfg. Inc.
2550 Meadowbrook Rd
Benton Harbor, MI 49022
TEL: 269-926-6171
FAX: 269-927-5727
www.gastmfg.com
Air Oil Products
301 30th Street
Auburn WA 98002
Ph: 253/735-5449
Ph: 1-800-282-2672
Fax: 253/735-5496
www.air-oilproducts.com
Wainbee Limited
215 Brunswick Blvd.
Pointe Claire, Quebec
Canada H9R 4R7
Ph: 514-697-8810
Fax: 514-697-3070
www.wainbee.ca
Gast Mfg. Inc.
505 Washington Ave.
Carlstadt, NJ 07072
TEL: 201-933-8484
FAX: 201-933-5545
www.gastmfg.com
Hydraulic & Pneumatic Sales
11100 Park Charlotte Blvd
Charlotte, NC 28273
Ph: 704/588-3234
Fax: 704/588-1569
www.hpsales.com
Wainbee Limited
5789 Coopers Ave.
Mississauga, Ontario
Canada L4Z 3S6
Ph: 416-213-7202
Fax: 416-213-7207
www.wainbee.ca
Brenner Fiedler & Assoc.
13824 Bentley Place
Cerritos, CA 90701
TEL: 800-843-5558
TEL: 310-404-2721
FAX: 310-404-7975
www.brenner-fiedler.com
Gast Mfg. Co. Ltd.
Beech House, Knaves
Beech
Business Centre, Loudwater
High Wycombe, Bucks
HP 10 9SD England
Ph: 44 628 532600
Fax: 44 628 532470
www.gastltd.com
NOTE: General Correspondence
should be sent to-Gast Mfg. Inc./
A Unit of IDEX Corp.,
P.O. Box 97,
Benton Harbor, MI 49023-0097
Ph: 269/926-6171
Fax: 269/925-8288
www.gastmfg.com
Head Screws
Head/Cover
Valve
Valve Plate
Replacement Parts
Head Screws..............SCR1022
Head/Cover.................HDC1007
Valve...........................VLV1009
Valve Plate..................VPL1007

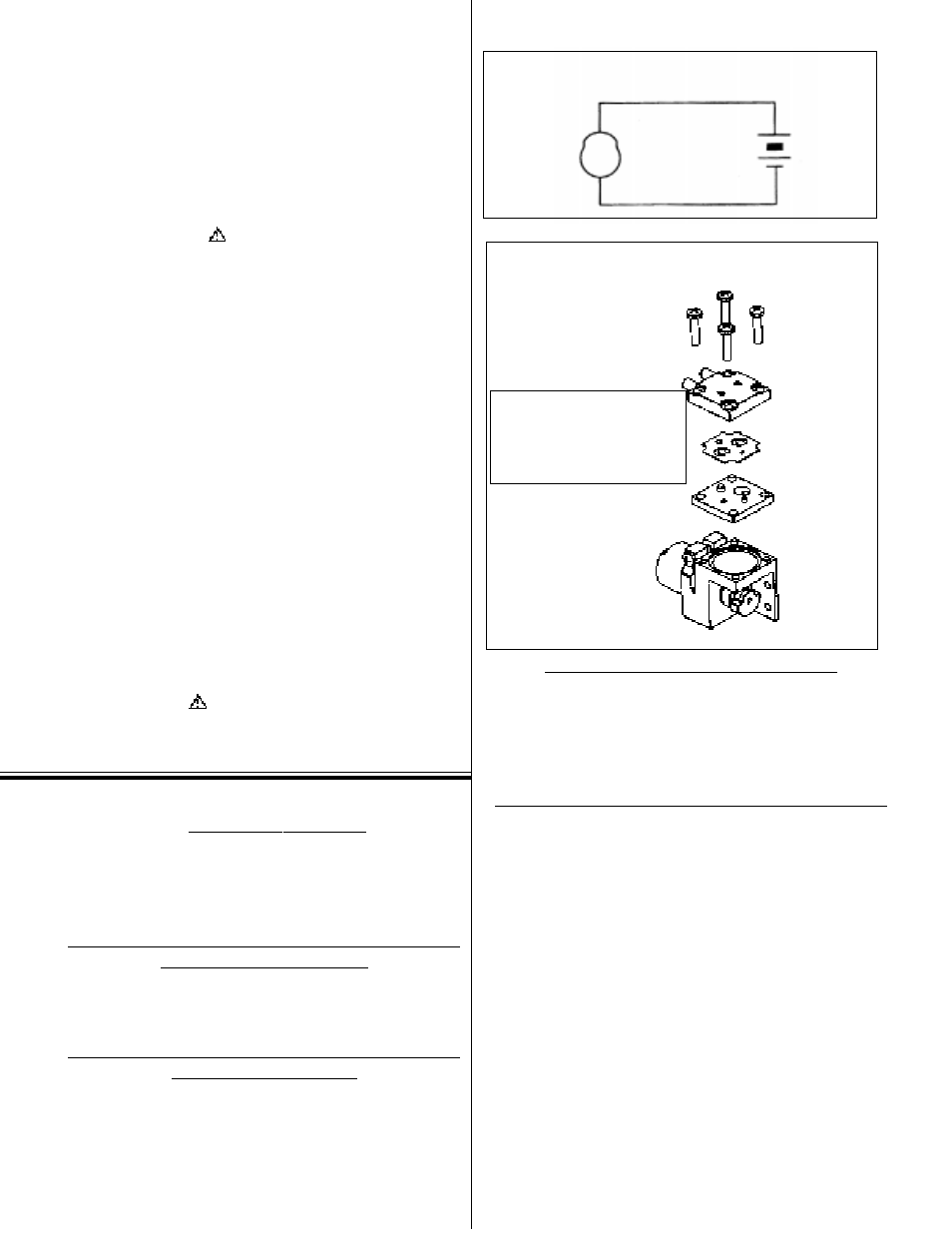

Exploded View and
Parts Ordering Information
DC WIRING
RED/WHITE (
+
)
BLACK
M
+
