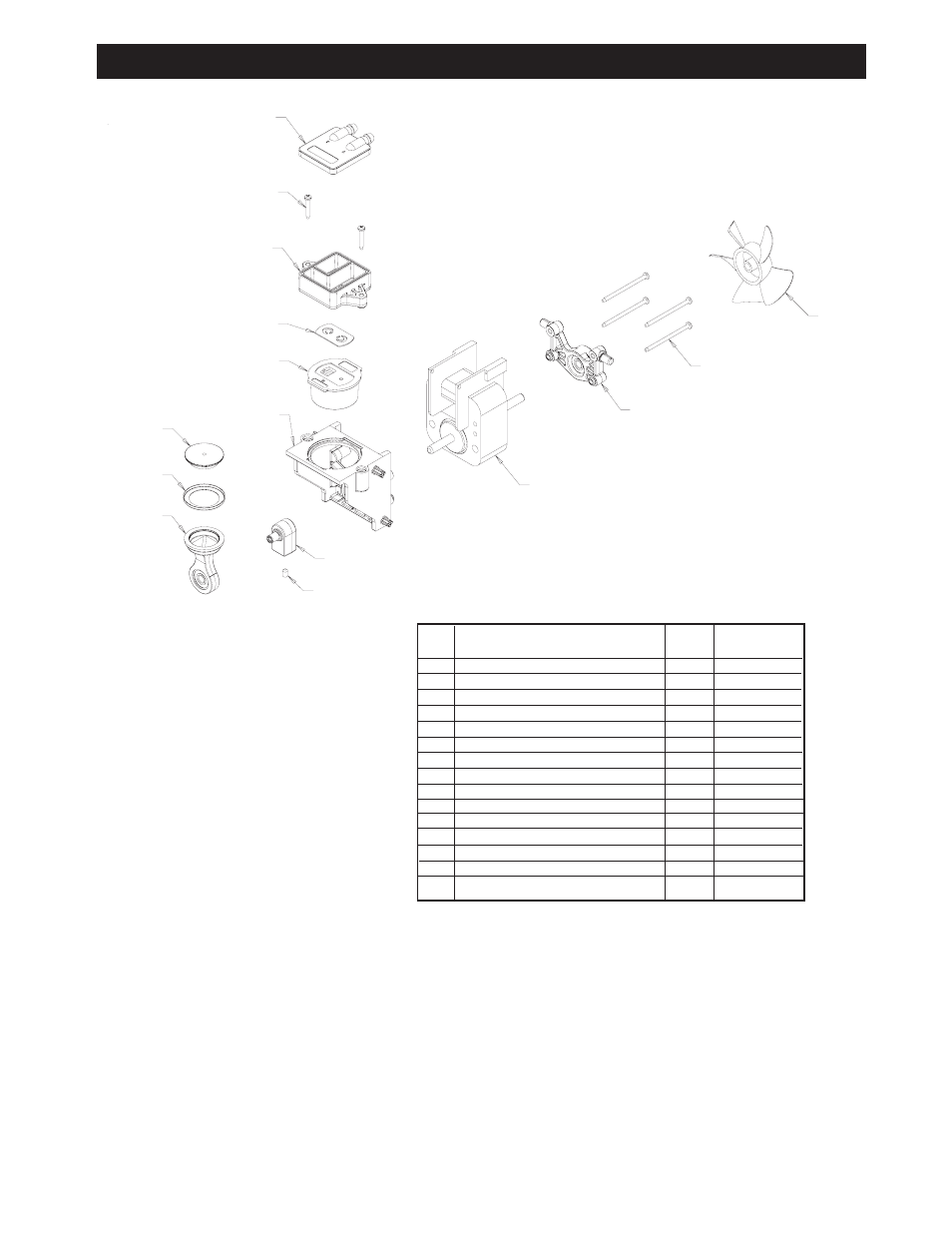

EXPLODED PRODUCT VIEW, PARTS & ORDERING INFORMATION

Parts listed are for stock models. For specific OEM models,

please consult the factory.

When corresponding or ordering parts, please give complete

model and serial numbers.

* Consult factory before ordering

REF DESCRIPTION

QTY

20R

1

RETAINER PLATE

1

RPL1007

2

CUP

1

CUP1002

3

CONNECTING ROD

1

CNR1010

4

HEAD

1

HDC1013

5

HEAD SCREWS

2

BB937

6

VALVE PLATE

1

VPL1011

7

VALVE

1

VLV1016

8

CYLINDER

1

CYL1000

9

FRONT BRACKET

1

BKT1016

10 *

CRANK

1

CRK1000

11

CRANK SET SCREW

1

BB936

12 *

MOTOR

1

MTR1090

13

REAR BRACKET

1

BKT1017

14 *

MOTOR BOLTS

4

BB938

15 *

FAN

1

ACC1162

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15
