REF DESCRIPTION QTY PART # PART #
NO. 6066-P102 6066-V103
1 BODY 1 AC309 AC309
2 DRIVE END PLATE 1 AE293 AE293
3 DEAD END PLATE 1 AE294 AE294
4 ROTOR ASSEMBLY 1 AE295A AE295A
5 ∆ VANE 4 AK738 AK738
6 ∆ BEARING 2 AB964B AB964B
7 BEARING SHOULDER RING 2 AB926T AB926T
8 BELLEVILLE SPRING 2 AB791 AB791
9 SHIM WASHER 1 AB792 AB792
10 RETAINING RING 1 AB793 AB793
11 END CAP 1 AB790 AB790
12 FAN 2 AL443 AL443
14 SQUARE KEY 2 AB136A AB136A
15 SHROUD 2 AE300A AE300A
16 FAN GUARD ASSM, DRIVE 1 AK736 AK736
17 IFAN GUARD ASSM, DEAD 1 AK737 AK737
18 INTAKE FILTER ASSEMBLY 1 AD560 AD560
19 MUFFLER ASSEMBLY 1 - AD560C
20 ∆ COVER GASKET 1 AD562
2 AD562
21 JAR 1 AD563A
2 AD563A
22 FILTER ELEMENT ASSEMBLY 1 AD750
2 AD750
23 ∆ FILTER FELT 1 AD752
2 AD752
24 BODY SPACER 1 AE315B
2 AE315B
25 KEY, COUPLING 1 AE136D AE136D
26 COUPLING ASSEMBLY 1 AE765 AE765
27 CHECK VALVE (NOT SHOWN) 1 AH326B AH326B
*** SERVICE KIT (NOT SHOWN) 1 K503 K503
∆ Denotes parts in the service kit.
Parts listed are for stock models.
For specific OEM models, contact
the factory.
When corresponding or ordering
parts, please give complete model
number and serial number.

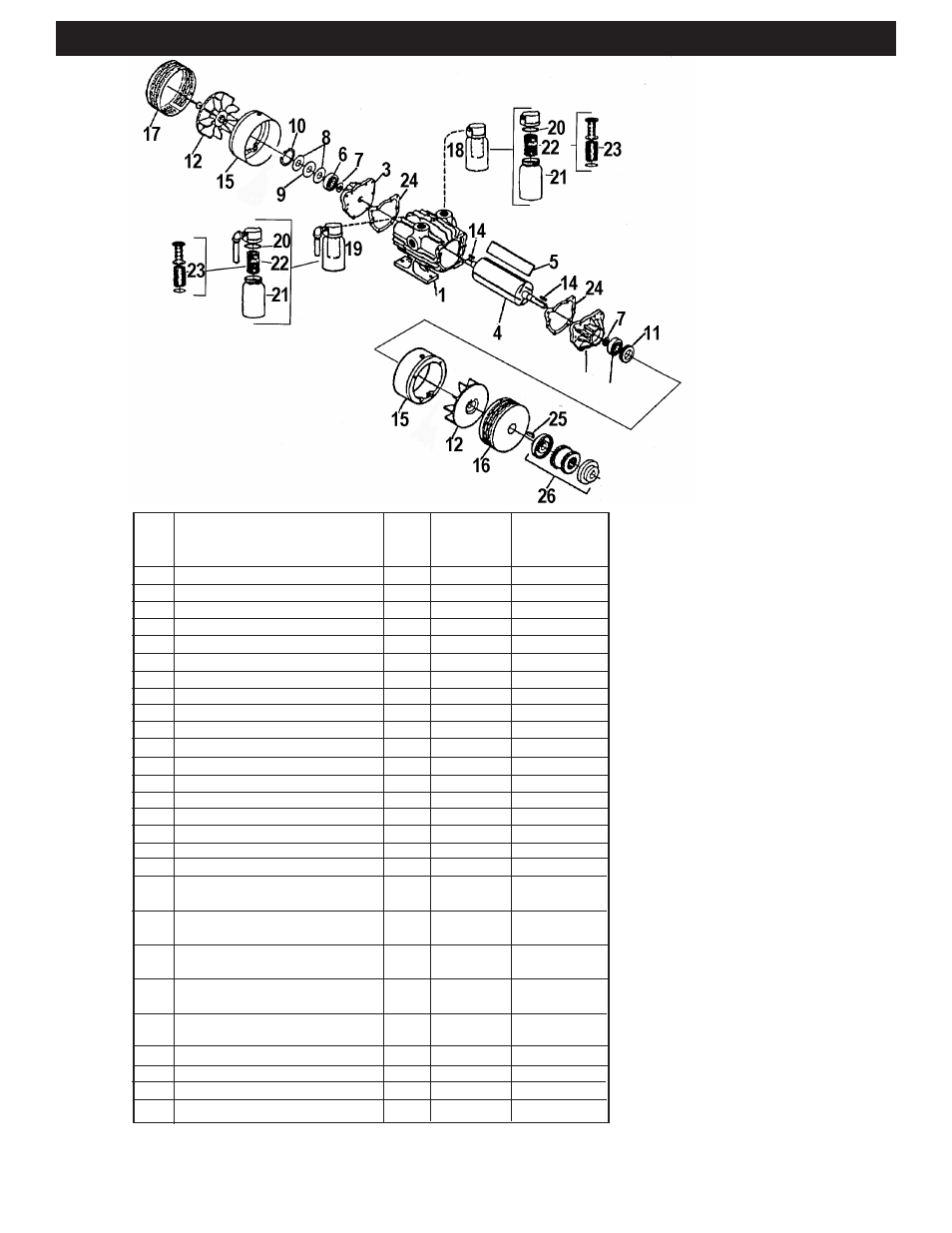

EXPLODED VIEW AND PARTS ORDERING INFORMATION
6
