StarStrobe™ Remote model may have been
selected for its precise starts and stops or for
programming chase sequences. If you have
a Remote Control Model of the StarStrobe™,
either single or double head unit, you will find an
additional pair of wires with a bare lead com-
ing from the StarStrobe™. You will need any 6 to
24 Volt DC signal to close the relay and trigger
the StarStrobe™.(9 Volt battery will do.) You may
start the StarStrobe™ on a precise cue and it will
continue flashing until you stop it at a precise cue.
You will need to supply a DC control signal for
the StarStrobe™ Remote to operate. GAM makes
a GLC-12 Channel Chase which puts out a 12
Volt DC signal to control the StarStrobe™ Remote.
You will also need to plug the StarStrobe™ Remote
into 120 Volt AC (or 230 V AC) power supply
depending on your choice of model. When the
unit is powered the capacitor will charge but will
not fire until the control signal is given (anywhere
from 6 to 24 V DC).

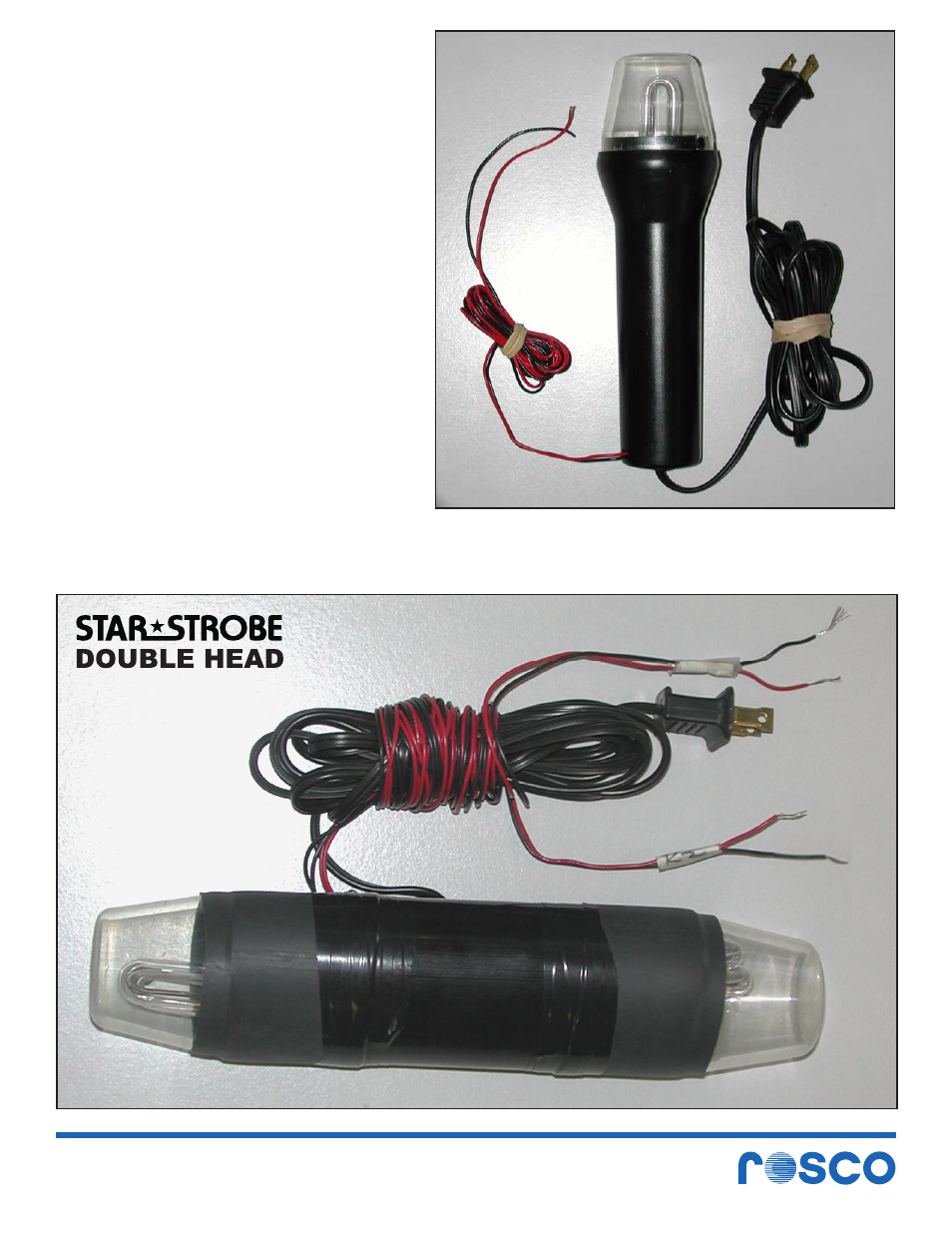

For the StarStrobe™ Double Head model, all functions are the same as above except that there are two sets of xenon
lamps with a pair set on each end. There is a single AC power input and a single pair of remote control wires.
AC POWER INPUT
DC CONTROL WIRE
DC CONTROL WIRE
DC CONTROL WIRE
