CorruBracket ™ is extremely versatile. It can be used for almost
any attachment need on 7/8" and 3/4" corrugated metal roofing.
No messy sealants to apply. The factory-applied butyl sealant
waterproofs and makes installation a snap!

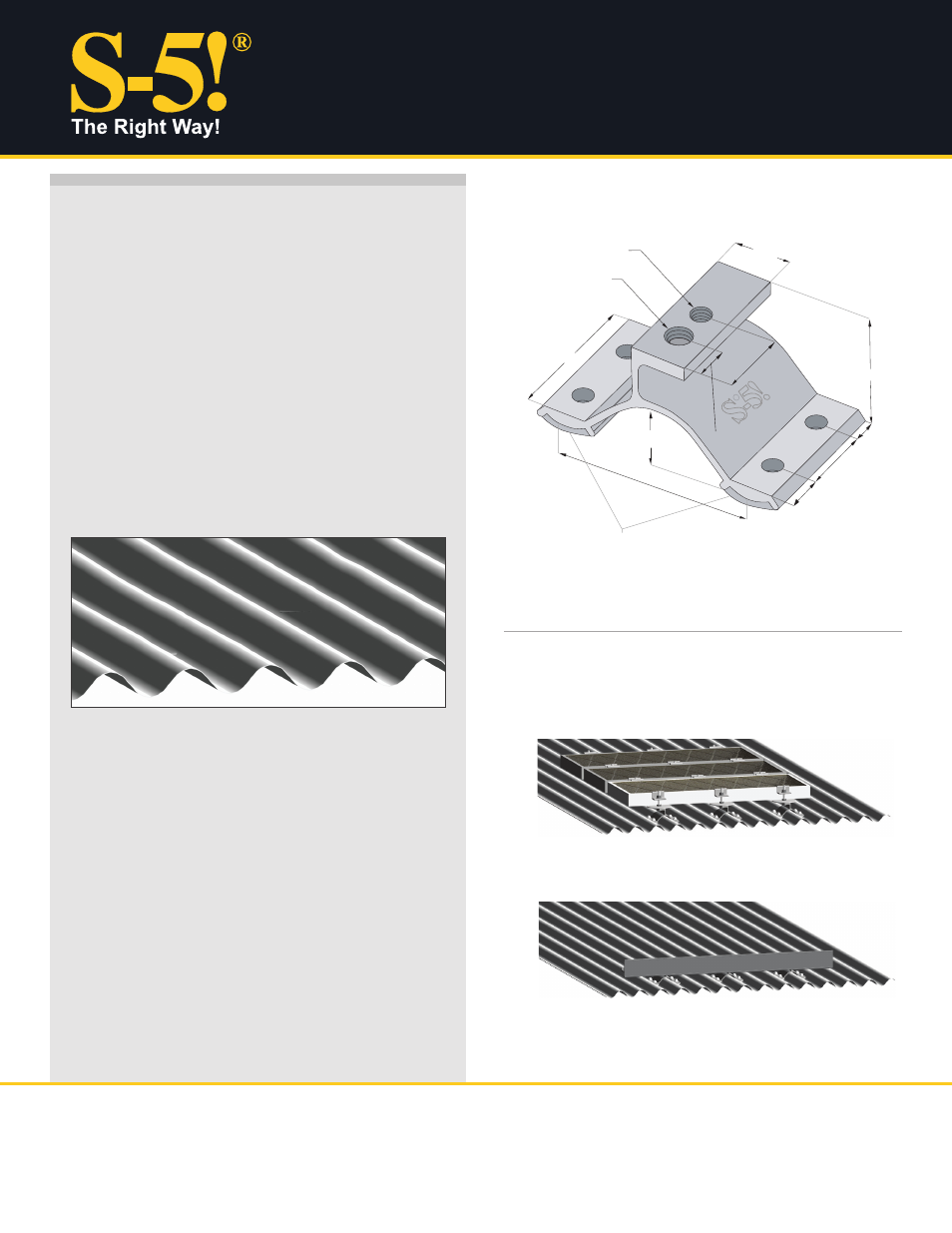

CorruBracket ™
Please note: All measurements are rounded to the second decimal place.
Contact your distributor for information about hardware requirements.
R
M8-1.25 Threaded Hole
Factory-Applied Butyl
0.77"
(20.00 mm)
1.68"
(43.00 mm)
0.50"
(13.00 mm)
1.00"
(25.00 mm)
1.00"
(25.00 mm)
0.50"
(13.00 mm)
0.50"
(13.00 mm)
2.67"
(68.00 mm)
0.83"
(21.00 mm)
2.00"
(51.00 mm)
M10-1.5 Threaded Hole
S-5-PV Kit (DirectAttached ™ or Rail)
ColorGard ®
Example Applications
Each CorruBracket™ comes with factory-applied butyl
sealant in the base. CorruBracket is compatible with most
common metal roofing materials. For design assistance,
ask your distributor, or use our web-based calculator at
www.S-5.com for job-specific system engineering and
design of your next snow retention project. Also, please
visit our website for more information including CAD
details, metallurgical compatibilities and specifications.
The CorruBracket has been tested for load-to-failure
results on wood decking, and metal and wood purlins.
The independent lab test data found at www.S-5.com can
be used for load-critical designs and applications. S-5!®
holding strength is unmatched in the industry.
Example Profile
