Solo Whistle Installation Guide

Installation

MAN-SOLWHIIG (Ver. 1.503)

www.elmomc.com

34

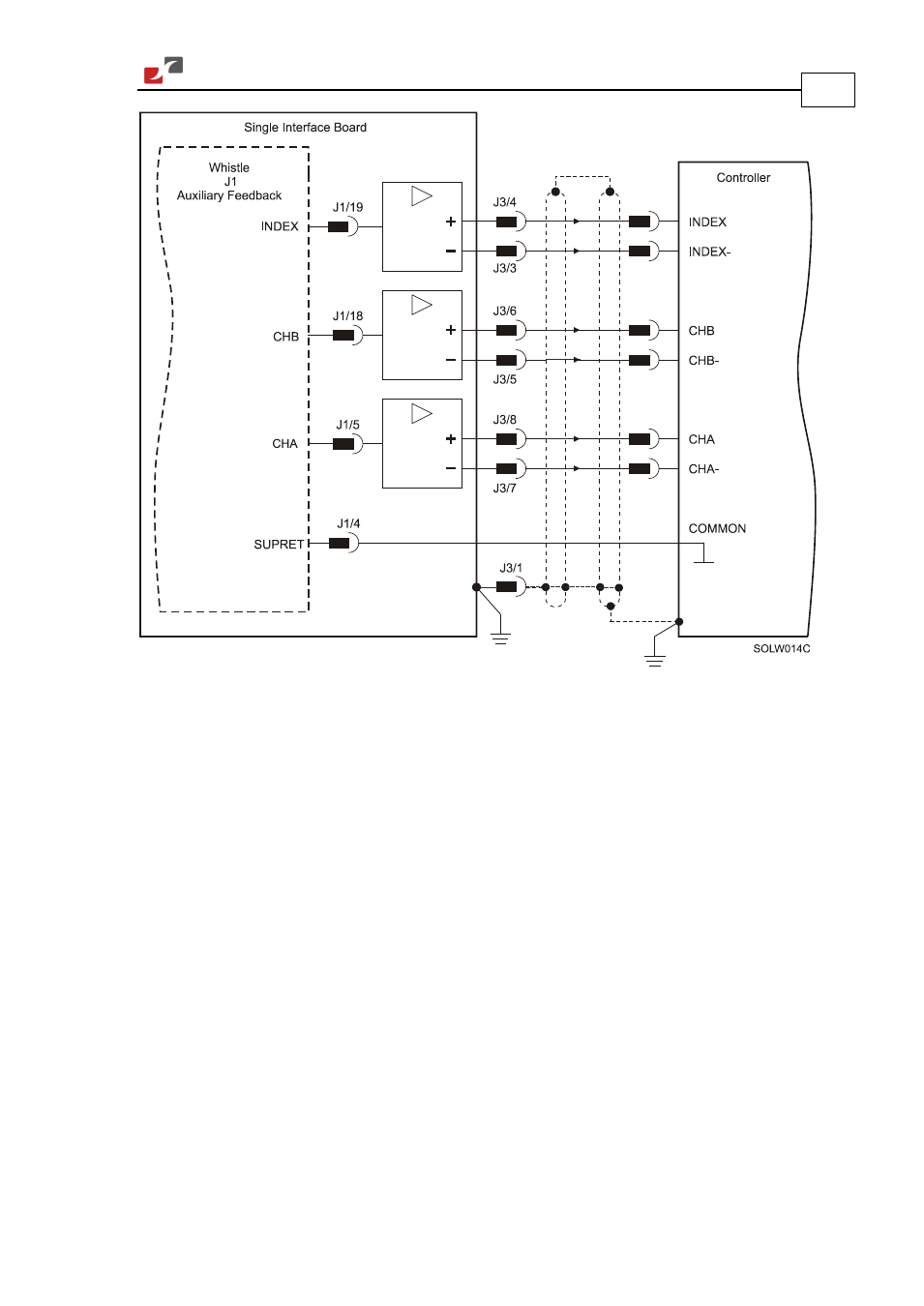

Figure 14: Emulated Encoder Differential Output Diagram
